InSight™ IR Portholes Overview

The National Fire Protection Agency (NFPA-70E) provides stringent guidelines for wearing Personal Protective Equipment (PPE) when the deadfront is open and the operator is exposed to live bus. The use of IR Scan Portholes allow the operator to leave deadfronts closed during the IR Scan operation.

InSight™ IR Portholes are openings in LayerZero units with hinged covers for ease of thermal scanning of all bolted connections. Thermal scanning bolted connections is a common procedure for preventive maintenance.

The covers of InSight™ IR Portholes swivel outward to reveal a mesh. The mesh helps protect operators, while ensuring full functionality of thermal scanning ability. The usage of InSight™ IR Portholes makes it safer for operators to measure bolted connections.

InSight™ IR Portholes Interactive Demo

Select the InSight™ IR Portholes to view sample IR Scans.

400 A eSTS Static Transfer Switch IR Portholes Interactive Demo Phase-A Selected Phase-B Selected Phase-C Selected Output Selected Source 1 Selected Source 1 Selected Source 1 Selected Source 2 Selected Source 2 Selected Output Selected Output Selected Phase A
Static Switch Assembly Thermal Scan:
Phase A heat-sink connections

Phase B
Static Switch Assembly Thermal Scan:
Phase B heat-sink connections

Phase C
Static Switch Assembly Thermal Scan:
Phase C heat-sink connections

Output
Static Switch Assembly Thermal Scan:
Output connections

Source 1 Thermal Scan
Source 1 Thermal Scan:
• Input Terminal lugs
• Input Molded Case Switch Line-side lugs
• Output Terminal lugs

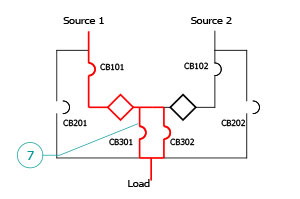

Source 1 Thermal Scan
Source 1 Thermal Scan:
• Input Molded Case Switch Load-side lugs
• Bypass Molded Case Switch Line-side lugs

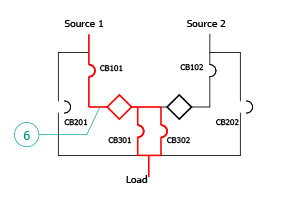

Source 1 Thermal Scan
Source 1 Thermal Scan:
• Output Molded Case Switch 1 Line-side lugs

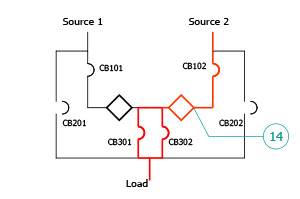

Source 2 and Output Thermal Scan
Source 2 and Output Thermal Scan:
• Input Terminal lugs
• Input Molded Case Switch Line-side lugs
• Output Terminal lugs

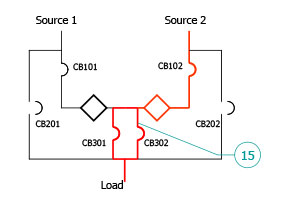

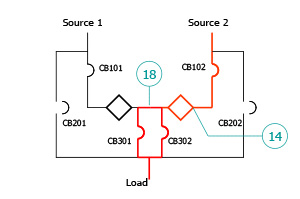

Source 2 and Output Thermal Scan
Source 2 Thermal Scan:
• Input Molded Case Switch Load-side lugs
• Bypass Molded Case Switch Line-side lugs

Output Thermal Scan
Output Thermal Scan:
• Output Molded Case Switch 2 Line-side lugs

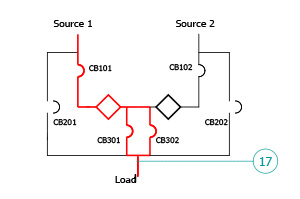

Output Thermal Scan
Output Thermal Scan:
• Output Molded Case Switch 2 Load-side lugs
