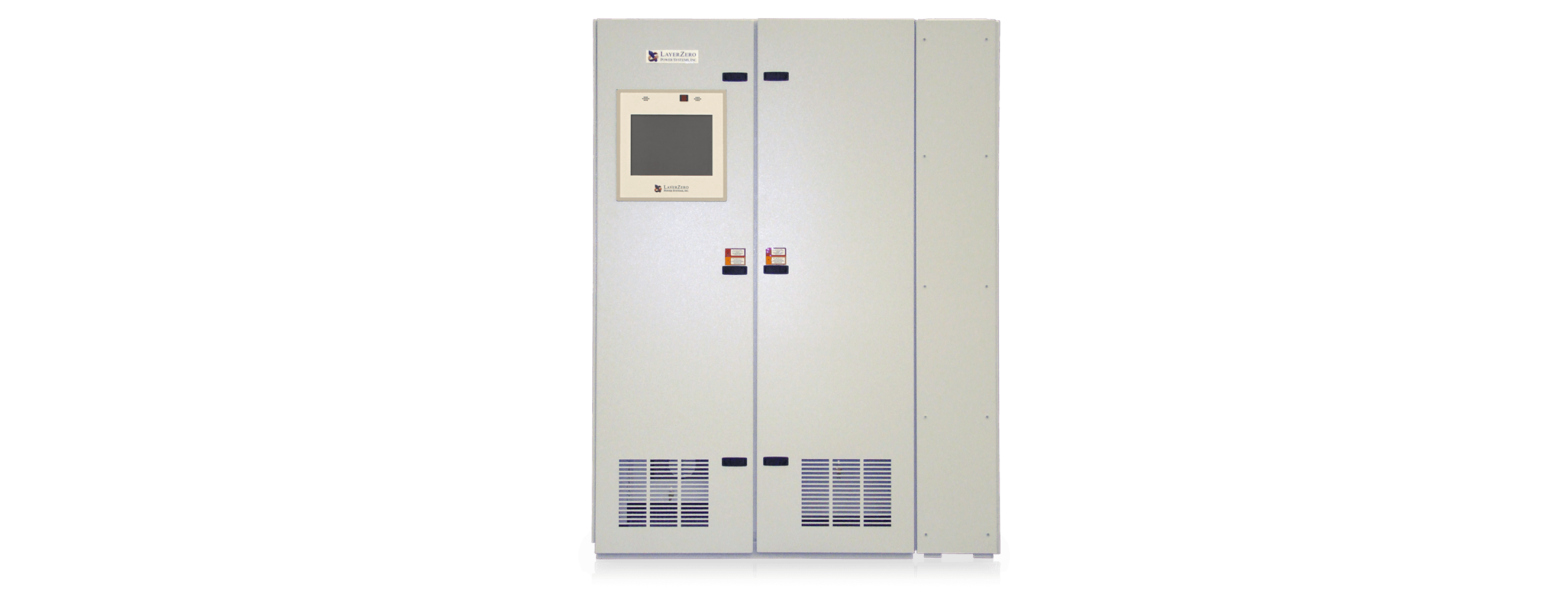

Series 70 ePODs: Type-N

The Series 70: ePODs Type-N is a web-enabled Power Distribution Unit (PDU) containing a Static Transfer Switch With Distribution. The Series 70: ePODs Type-N is a MIMO Configuration (Multiple Inputs, Multiple Outputs), accepting two or three inputs and up to twelve subfeed circuit breakers.

ePODs: Type-N PDU with Mimic

ePODs: Type-N Product Overview

The Series 70 ePODs: Type-N Power Distribution Unit contains a Static Transfer Switch with Subfeed Distribution.

ePODs: Type-N PDU with Mimic
Select a Section to Highlight:

Reliability, Safety, Convenience, and Monitoring Features

Connectivity Options

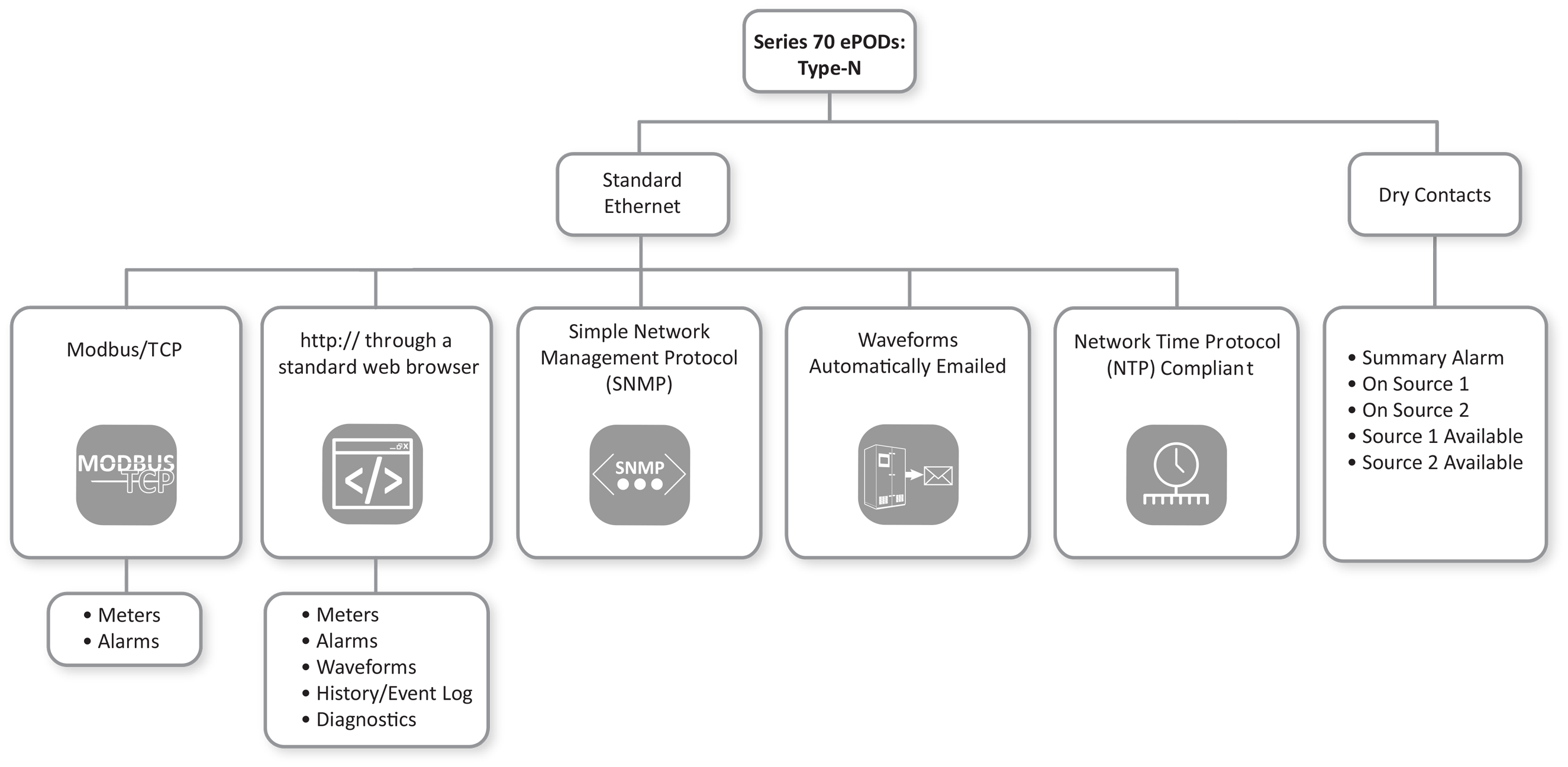

eSTS Connectivity

Series 70 ePODs: Type-N Technical Specifications

ePODs: Type-N Models with Withstand Ratings
  120/208 V 480 V; 480/277 V; 415/240 V; 400/230 V; 380/220 V 600 V; 575 V
150 A 200kAIC; 150kAIC; 100kAIC; 65kAIC 150kAIC; 100kAIC; 65kAIC; 35kAIC; 25kAIC 100kAIC; 65kAIC; 35kAIC; 25kAIC; 18kAIC
225 A 150kAIC; 100kAIC; 65kAIC 65kAIC; 50kAIC; 25kAIC
250 A 200kAIC; 150kAIC; 100kAIC; 65kAIC 150kAIC; 100kAIC; 65kAIC; 35kAIC; 25kAIC 100kAIC; 65kAIC; 35kAIC; 25kAIC; 18kAIC
400 A
600 A
800 A 200kAIC; 100kAIC; 65kAIC
100kAIC; 65kAIC; 50kAIC; 35kAIC
42kAIC; 35kAIC; 25kAIC; 20kAIC
1000 A 150kAIC; 100kAIC; 65kAIC 100kAIC; 65kAIC; 50kAIC 65kAIC; 50kAIC; 25kAIC
1200 A

ePODs: Type-N Brochure Download
