Series 70 ePODs: Dual Type-P

The Series 70: ePODs Dual Type-P is a web-enabled Power Distribution Unit (PDU) with a Static Transfer Switch On The Primary Side Of Two Transformers With Distribution. The Series 70: ePODs Dual Type-P is a MIMO Configuration (Multiple Inputs, Multiple Outputs), accepting two or three inputs and up to twenty-four subfeed circuit breakers.

ePODs: Dual Type-P Product Overview

The Series 70 ePODs: Dual Type-P Power Distribution Unit contains a Static Transfer Switch,Two Transformers, with Two Subfeed Distribution Sections.

ePODs: Type-P PDU with Mimic
Select a Section to Highlight:

ePODs: Dual Type-P 360 Product View

Select to Download VR Assets

Reliability, Safety, Convenience, and Monitoring Features

Connectivity Options

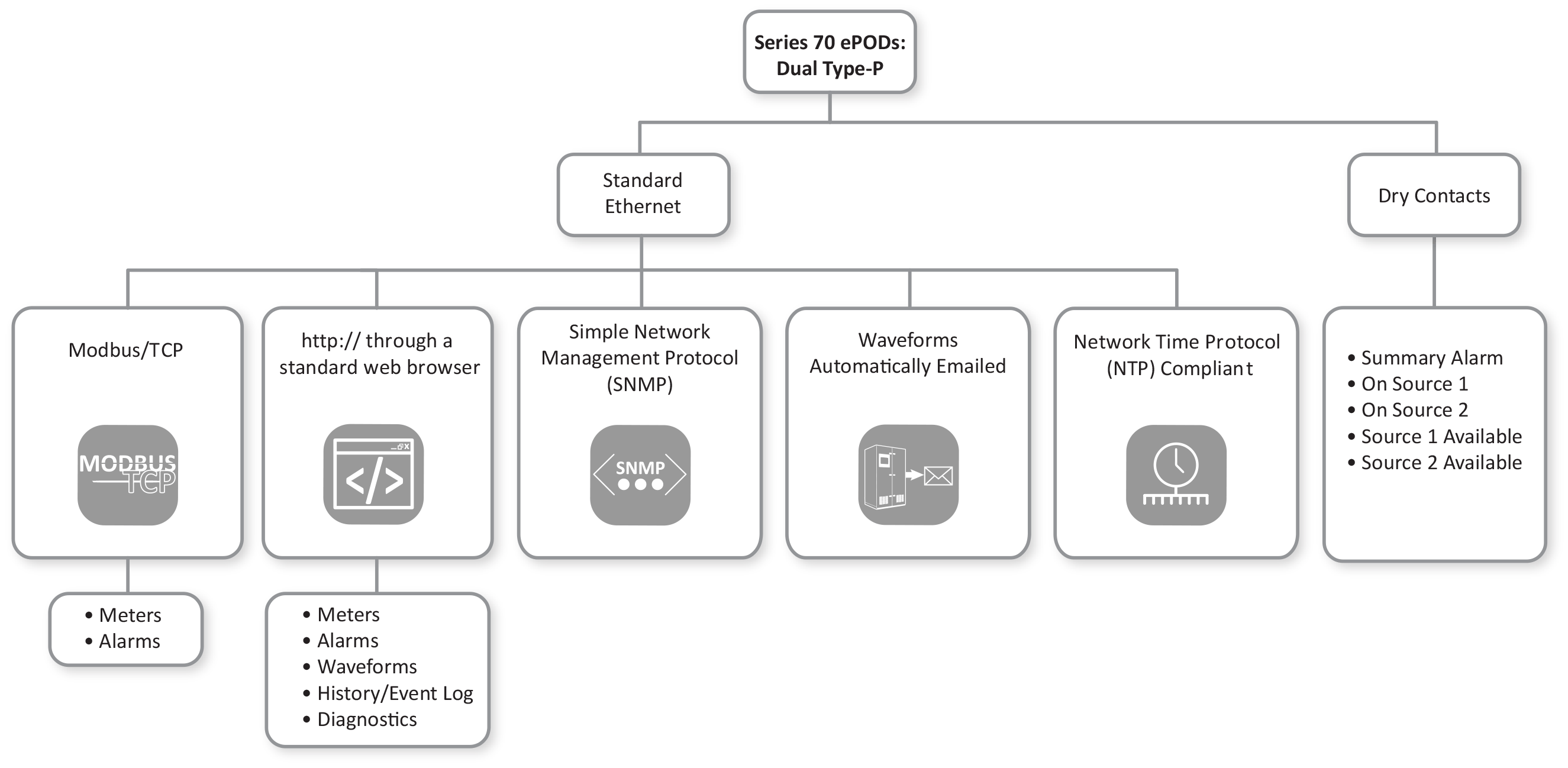

Dual-Type-P Connectivity

Series 70 ePODs: Dual Type-P Technical Specifications

ePODs: Dual Type-P Models with Withstand Ratings
  480 V 575 V 600 V
225 A 65kAIC; 50kAIC; 25kAIC
250 A 150kAIC; 100kAIC; 65kAIC; 35kAIC; 25kAIC 100kAIC; 65kAIC; 35kAIC; 25kAIC; 18kAIC
400 A
600 A
800 A 100kAIC; 65kAIC; 50kAIC; 35kAIC
42kAIC; 35kAIC; 25kAIC; 20kAIC



Mechanical Characteristics
Dimensions: 154"W x 80"H x 36"D

ePODs: Dual Type-P Virtual Tour

ePODs: Dual Type-P Brochure Download
