Series 70 ePODs: Type-maX

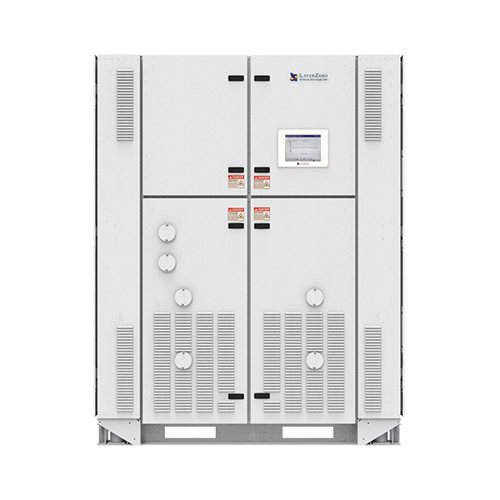

The Series 70: ePODs Type-maX is a web-enabled 300 kVA, 400 kVA, and 500 kVA Industrial Load Center containing a Transformer and SafePanel Distribution. The Series 70: ePODs Type-maX is a SIMO Configuration (Single Input, Multiple Outputs), consisting of primary bulk distribution, secondary bulk distribution, and secondary branch circuit panel distribution. Designed for industrial operations that want to maximize the utilization of available space, the Series 70 ePODs: Type-maX is truly an all-in-one PDU. The Series 70 ePODs: Type-maX is ideal for applications with limited wall space that require high-reliability primary, secondary, and branch-level power distribution.

Tap to Interact
0%

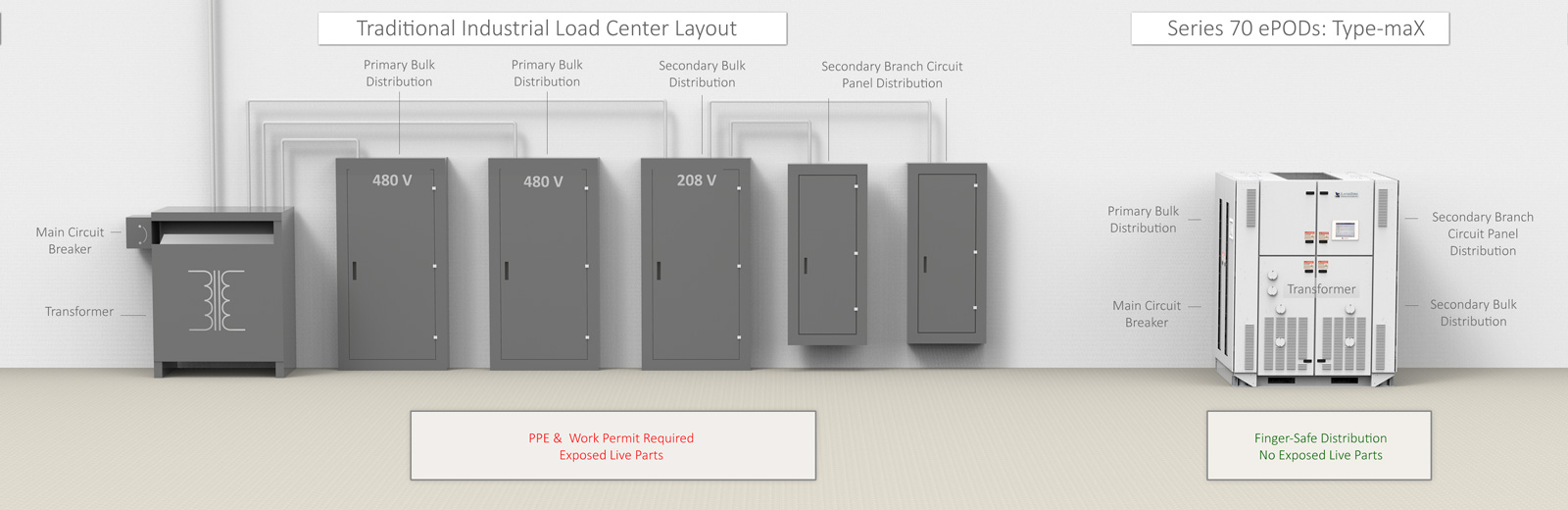

Industrial Load Center Comparison

Industrial Load Centers have historically required a large amount of wall space. In addition, it takes a lot of work and time to coordinate the purchasing of separate panels and transformers and interconnecting the individual pieces with conduit. Furthermore, the inclusion of power quality monitoring for each of the components required very expensive power quality analyzers, as well as numerous Ethernet connections to network these components. These components have traditionally contained exposed live parts, requiring bulky PPE and work permits to safely add capacity without shutting down.

Series 70 ePODs: Type-maX changes this paradigm with an all-in-one solution that integrates primary bulk distribution, secondary bulk distribution, and secondary branch circuit distribution with built-in power quality analyzers. The Series 70 ePODs: Type-maX utilizes the finger-safe SafePanel? panel board, and has no exposed live parts.

Industrial Load Center Comparison

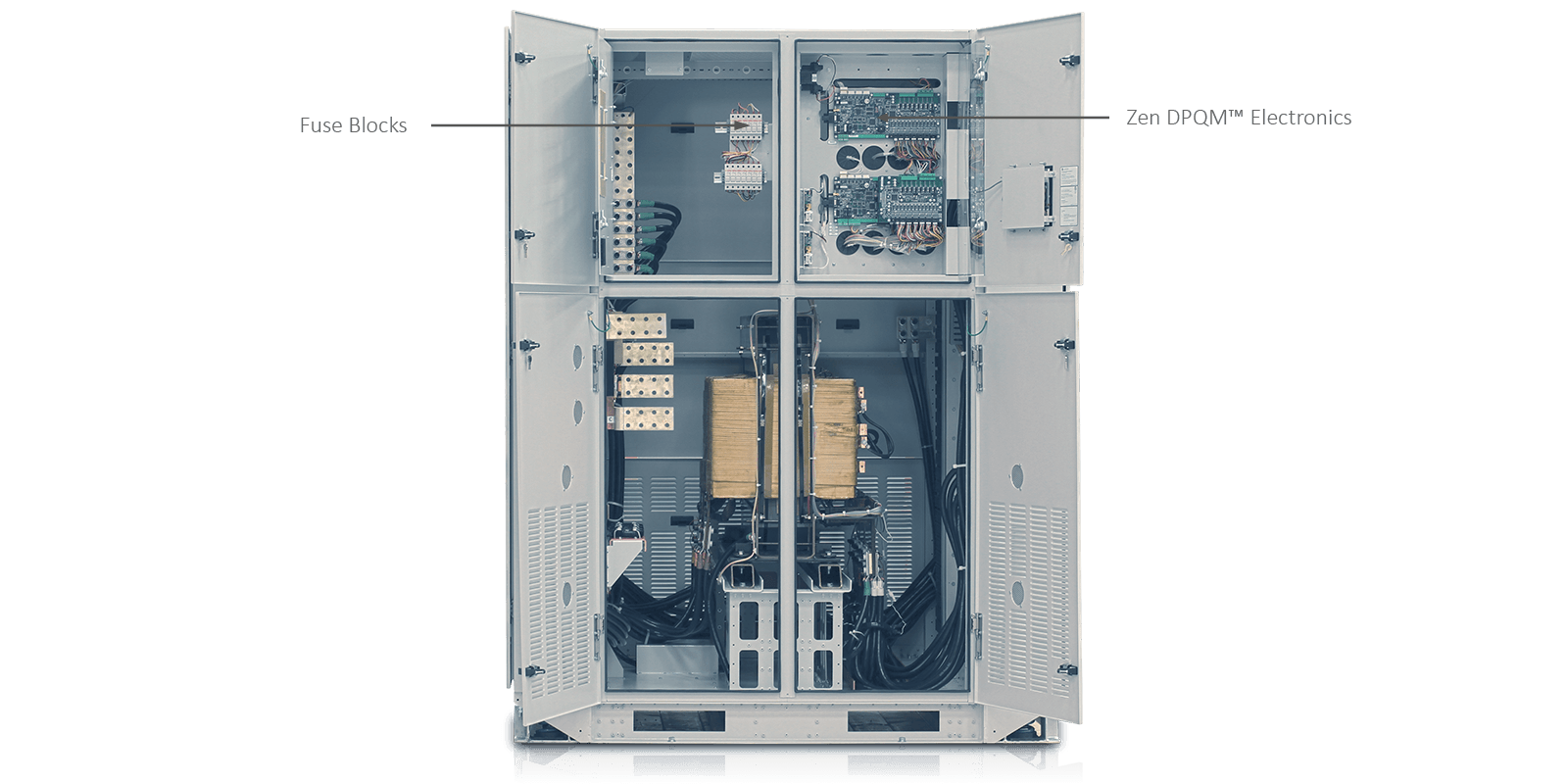

Type-maX Mechanical Overview

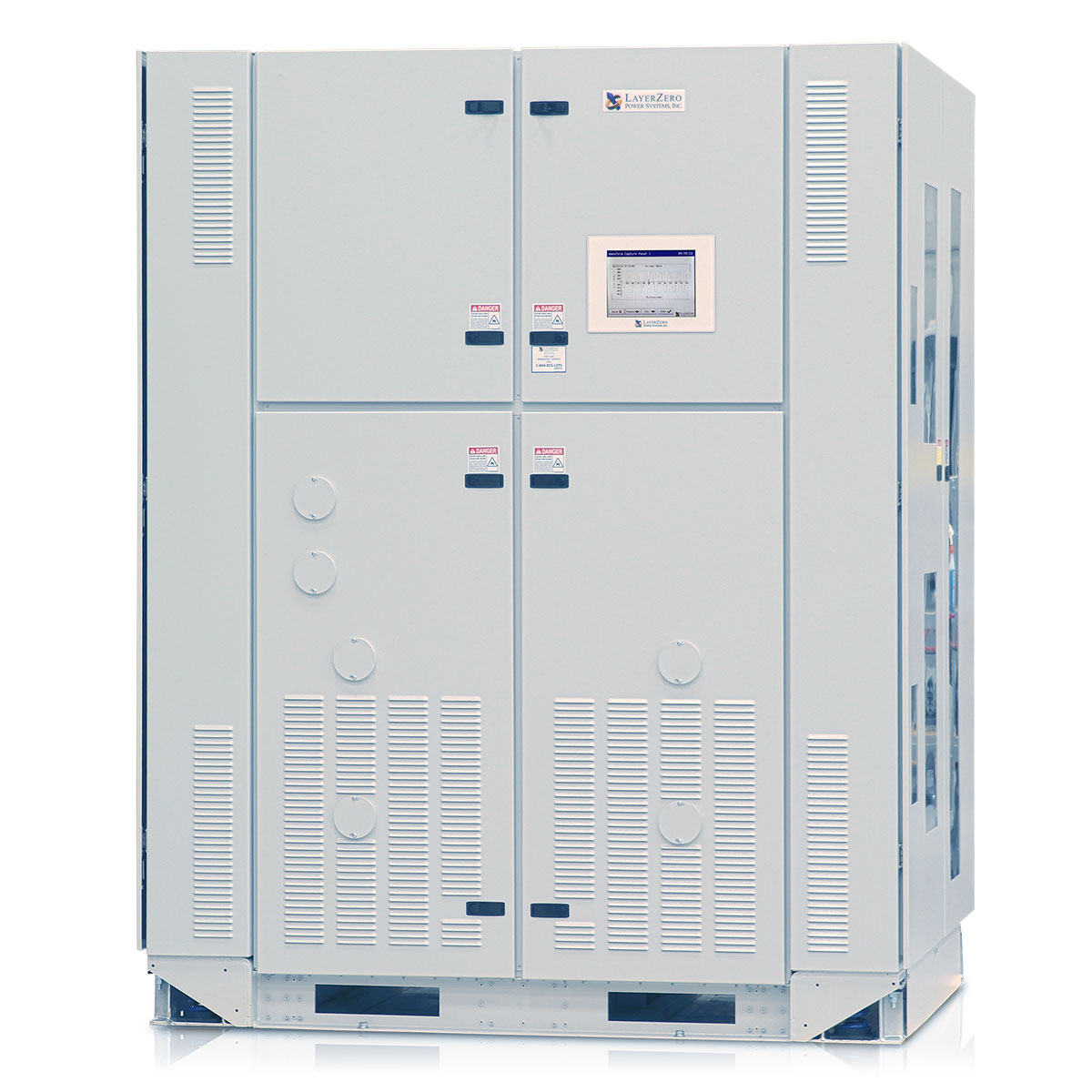

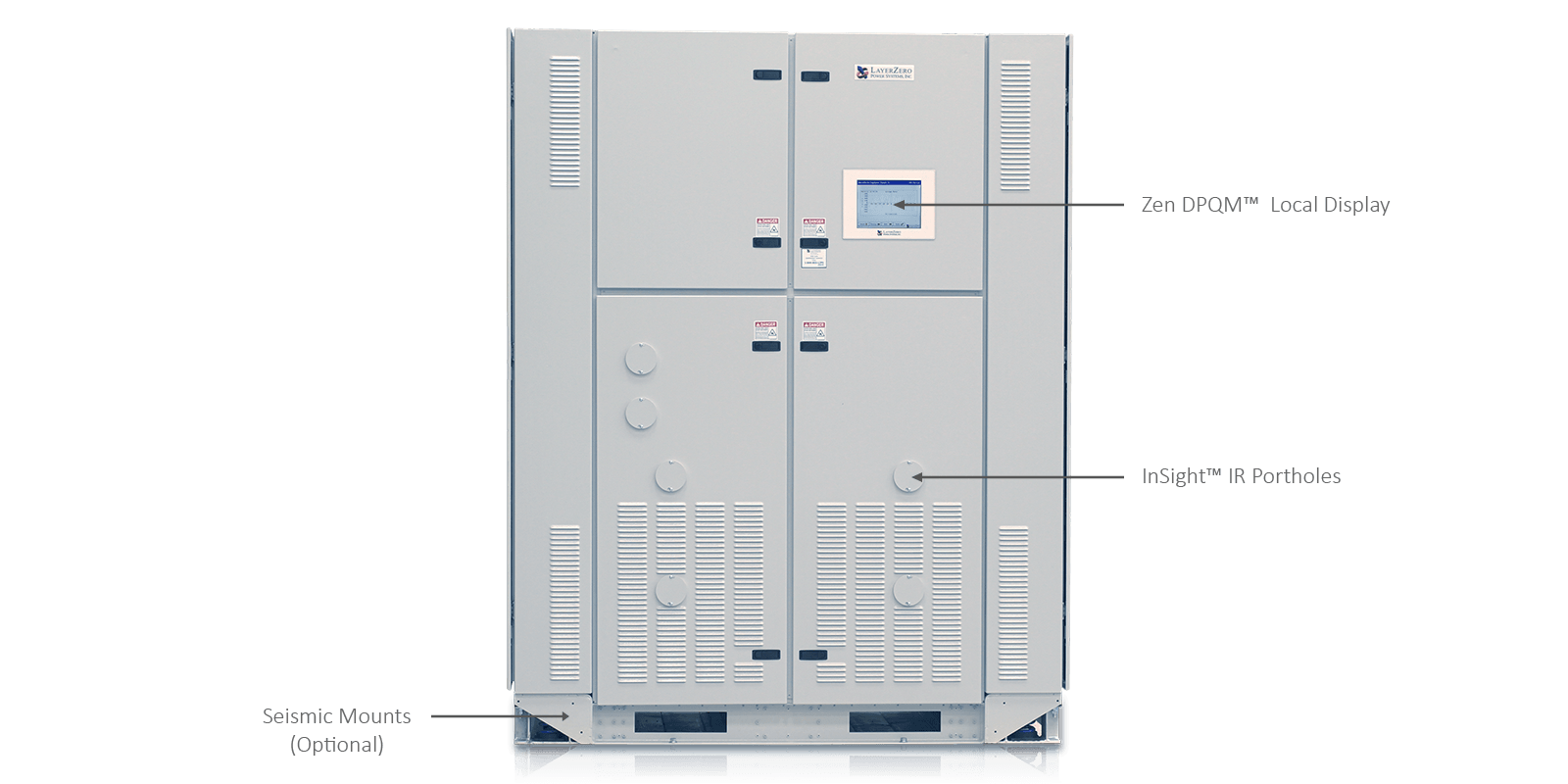

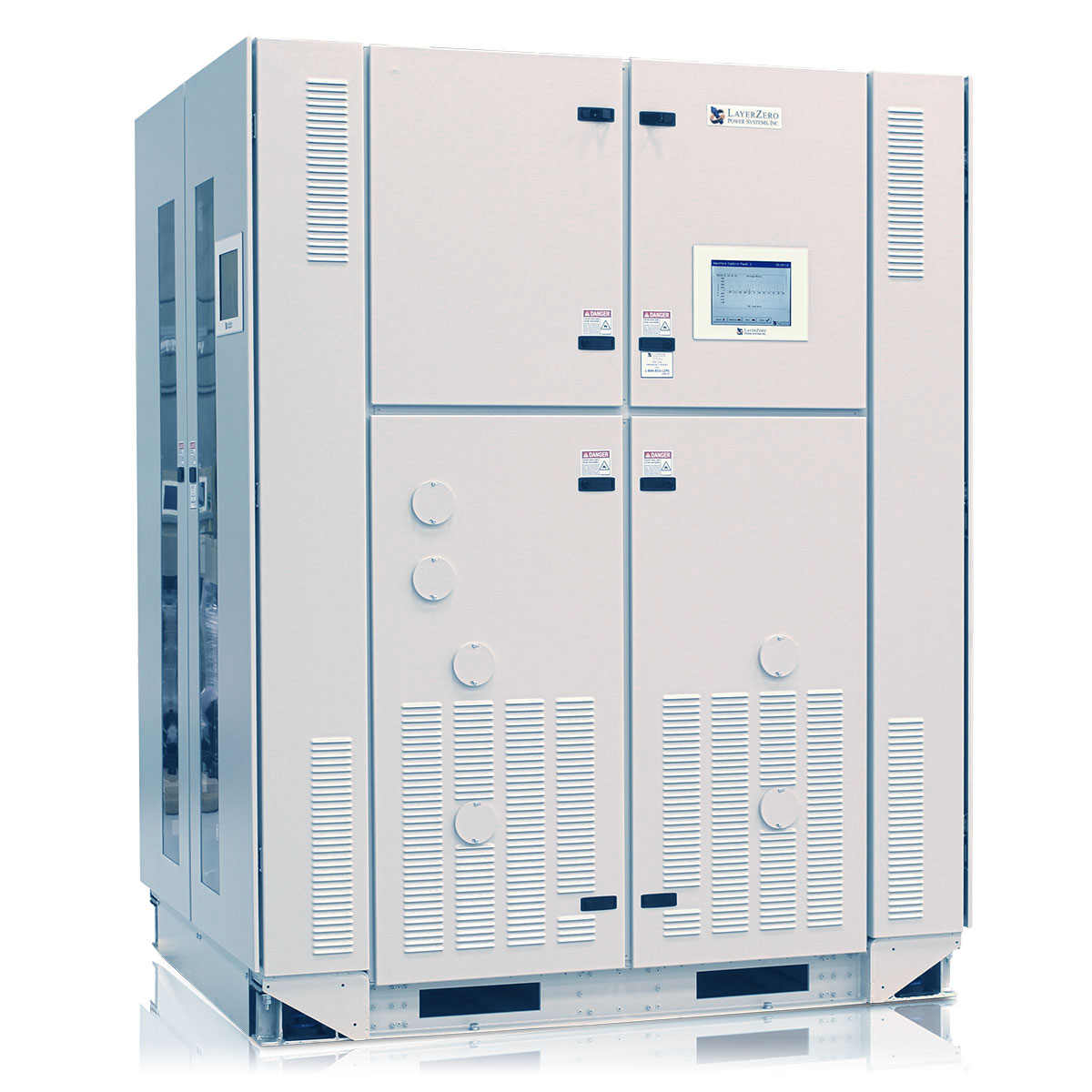

ePODs Type-XL Power Distribution Unit with Transformer and Distribution Doors Closed

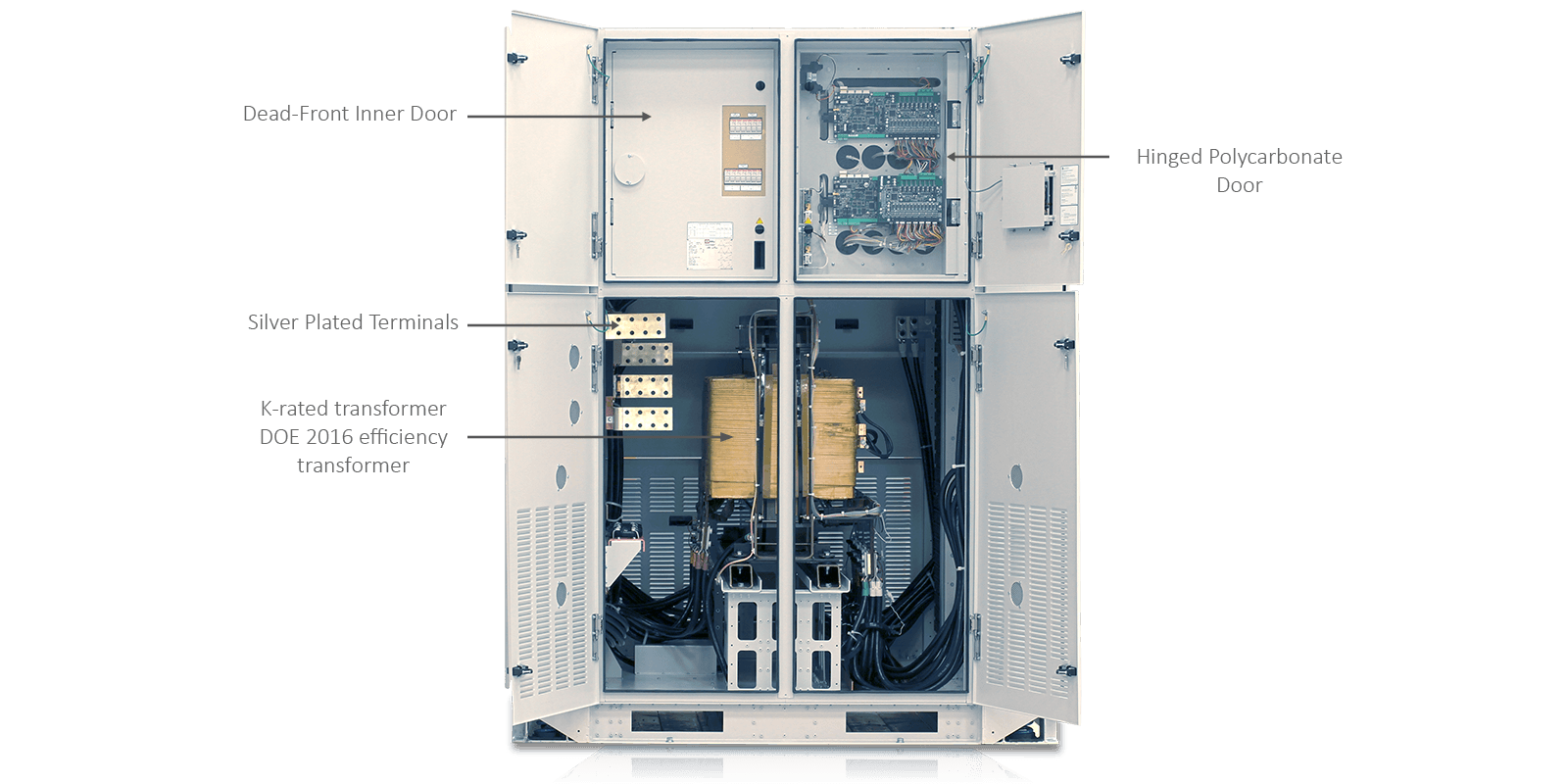

ePODs Type-XL PDU Front with Outer Doors Open
ePODs Type-XL PDU with Dead Front Doors Open

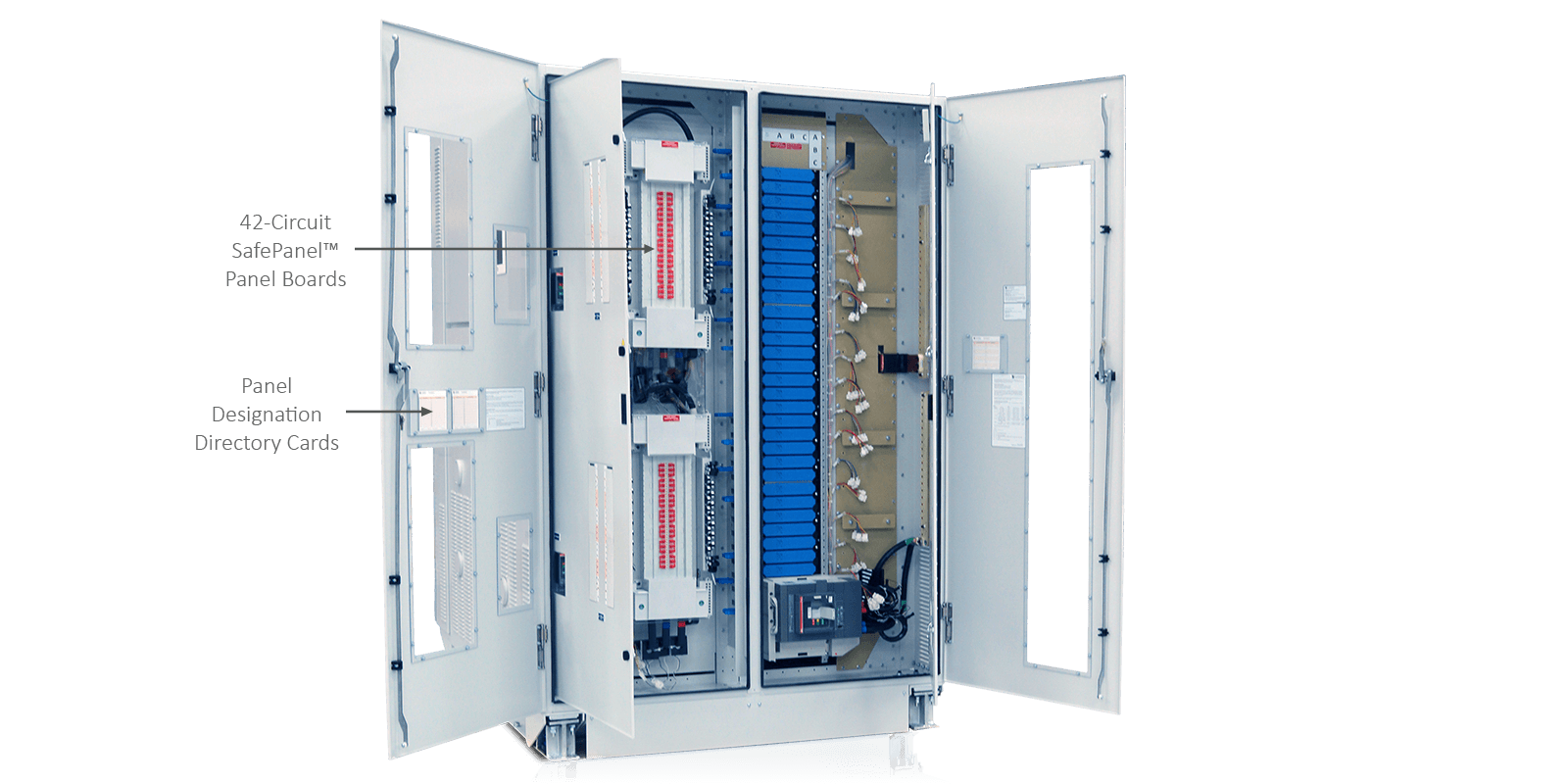

ePODs Type-XL PDU Distribution Section Doors Open
ePODs Type-XL PDU Distribution Section Inner Doors Open

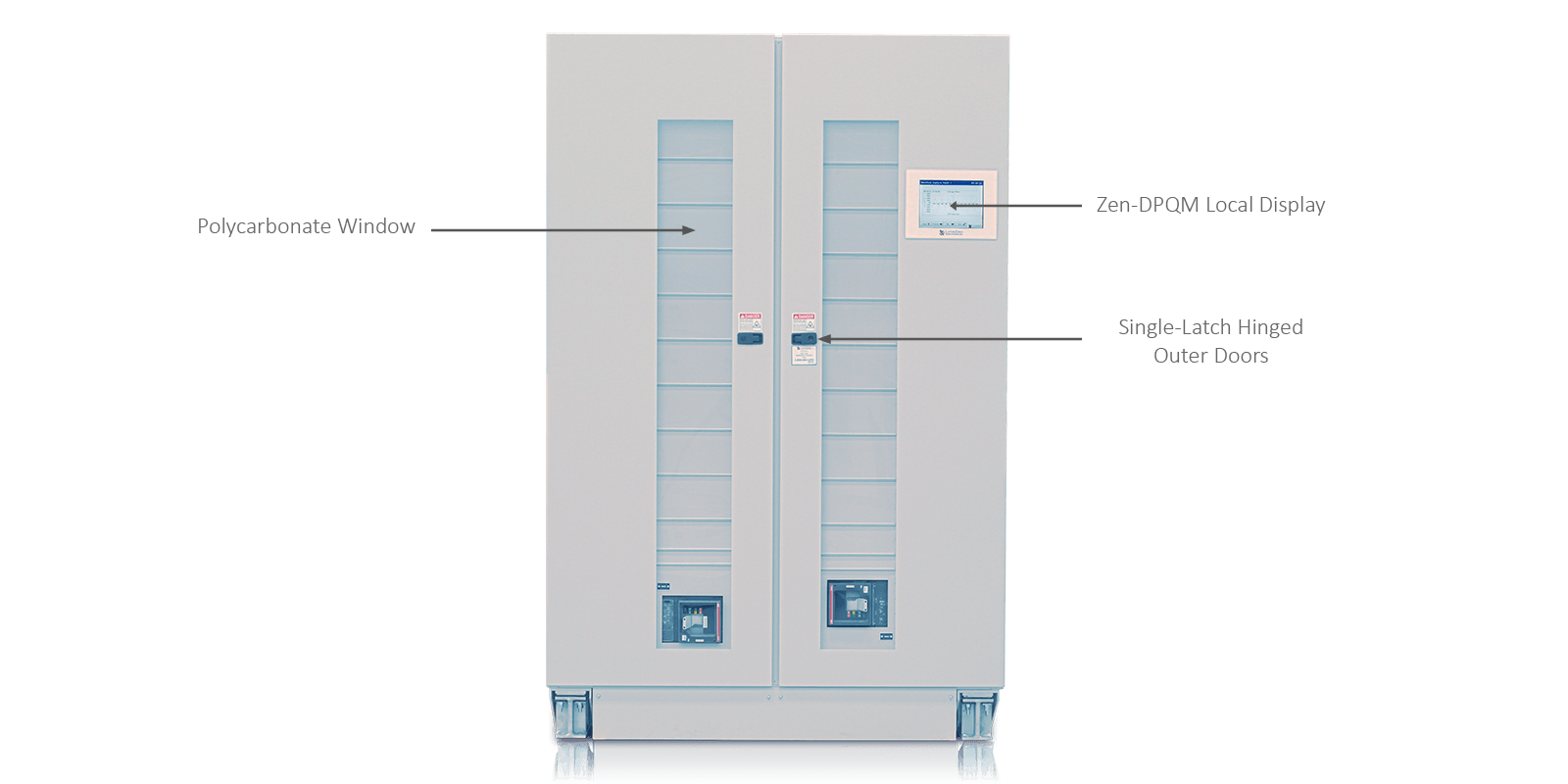

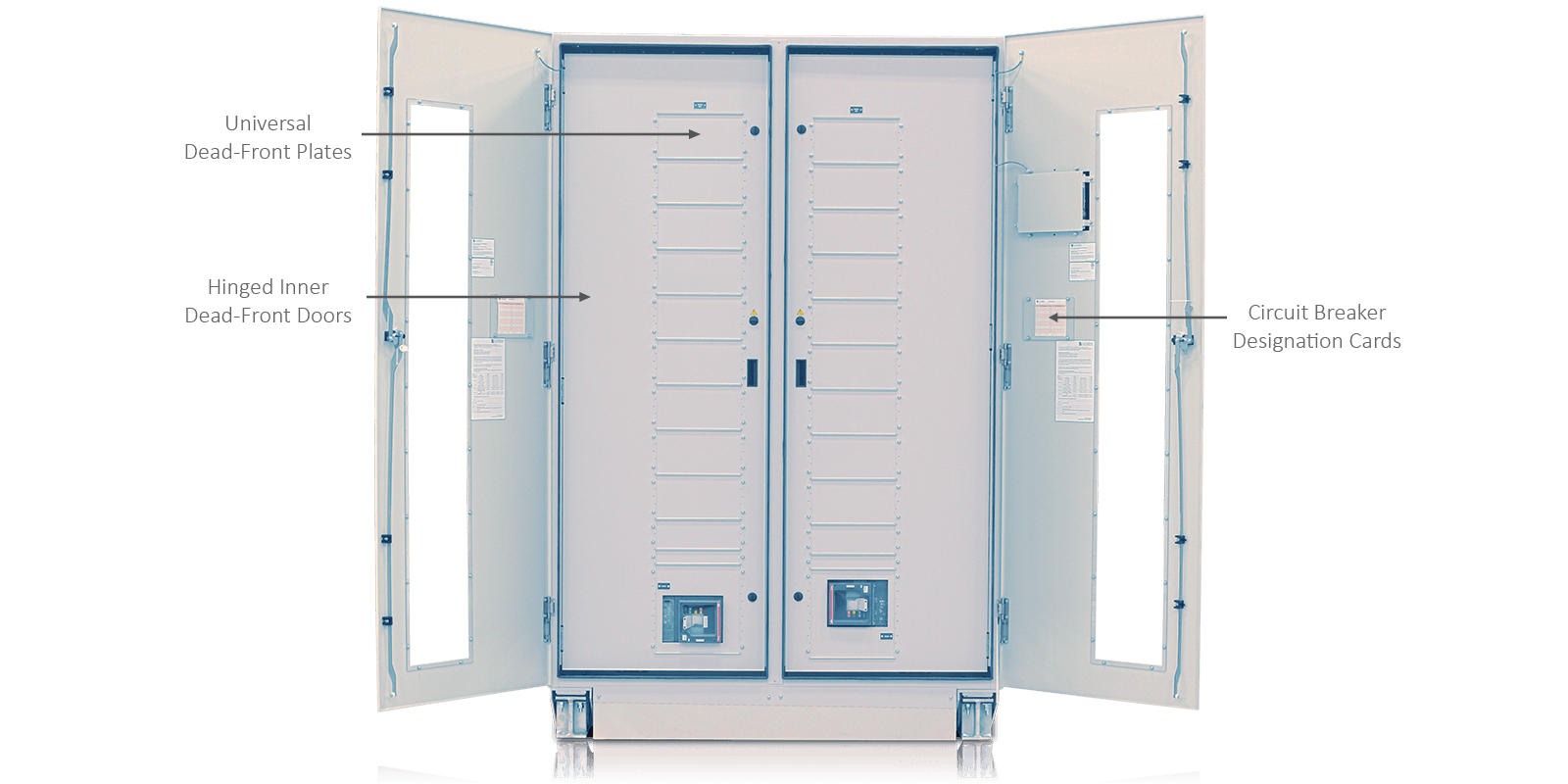

ePODs Type-XL PDU Subfeed Section Outer Doors Open

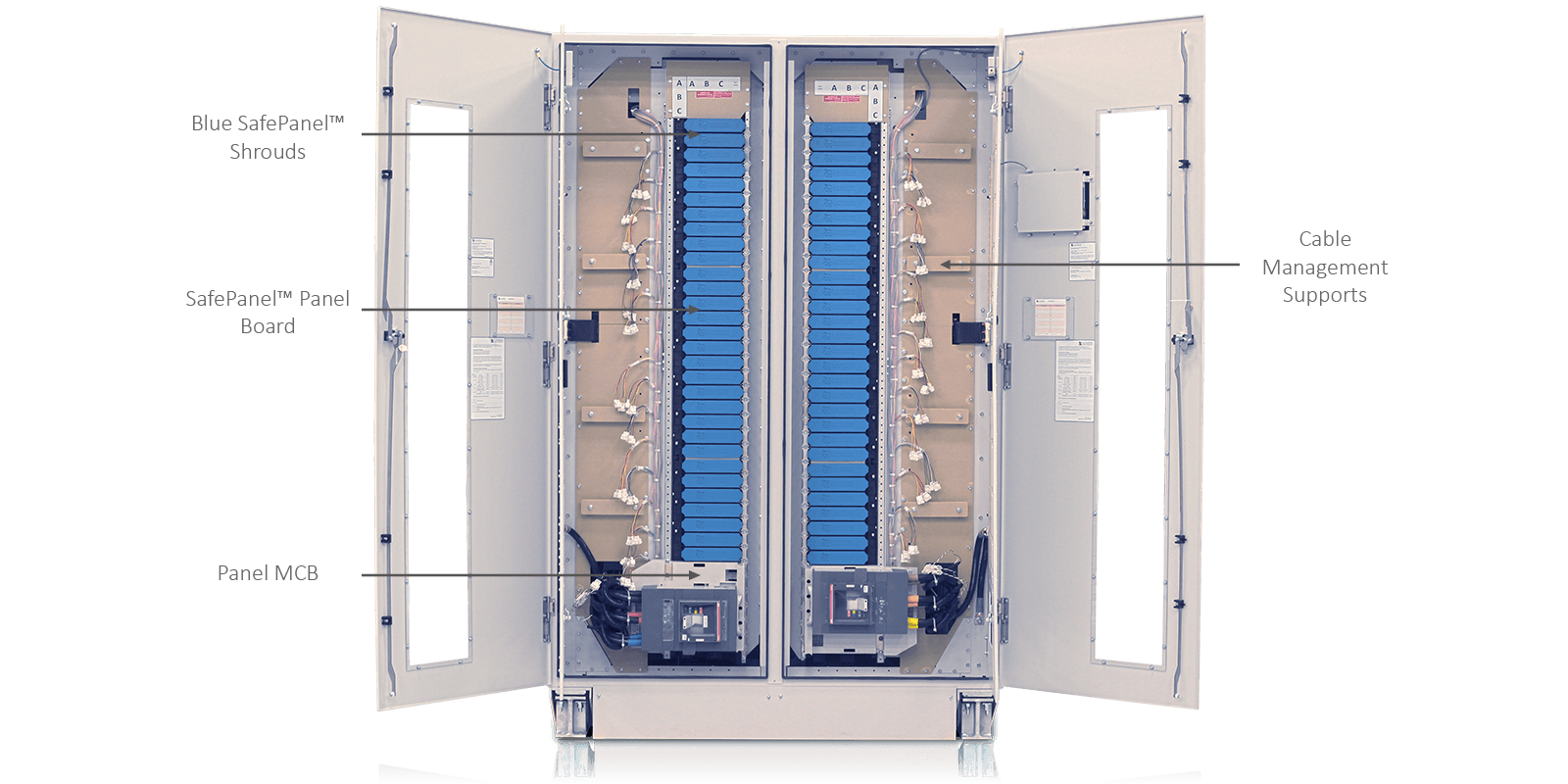

ePODs Type-XL PDU Subfeed Section Inner Doors Open

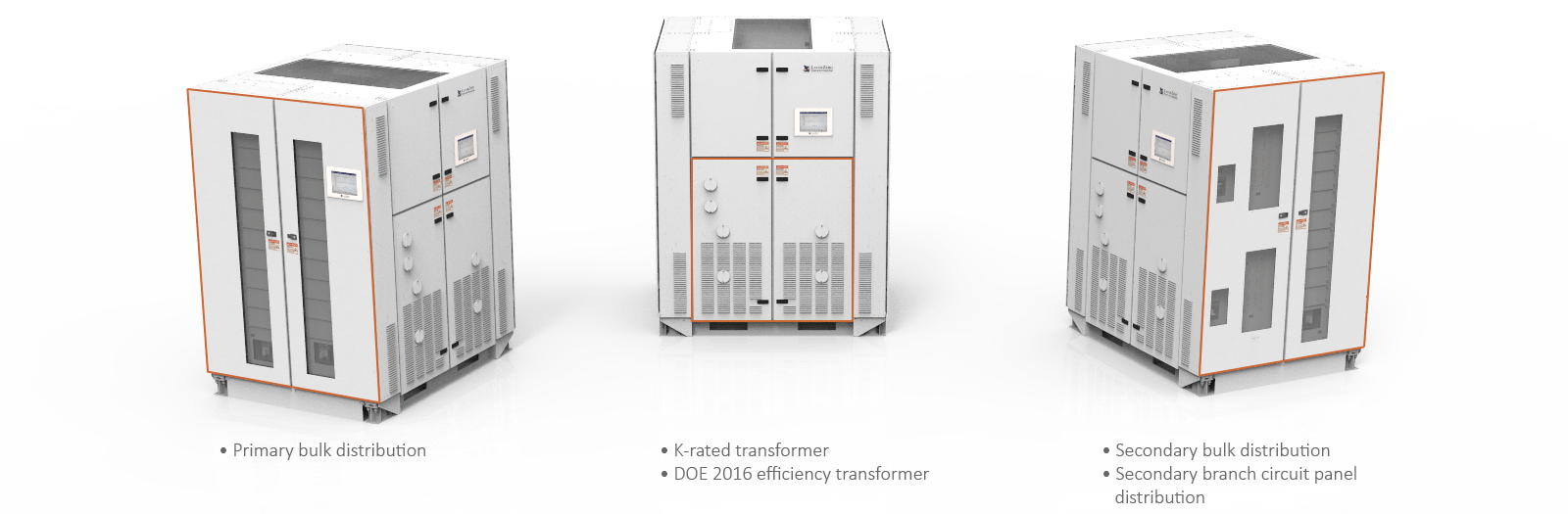

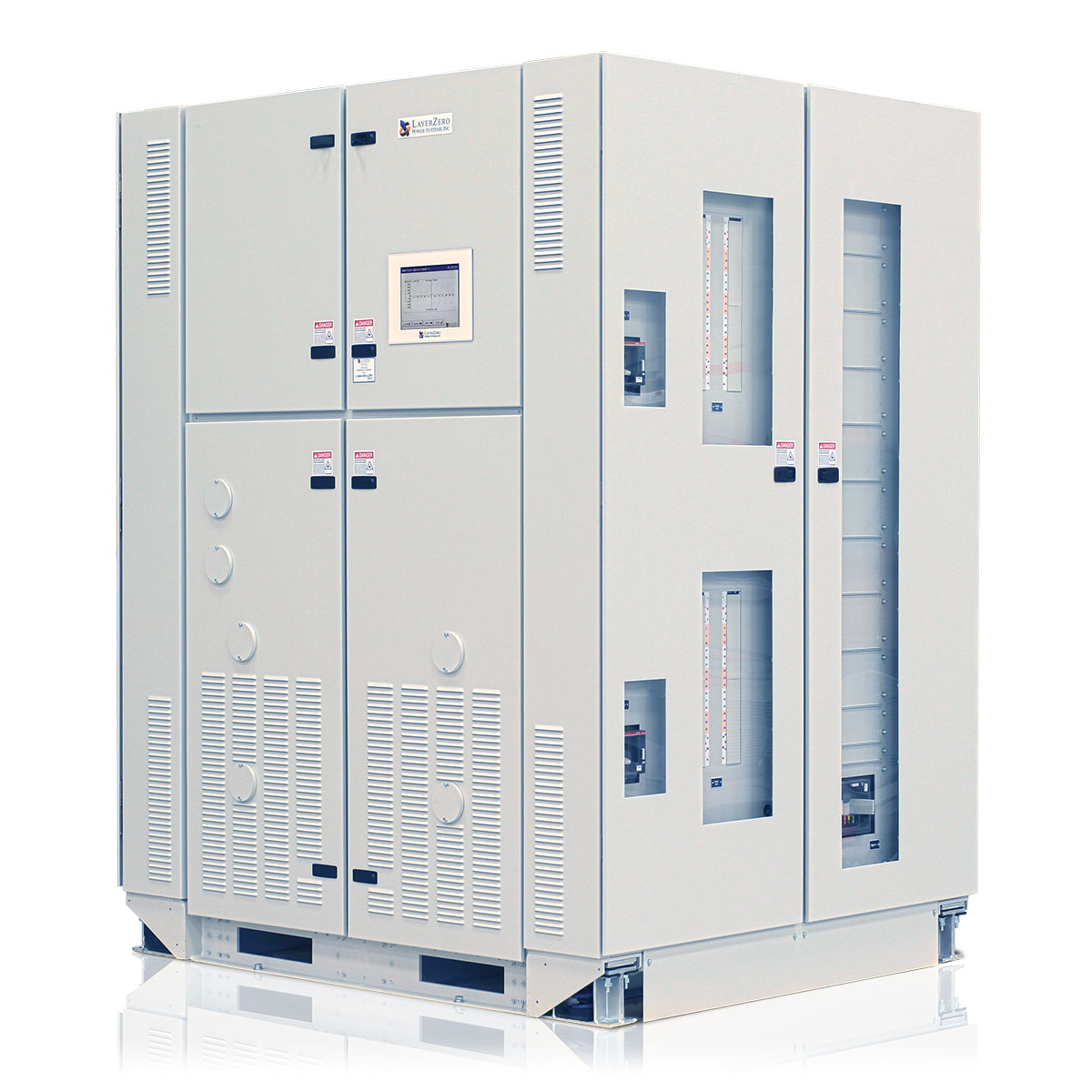

All-In-One Design

All-in-one PDU design

One-Line Electrical Diagram

Type-maX Industrial Load Center oneline

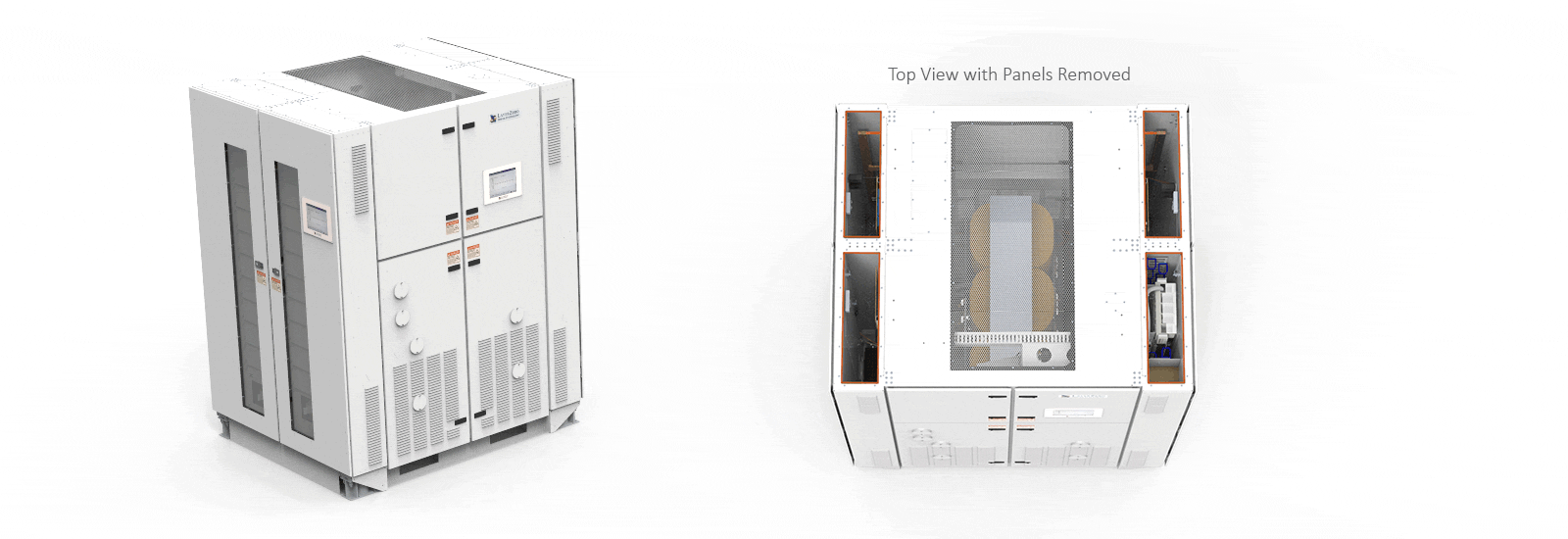

Convenient Cable Access

The Series 70 ePODs: Type-maX features top cable/conduit exit from the panels.

Top Cable Entry/Exit

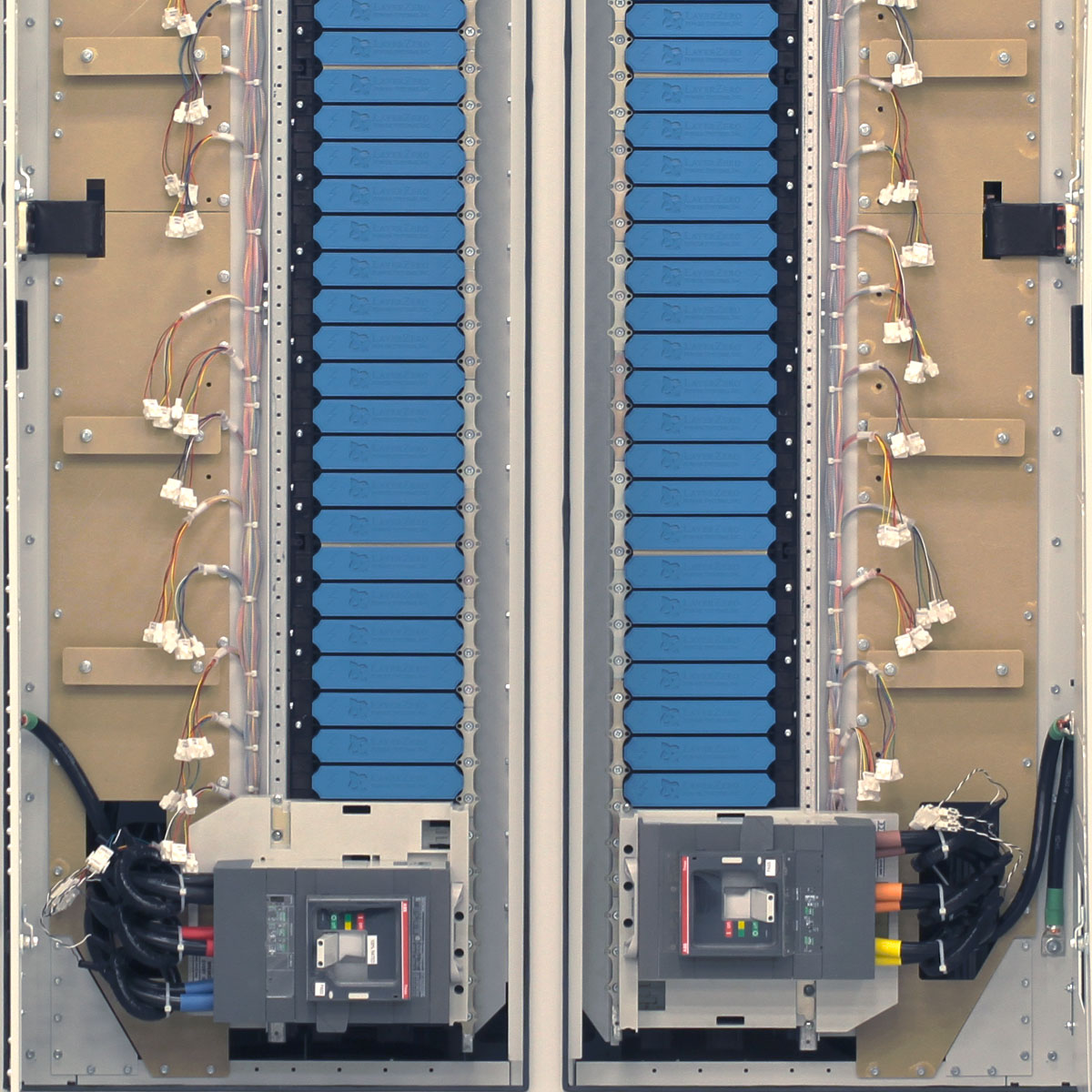

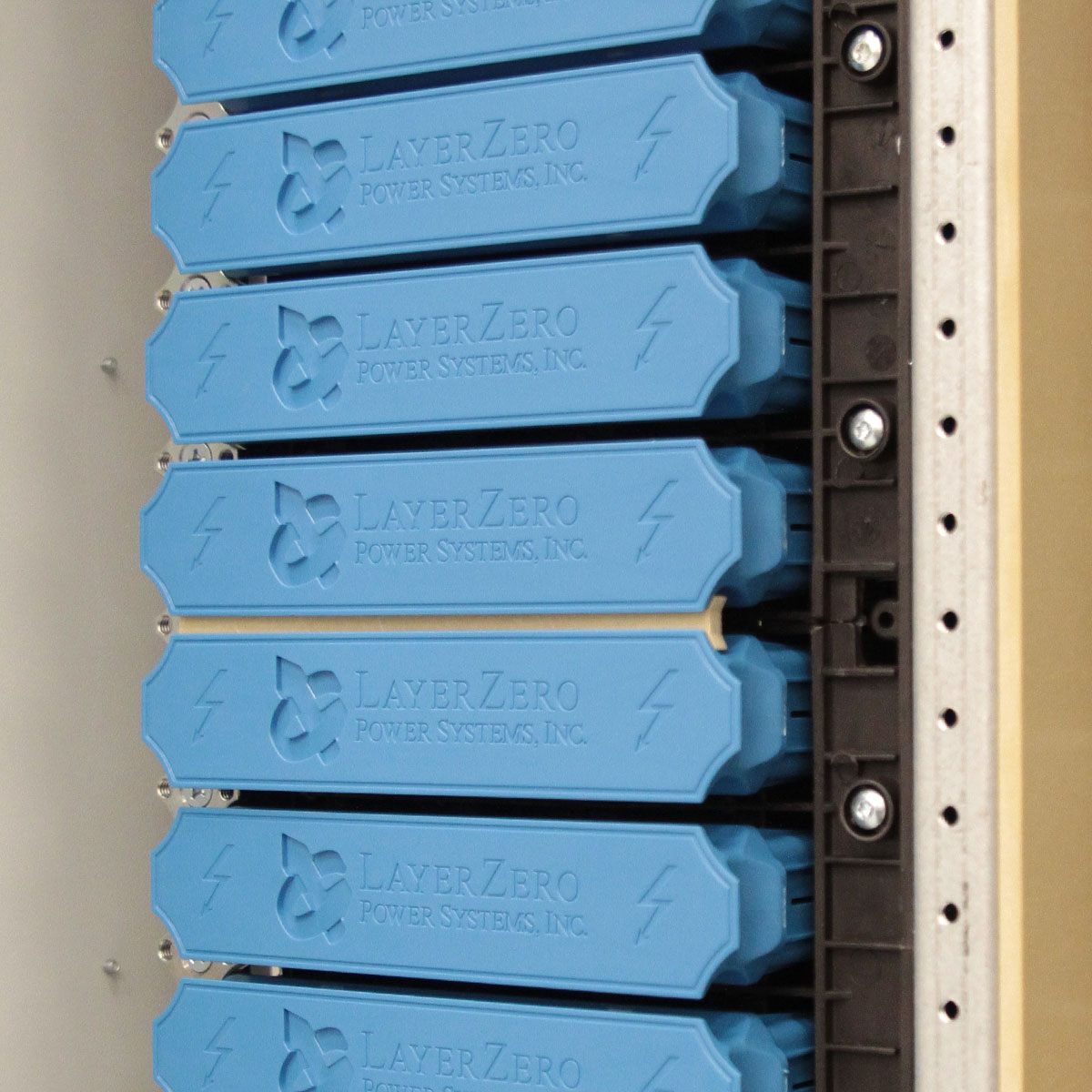

SafePanel

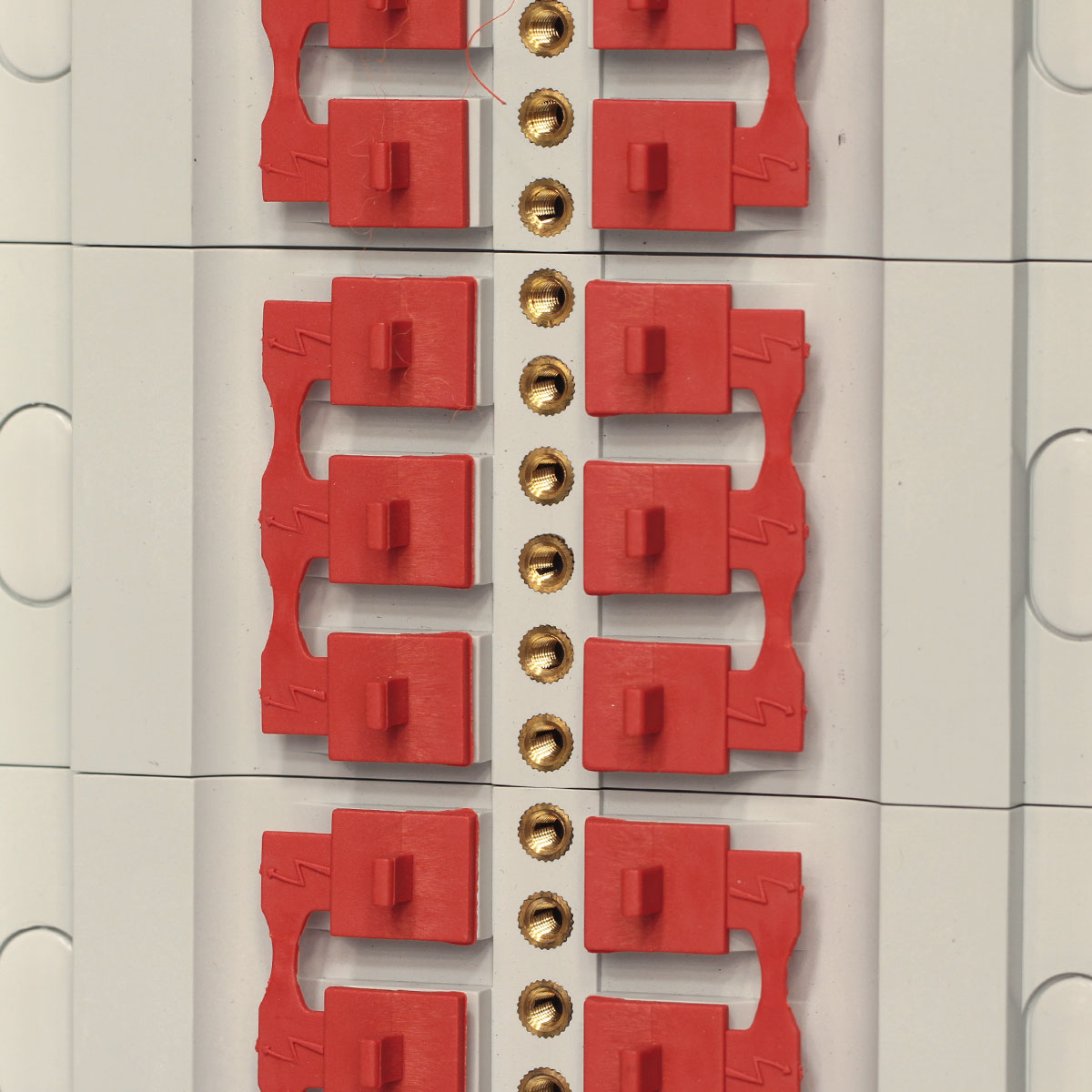

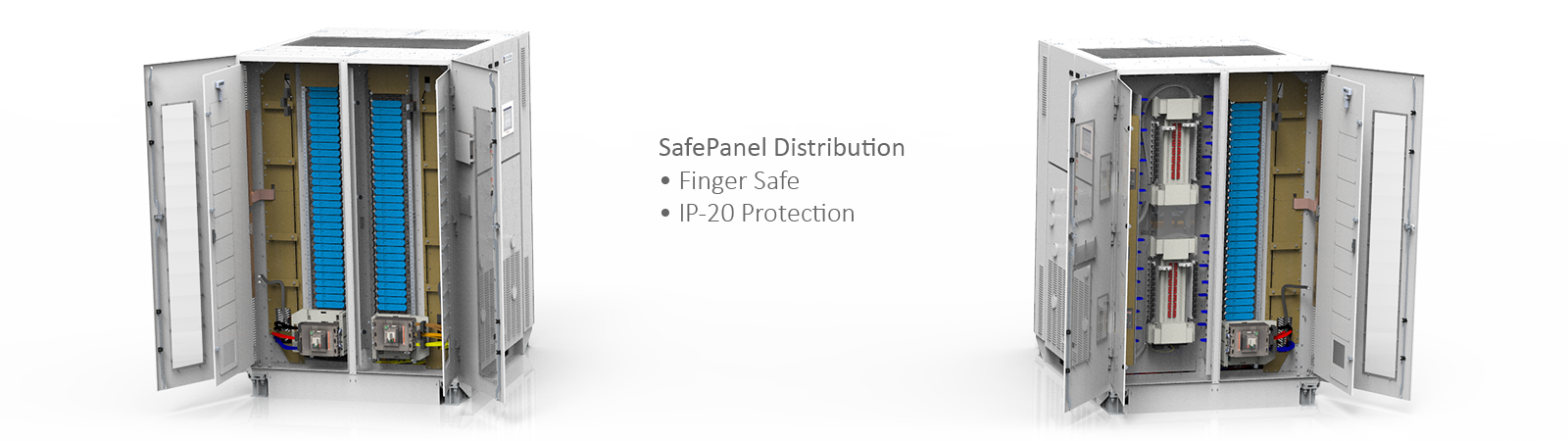

SafePanel™ Distribution is Finger-Safe and rated IP-20.

Type-maX SafePanel Distribution

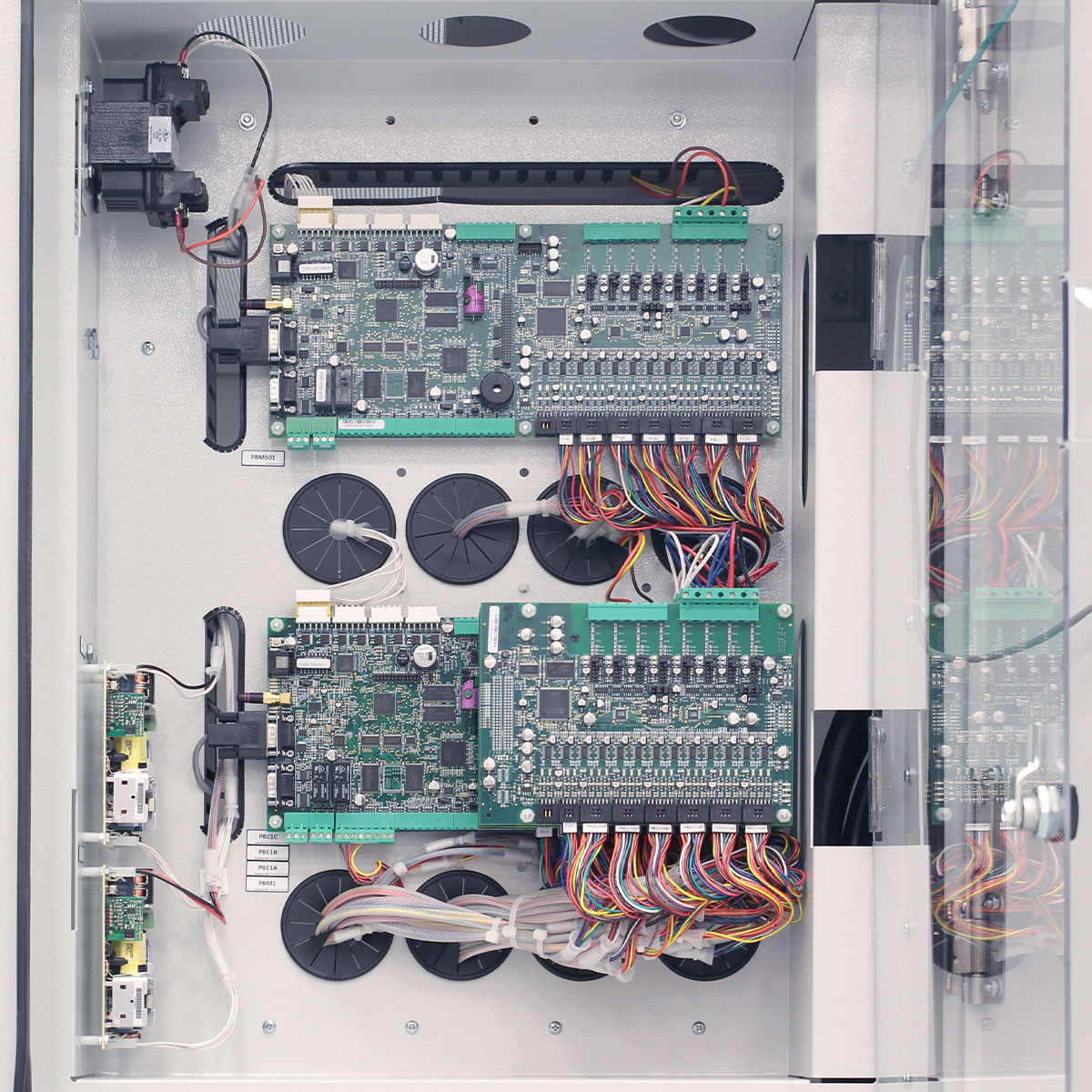

Zen DPQM Power Quality Monitoring

Built-in power quality monitoring, including branch monitoring and real-time waveform capture. Zen DPQM enables facilities to trace the root cause of power quality events. There is no need to add-on expensive power quality analyzers, ePODs: Type-maX has advanced power quality monitoring functionality built-in.

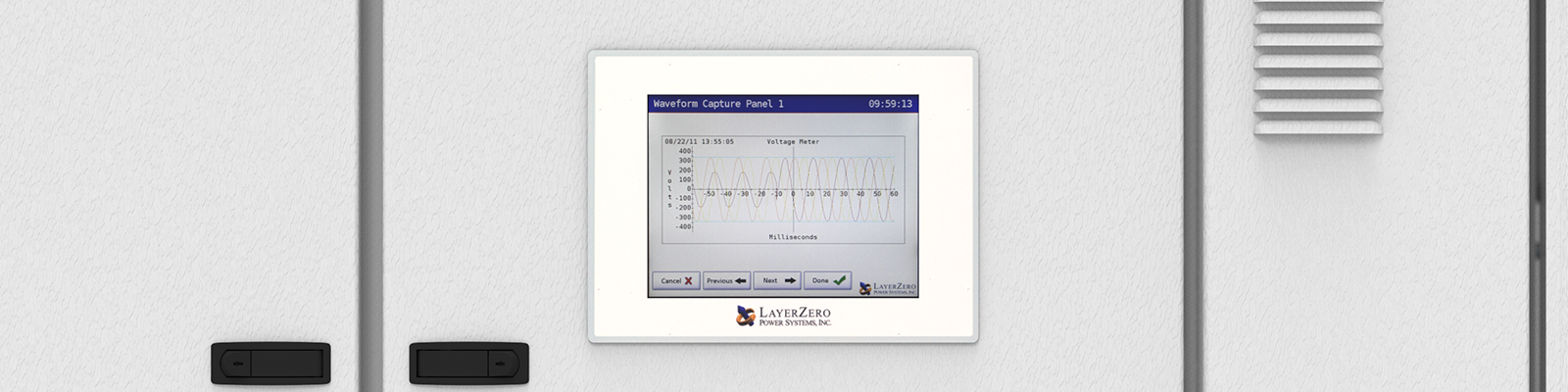

LayerZero Zen DPQM Local Display

Reliability, Safety, Convenience, and Monitoring Features

Connectivity Options

eSTS Connectivity

Series 70 ePODs: Type-maX Technical Specifications

Mechanical Characteristics
Dimensions 80"H x 69"W x 47"D
Transformer Size 300 kVA, 400 kVA, 500 kVA

ePODs: Type-maX Brochure Download
