Series 70: eSTS 1600 A - 4000 A

Designed to protect critical operations, and even entire buildings - the LayerZero Power Systems Series 70: eSTS is a Static Transfer Switch that maximizes power reliability. The Series 70: eSTS is designed to switch between multiple power sources very fast - less than a quarter of an electrical cycle. The eSTS features a solid-state transfer switch that automatically or manually provides static transfers between two AC sources. The eSTS is a MISO Configuration (Multiple Inputs, Single Output), and is ready to accept either 2 or 3 power sources. If the primary source goes out of specification, eSTS transfers to the secondary (backup) source.

eSTS Product Overview

The Series 70: eSTS Static Transfer Switch contains a control section and circuit breaker section.

The control section contains the System Control Data Boards, SCR Gate Drives, a Redundant Power Supply System, an IO System, and VPN Router. The circuit breaker section contains SCRs, Snubber Circuits, Heat Sinks, and Circuit Breakers.

eSTS with Mimic
Select a Section to Highlight:

eSTS 360 Product View

Select to Download VR Assets

eSTS Mechanical Overview

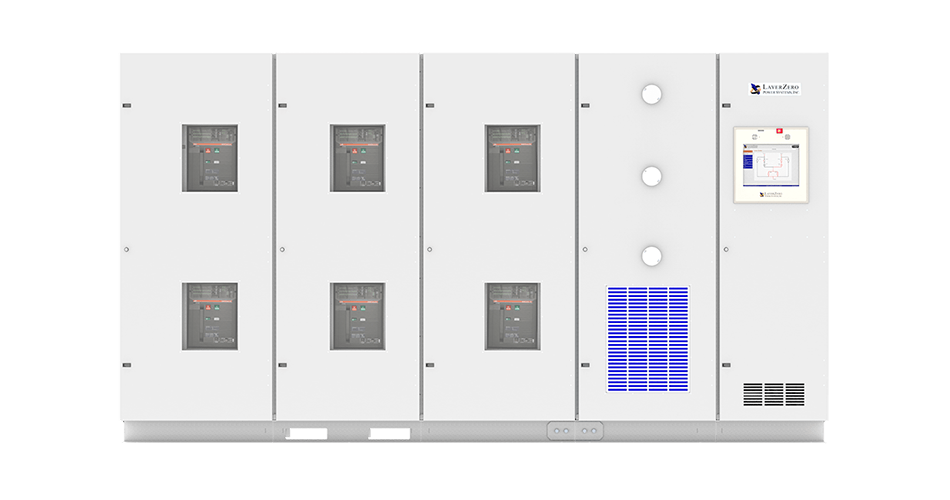

eSTS Static Transfer Switch Exterior
eSTS Outer Door Open

Reliability, Safety, Convenience, and Monitoring Features

Connectivity Options

eSTS Connectivity

eSTS Technical Specifications

Current Voltage Heat Dissipation Weight Dimensions
 1200 A

208 V, 4-wire, 60Hz

480 V, 3-wire, 60Hz

600 V, 3-wire, 60Hz

380 V, 4-wire, 50Hz

400 V, 4-wire, 50Hz

415 V, 4-wire, 50Hz

24,000 BTU/Hr 5,500 lbs 96" W x 48" D x 90" H
2000 A 68,300 BTU/Hr 7,600 lbs 152" W x 57.5" D x 85" H
4000 A 112,800 BTU/Hr 11,000 lbs 240" W x 58" D x 90" H

eSTS Brochure Download

Download eSTS Static Transfer Switch Brochure
Download 1600 A eSTS PDF
