About This Page
Basic Controls

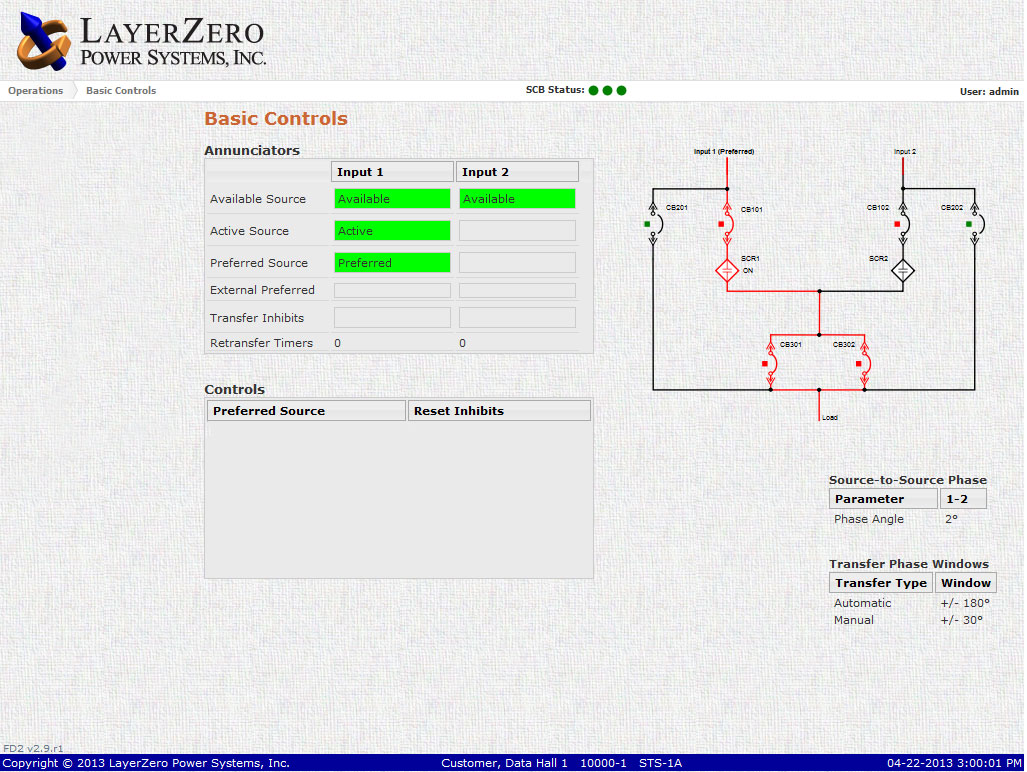

The Basic Controls screen provides the user with an overview of the system sources, including which sources are preferred, which is active, any transfer inhibits, etc. Unauthenticated users are only allowed to view the status. Authenticated users are able to change preferred sources, request a retransfer (if the retransfer mode is "manual"), and reset various inhibits.

Mimic
Mimic Display
Status
Operations
Basic Controls
Bypass
Configuration
Tools
Logout
Input 1
Input 2
SCR Shorted
SCR Open
Overload

Save Disabled

This is a replica of of some of the functionality offered in LayerZero Power Systems Static Transfer Switch products for demonstration purposes only. This only emulates the screens eSTS, many functions have not been included in the demo, including the ability to save. If you would like to see a full demo, please contact your LayerZero sales rep.
