Waveforms

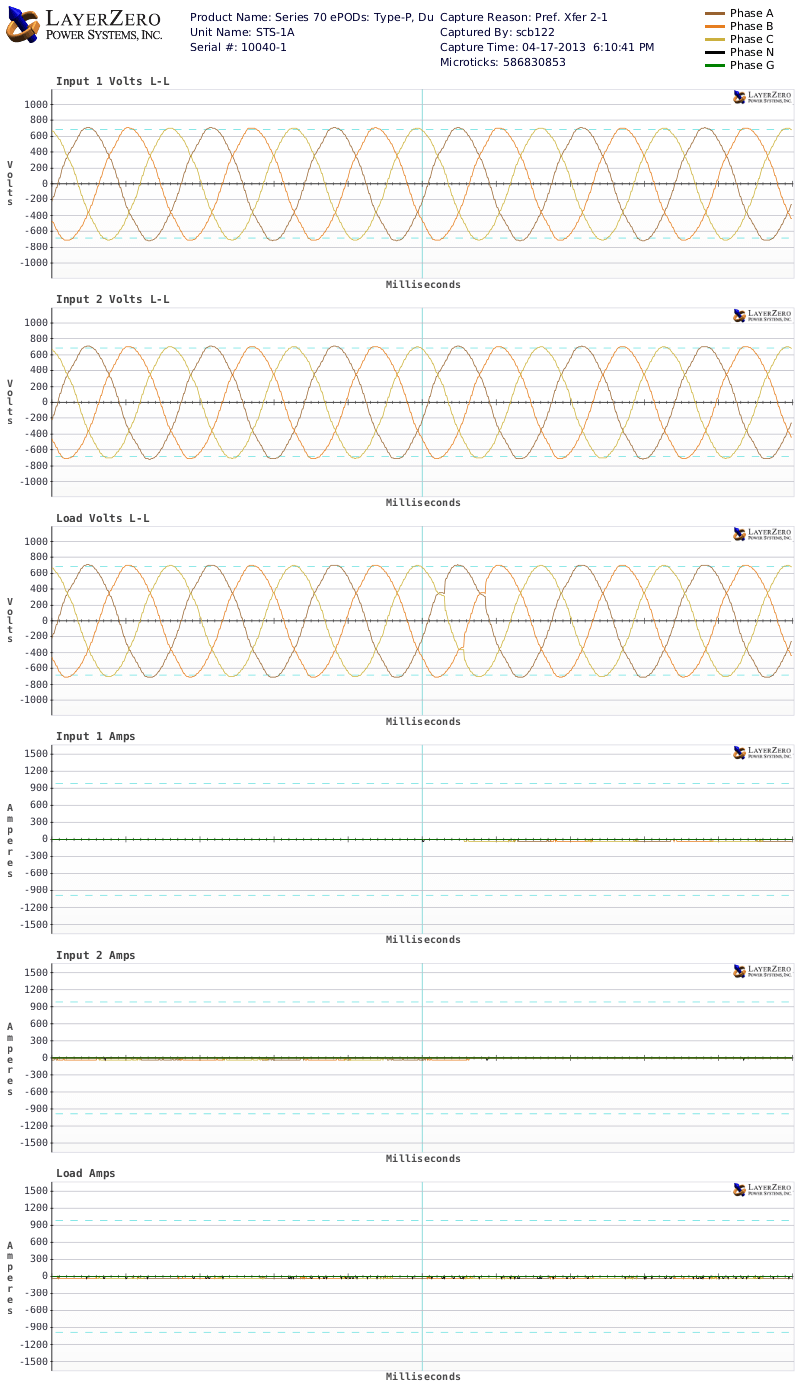

LayerZero eSTS collects waveforms from the SCB and keeps them in internal storage. When selecting the "Waveforms" menu entry, the most recent waveform will be displayed. If no waveforms have been captured, you'll instead be shown the waveform list (which will be empty).
