2-Source STS
3-Pole Static Transfer Switches
250 A 208 V 3-Pole eSTS
The 250 A 208 V 3-Pole eSTS is a static transfer switch with a current rating of 250 amps, a voltage rating of 208 volts, and three poles.

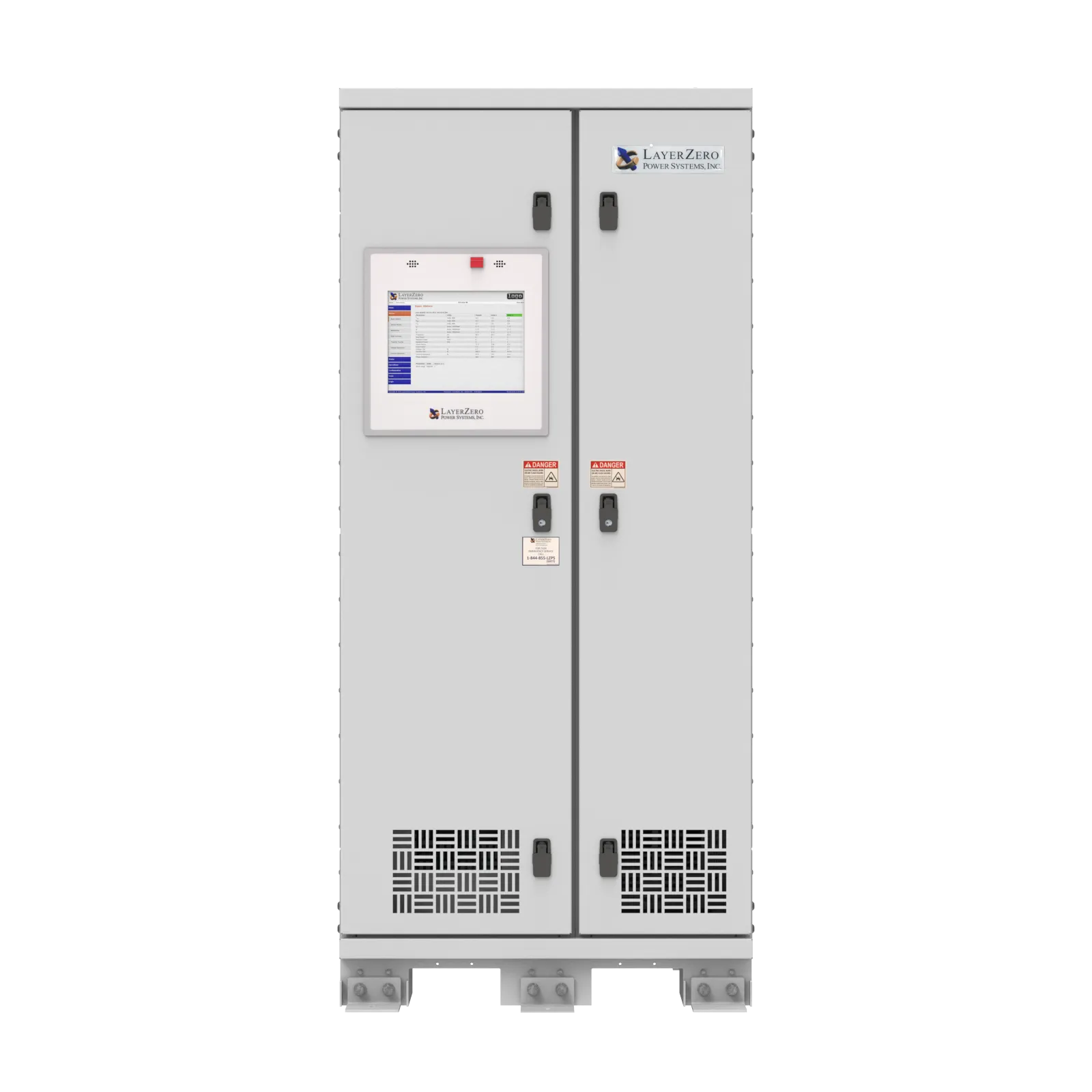

250 A 480 V 3-Pole eSTS
The 250 A 480 V 3-Pole eSTS is a static transfer switch with a current rating of 250 amps, a voltage rating of 480 volts, and three poles.
400 A 480 V 3-Pole eSTS
The 400 A 480 V 3-Pole eSTS is a static transfer switch with a current rating of 400 amps, a voltage rating of 480 volts, and three poles.
600 A 480 V 3-Pole eSTS
The 600 A 480 V 3-Pole eSTS is a static transfer switch with a current rating of 600 amps, a voltage rating of 480 volts, and three poles.
800 A 480 V 3-Pole eSTS
The 800 A 480 V 3-Pole eSTS is a static transfer switch with a current rating of 800 amps, a voltage rating of 480 volts, and three poles.
1000 A 480 V 3-Pole eSTS
The 1000 A 480 V 3-Pole eSTS is a static transfer switch with a current rating of 1000 amps, a voltage rating of 480 volts, and three poles.
1200 A 480 V 3-Pole eSTS
The 1200 A 480 V 3-Pole eSTS is a static transfer switch with a current rating of 1200 amps, a voltage rating of 480 volts, and three poles.
1600 A 480 V 3-Pole eSTS
The 1600 A 480 V 3-Pole eSTS is a static transfer switch with a current rating of 1600 amps, a voltage rating of 480 volts, and three poles.
2000 A 480 V 3-Pole eSTS
The 2000 A 480 V 3-Pole eSTS is a static transfer switch with a current rating of 2000 amps, a voltage rating of 480 volts, and three poles.
3000 A 480 V 3-Pole eSTS
The 3000 A 480 V 3-Pole eSTS is a static transfer switch with a current rating of 3000 amps, a voltage rating of 480 volts, and three poles.
4000 A 480 V 3-Pole eSTS
The 4000 A 480 V 3-Pole eSTS is a static transfer switch with a current rating of 4000 amps, a voltage rating of 480 volts, and three poles.
4-Pole Static Transfer Switches
250 A 120-208 V 4-Pole eSTS
The 250 A 120-208 V 4-Pole eSTS is a static transfer switch with a current rating of 250 amps, a voltage rating of 120/208 volts, and four poles.
400 A 120-208 V 4-Pole eSTS
The 400 A 120-208 V 4-Pole eSTS is a static transfer switch with a current rating of 400 amps, a voltage rating of 120/208 volts, and four poles.

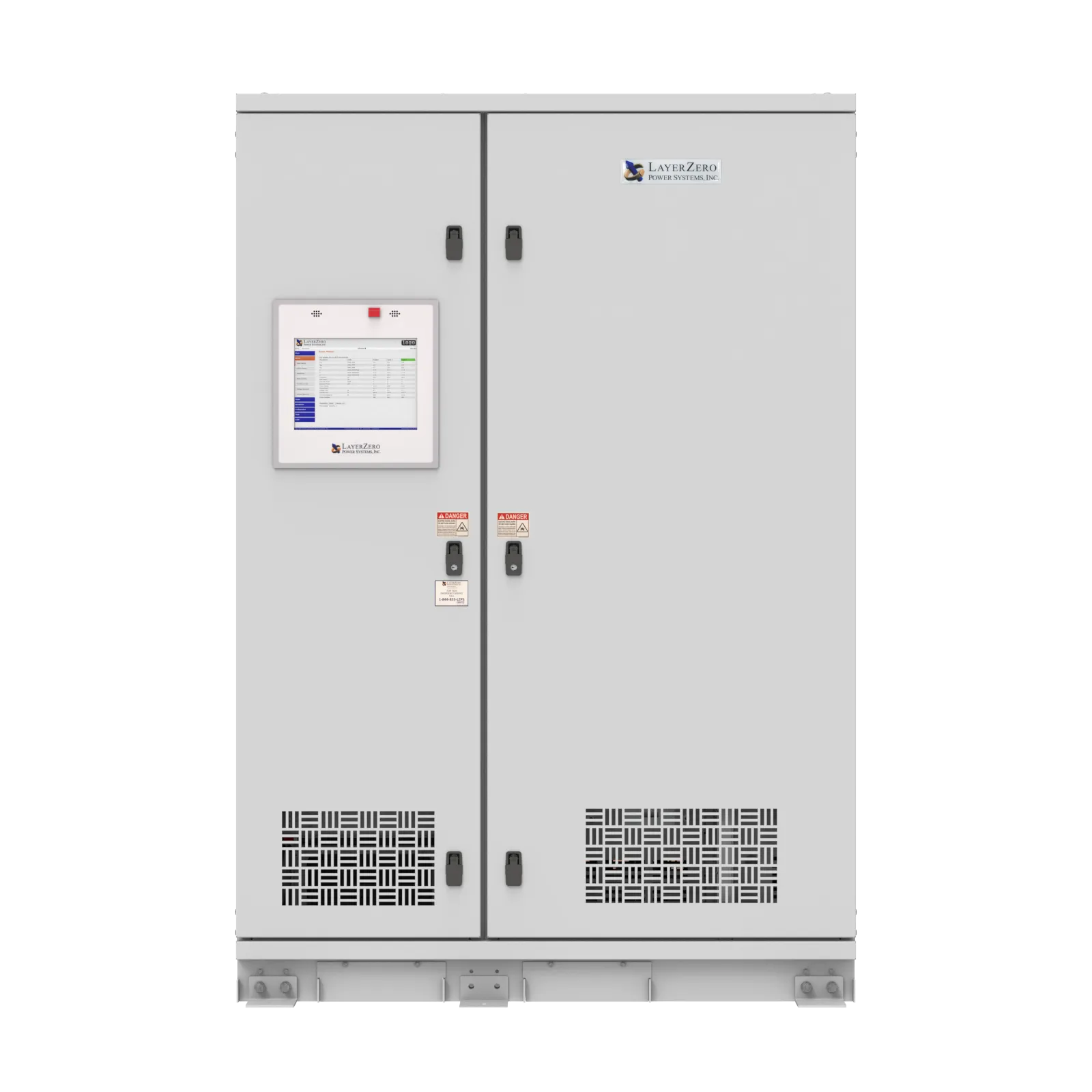

800 A 240-415 V 4-Pole eSTS
The 800 A 240-415 V 4-Pole eSTS is a static transfer switch with a current rating of 800 amps, a voltage rating of 240/415 volts, and four poles.
1600 A 277-480 V 4-Pole eSTS
The 1600 A 277-480 V 4-Pole eSTS is a static transfer switch with a current rating of 2000 amps, a voltage rating of 477/480 volts, and four poles.
2000 A 240-415 V 4-Pole eSTS
The 2000 A 240-415 V 4-Pole eSTS is a static transfer switch with a current rating of 2000 amps, a voltage rating of 240/415 volts, and four poles.
3000 A 277-480 V 4-Pole eSTS
The 3000 A 277-480 V 4-Pole eSTS is a static transfer switch with a current rating of 3000 amps, a voltage rating of 277/480 volts, and four poles.
3-Pole Static Transfer Switches
| Product Model | Current | Voltage | # Poles | Height (in) | Width (in) | Depth (in) | Weight |
|---|---|---|---|---|---|---|---|
| 250 A 208 V 3-Pole | 250 | 208 | 3 | 80" (2032 mm) | 36" (914 mm) | 36.4" (925 mm) | 1350 lbs [620 kg] |
| 250 A 480 V 3-Pole | 250 | 480 | 3 | 80" (2032 mm) | 36" (914 mm) | 36.4" (925 mm) | 1350 lbs [620 kg] |
| 400 A 480 V 3-Pole | 400 | 480 | 3 | 80" (2032 mm) | 47" (1194 mm) | 37" (940 mm) | 1800 lbs [825 kg] |
| 600 A 480 V 3-Pole | 600 | 480 | 3 | 88" (2235 mm) | 48" (1219 mm) | 37" (940 mm) | 1800 lbs [825 kg] |
| 800 A 480 V 3-Pole | 800 | 480 | 3 | 80" (2032 mm) | 57" (1448 mm) | 36" (914 mm) | 2150 lbs [975 kg] |
| 1000 A 480 V 3-Pole | 1000 | 480 | 3 | 88" (2235 mm) | 96" (2438 mm) | 40.5" (1029 mm) | 3000 lbs [1361 kg] |
| 1200 A 480 V 3-Pole | 1200 | 480 | 3 | 88" (2235 mm) | 96" (2438 mm) | 40.5" (1029 mm) | 3000 lbs [1361 kg] |
| 1600 A 480 V 3-Pole | 1600 | 480 | 3 | 96" (2438 mm) | 90" (2286 mm) | 42" (1067 mm) | 4,800 lbs [2177 kg] |
| 2000 A 480 V 3-Pole | 2000 | 480 | 3 | 96" (2438 mm) | 90" (2286 mm) | 42" (1067 mm) | 4,800 lbs [2177 kg] |
| 3000 A 480 V 3-Pole | 3000 | 480 | 3 | 91" (2311 mm) | 192" (4877 mm) | 57" (1448 mm) | 11,200 lbs [5080 kg] |
| 4000 A 480 V 3-Pole | 4000 | 480 | 3 | 91" (2311 mm) | 192" (4877 mm) | 57" (1448 mm) | 11,200 lbs [5080 kg] |
4-Pole Static Transfer Switches
| Product Model | Current | Voltage | # Poles | Height (in) | Width (in) | Depth (in) | Weight |
|---|---|---|---|---|---|---|---|
| 250 A 120-208 V 4-Pole | 250 | 120/208 | 4 | 90" (2286 mm) | 48" (1219 mm) | 36" (914 mm) | 1600 lbs [726 kg] |
| 400 A 120-208 V 4-Pole | 400 | 120/208 | 4 | 88" (2235 mm) | 48" (1219 mm) | 37" (940 mm) | 1600 lbs [726 kg] |
| 800 A 240-415 V 4-Pole | 800 | 240/415 | 4 | 88" (2235 mm) | 84" (2134 mm) | 48" (1219 mm) | 3050 lbs (1384 kg) |
| 1600 A 277-480 V 4-Pole | 1600 | 277/480 | 4 | 108" (2734 mm) | 114" (2895 mm) | 55.5" (1410 mm) | 5,600 lbs (2540 kg) |
| 2000 A 240-415 V 4-Pole | 2000 | 240/415 | 4 | 108" (2734 mm) | 114" (2895 mm) | 55.5" (1410 mm) | 5,600 lbs (2540 kg) |
| 3000 A 277-480 V 4-Pole | 3000 | 277/480 | 4 | 89" (2261 mm) | 192" (4877 mm) | 57" (1448 mm) | 11,200 lbs [5080 kg] |
