Product Overview

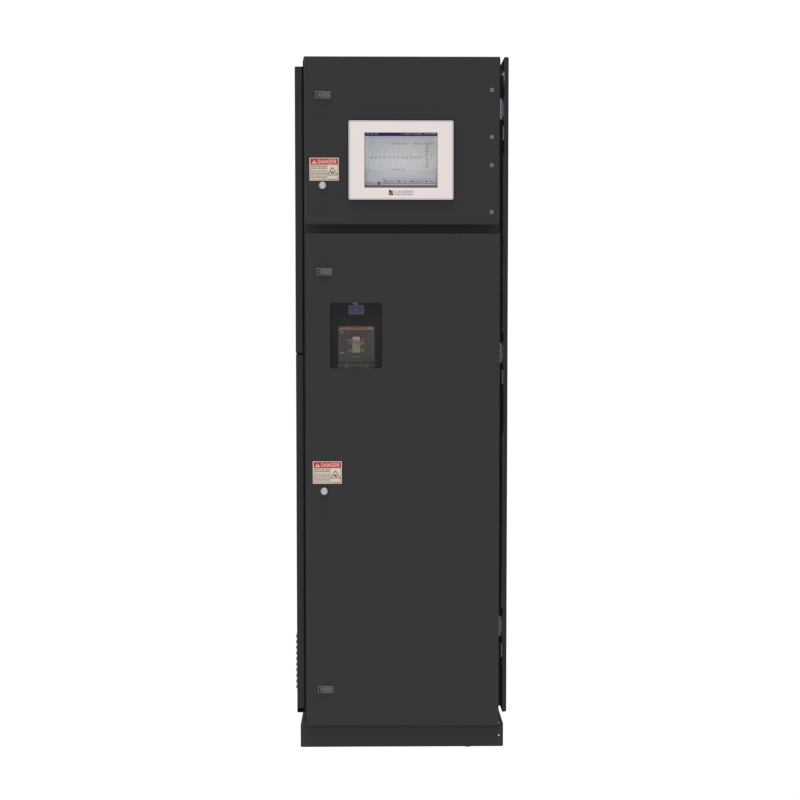

The LayerZero ePanel FSR (Left) is a web-enabled remote power panel (eRPP) with 42-circuit SafePanel distribution. It is a SIMO configuration (single input, multiple outputs), meaning that it has a single input power source and multiple output circuits. The eRPP-FSR (Left) is ideal for applications that require high-reliability power distribution in a wall-mounted, space-saving design.

The core functionality of the LayerZero ePanel FSR (Left) is to distribute power to a large number of circuits, while maintaining selective trip coordination. It can accommodate up to 84 finger-safe circuits. This makes it ideal for applications with high power requirements, such as data centers and large industrial facilities.

The ePanel FSR (Left) also features a number of safety features, including safepanel distribution, dead front doors, no exposed live parts (NELP) and polycarbonate windows. These features help to protect users and equipment from electrical hazards.

If you are looking for a high-reliability, safe, and versatile power distribution solution, the LayerZero eRPP-FSR (Left) is a great option.

Documents and Downloads

A one line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.

Download
One Line

A product outline is a technical engineering drawing showing mechanical characteristics of our products.

Download
Product Outline

Guideform specifications include the requirements, specifications, and considerations of installing LayerZero equipment.

Download
Guideform Specification

Product brochures contain information about the product's features, benefits, and specifications.

Download
Product Brochure

Product Specifications

Product Specifications

Physical Specifications

Weight 500 lbs (227 kg)
Dimensions 80" x 24" x 24" (2020 mm x 620 mm x 610 mm)
Clearances Front: 36" Left: 36" Right: 0" Rear: w/ PANEL: 0" w/ DOOR: 36"
Color Black/Light Gray
Warranty One-Year Limited Warranty
CSA Rating Certified to CSA STD C22.2#29
UL Rating Conforms to UL STD 67
Distribution Type 42-circuit Panel Board Configuration

System Specifications

System Input Voltage 120/208V, 3-phase, 4-wire + Ground
System Frequency 60Hz
Input Terminals Rating - Phases 400A
Input Feeder Terminations - Phases Two-hole Compression Lugs
Input Terminals Rating - Neutral 800A
Input Feeder Terminations - Neutral Two-hole Compression Lugs
Input Terminals Rating - Ground 400A
Input Feeder Terminations - Ground Two-hole Compression Lugs
Presence of Isolated Ground Terminals No
Number of Inputs 1
Number of Panels 2
Electrical Configuration Shared Parallel (SP)
Access Side Front and Left
Presence of Main Circuit Breakers Yes
System Rating 35kAIC
Presence of Front Panel Board Door Yes
Presence of Front Panel Board Door Alarm No
Presence of Front Door Viewing Window Yes
Presence of Left Side Controls Door Yes
Presence of Left Side Circuit Breaker Door Yes
Presence of Left Side Circuit Breaker Door Alarm No
Presence of Left Side Door Viewing Window Yes
Presence of Right Side Door No
Presence of Rear Door No
Presence of Deadfront Doors Yes
Presence of IR Scan Windows Yes
Presence of Casters Yes

Main CB1

Frame Rating 400
Circuit Breaker Type Electronic Trip (LS/I)
Circuit Breaker Mounting Type Plug-in
Max Steady State Rating 400
Percent Rating 100
Fault Rating at Rated Voltage 65kAIC @ 240VAC
Presence of Shunt Trip No
Presence of CB Position Indications No
Presence of Lockout/Tag-out Bracket Yes
Number of Poles 3
Supplier ABB

PANEL 1

Rating - Phases 400
Rating - Neutral 400
Rating - Ground 225
Withstand 35
Supplier ABB

PANEL 2

Rating - Phases 400
Rating - Neutral 400
Rating - Ground 225
Withstand 35
Supplier ABB

Safety Features

Safety Features

The LayerZero ePanel FSR (Left) is designed for maximum operator safety. It uses a sectionalized design, which means that the power quality monitoring is housed in a separate section from the circuit breakers and customer cable connections. This compartmentalized design allows the equipment to be safely operated and serviced.

In normal operation, the inner dead-front doors of the SL-1 remain closed.

A polycarbonate window in the door allows operators to safely view the circuit breaker positions with the dead front door closed. INSIGHT IR® cameras (optional) or an IR Port (standard) provides the ability to monitor the temperatures of critical connections with the doors safely closed.

The LayerZero Power Systems eRPP-FSR (Left) is a safe and reliable piece of equipment that is designed to protect operators and equipment.

Reliability Features

Reliability Features

The LayerZero ePanel FSR (Left) is a highly reliable Remote Power Panel designed to provide power distribution and monitoring for critical applications. It offers advanced safety and reliability features to ensure consistent and dependable power delivery.

The ePanel FSR (Left) is built with high-quality components, ensuring long-lasting performance and reliability. FSR (Left) features silver-plated connections, which enhance conductivity and minimize resistance, resulting in optimal power transmission.

With its comprehensive design, the ePanel FSR (Left) is capable of meeting the demands of various operating conditions. It incorporates a seismic rating, making it suitable for installations in seismically active areas. This ensures the stability and performance of the panel, even during earthquakes.

The ePanel FSR (Left) also incorporates serialized board tracking, enabling easy identification and tracking of individual boards within the panel. This feature simplifies maintenance and troubleshooting, such as having the ability to detect for part defects.

With its reliable performance, advanced features, and safety-focused design, the LayerZero ePanel FSR (Left) is an excellent choice for organizations that require a dependable and safe remote power panel to support their critical applications.

Power Quality Monitoring Features

Power Quality Monitoring Features

The LayerZero ePanel FSR (Left) is equipped with an advanced Power Quality Monitoring (PQM) system that provides local and remote access using non-proprietary protocols. The PQM system includes basic monitoring, alarms, waveform capture, and ITIC plotting capabilities.

The ITIC plotting utility is used to audit the quality of transfers.

Connectivity Features

Connectivity Features
  • Ethernet Connectivity: This port is used to connect to to a network.
  • Modbus/TCP: This protocol is used to communicate with BMS systems.
  • SNMP Connectivity: This protocol is used to manage the switch remotely.
