Product Overview
The LayerZero RDP-ARM-600-2 is a web-enabled remote distribution panel (eRDP) with subfeed distribution. It is a SIMO configuration (single input, multiple outputs), meaning that it has a single input power source and multiple output circuits. The RDP-ARM-600-2 is ideal for applications that require high-reliability power distribution.
The core functionality of the LayerZero RDP-ARM-600-2 is to distribute power to a large number of circuits. This makes it ideal for applications with high power requirements, such as data centers and large industrial facilities.
The RDP-ARM-600-2 also features a number of safety features, including SafePanel® distribution, dead front doors, no exposed live parts (NELP) and polycarbonate windows. These features help to protect users and equipment from electrical hazards.
If you are looking for a high-reliability, safe, and versatile power distribution solution, the LayerZero RDP-ARM-600-2 is a great option.
Documents and Downloads
A one line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.
One Line
A product outline is a technical engineering drawing showing mechanical characteristics of our products.
Product Outline
Product brochures contain information about the product's features, benefits, and specifications.
Product Brochure
Product Specifications
Mechanical Characteristics
| Dimensions | 88” H x 66” W x 36” D (1680 mm H x 2240 mm W x 920 mm D) |
| Clearances | Front: 42” [1067 mm], Rear: 6” [152 mm], Left/Right: 0” [0 mm], Top: 18” [457 mm] |
| Weight | 2,500 lbs (1134 kg) |
| Frame | Construction Welded Frame |
| Color | Textured Powder Coat White (RAL 7035), Blue (RAL 5017), Black, Custom |
| Seismic Floor Anchors | Optional |
| Seismic Floor Stand | Optional |
| Sectionalization | Dead Front Doors; Main CB(s); Monitoring |
| System Mounting Type | Freestanding |
Physical Specifications
| Color | Light Gray |
| System Mounting Type | Freestanding |
System Specifications
| System Input Voltage | 230/400V, 3-Phase, 4-Wire + Ground |
| System Input Current Rating | 600A |
| System Frequency | 60Hz |
| System Withstand | 65kA |
| Neutral Rating | 100% |
| Presence of Main Circuit Breaker | Yes |
| Presence of Auxiliary Circuit Breaker | No |
| Presence of Kirk Key Interlock | N/A |
| Sync Check Relay Required | N/A |
| Presence of Solenoid Key Release Unit | N/A |
| Presence of Incoming Current Monitoring | Yes |
| Presence of Incoming Voltage Monitoring | Yes |
| Presence of Local Display | Yes |
| Type of Local Display | Incorporated into Main Circuit Breaker |
| Presence of Distribution | Yes |
| Access Type | Front Only |
| Distribution Side | Front |
| Distribution Type | Subfeed Distribution |
| Presence of Subfeed Current Monitoring | No |
| Subfeed Type | SafePanel |
| Subfeed Panel Board Quantity | 2 |
| Location of Main Circuit Breakers | Separate Cabinet |
Main Circuit Breaker (CB701)
| Frame Rating | 600 |
| Circuit Breaker Type | Electronic Trip (LSI) w/ Measuring 2 |
| Circuit Breaker Mounting Type | Fixed |
| Max Steady State Rating | 600 |
| Percent Rating | 100% |
| Fault Rating at Rated Voltage | 65kAIC @ 480VAC (per UL ratings) |
| Presence of Shunt Trip | No |
| Presence of CB Position Indications | No |
| Presence of Lockout/Tag-out Bracket | Yes |
| Number of Poles | 3 |
| Supplier | ABB |
Surge Protective Device (SPD31)
| Presence of SPD | No |
SafePanel 1 - PANEL 801
| Current | 1200A |
| Withstand | 65kA |
| Supplier | ABB |
SafePanel 2 - PANEL 802
| Current | 1200A |
| Withstand | 65kA |
| Supplier | ABB |
Safety Features
The LayerZero RDP-ARM-600-2 is designed with advanced safety features to ensure maximum operator protection. The Remote Distribution Panel (RDP) employs a design that houses the Arc Reduction Mode (ARM) and main circuit breakers in a separate cabinet, which allows for safer operation and servicing of the equipment.
During normal operation, all critical components are securely enclosed, with access limited to authorized personnel. The front-only access design ensures that operators can perform necessary tasks without exposing themselves to high-voltage areas.
A polycarbonate window is integrated into the door, allowing operators to safely view circuit breaker positions without opening the enclosure. Additionally, the RDP-ARM-600-2 offers optional INSIGHT IR® cameras or a standard IR Port, providing the ability to monitor the temperatures of critical connections while keeping the doors securely closed.
The LayerZero Power Systems RDP-ARM-600-2 is engineered to deliver reliable and safe operation, protecting both operators and the equipment itself.
Reliability Features
The LayerZero RDP-ARM-600-2 is a highly reliable Remote Distribution Panel designed to provide power distribution and monitoring for critical applications. It offers advanced safety and reliability features to ensure consistent and dependable power delivery, particularly in mission-critical environments.
The RDP-ARM-600-2 is built with high-quality components, ensuring long-lasting performance and reliability. The panel features silver-plated connections, enhancing conductivity and minimizing resistance, resulting in optimal power transmission and reduced energy losses.
With its robust design, the RDP-ARM-600-2 is capable of meeting the demands of various operating conditions, including harsh industrial environments. It incorporates a seismic rating, making it suitable for installations in seismically active areas, ensuring stability and performance even during earthquakes.
The RDP-ARM-600-2 also incorporates serialized board tracking, enabling easy identification and tracking of individual boards within the panel. This feature simplifies maintenance and troubleshooting, helping to quickly identify and address any issues that may arise.
With its reliable performance, advanced features, and safety-focused design, the LayerZero RDP-ARM-600-2 is an excellent choice for organizations that require a dependable and safe remote distribution panel to support their critical applications.
Power Quality Monitoring Features
The LayerZero ePanel RDP-ARM-600-2 is equipped with an advanced Power Quality Monitoring (PQM) system that provides local and remote access using non-proprietary protocols. The PQM system includes basic monitoring, alarms, waveform capture, and ITIC plotting capabilities.
The ITIC plotting utility is used to audit the quality of transfers.
Connectivity Features
- Ethernet Connectivity: This port is used to connect to to a network.
- Modbus/TCP: This protocol is used to communicate with BMS systems.
- SNMP Connectivity: This protocol is used to manage the switch remotely.

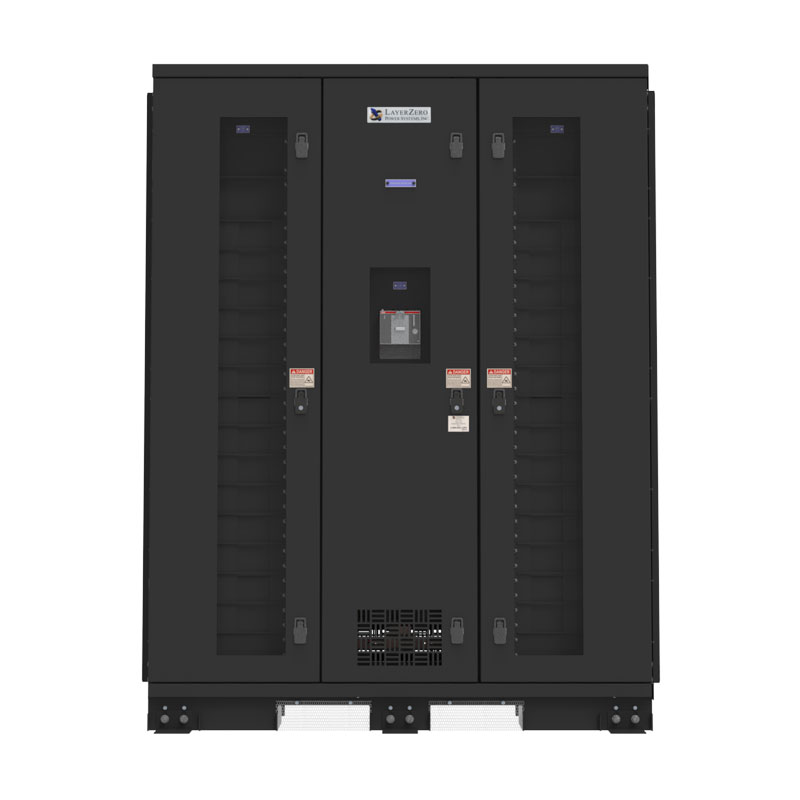

ePanel RDP-ARM-600-2 Gallery
