Product Overview

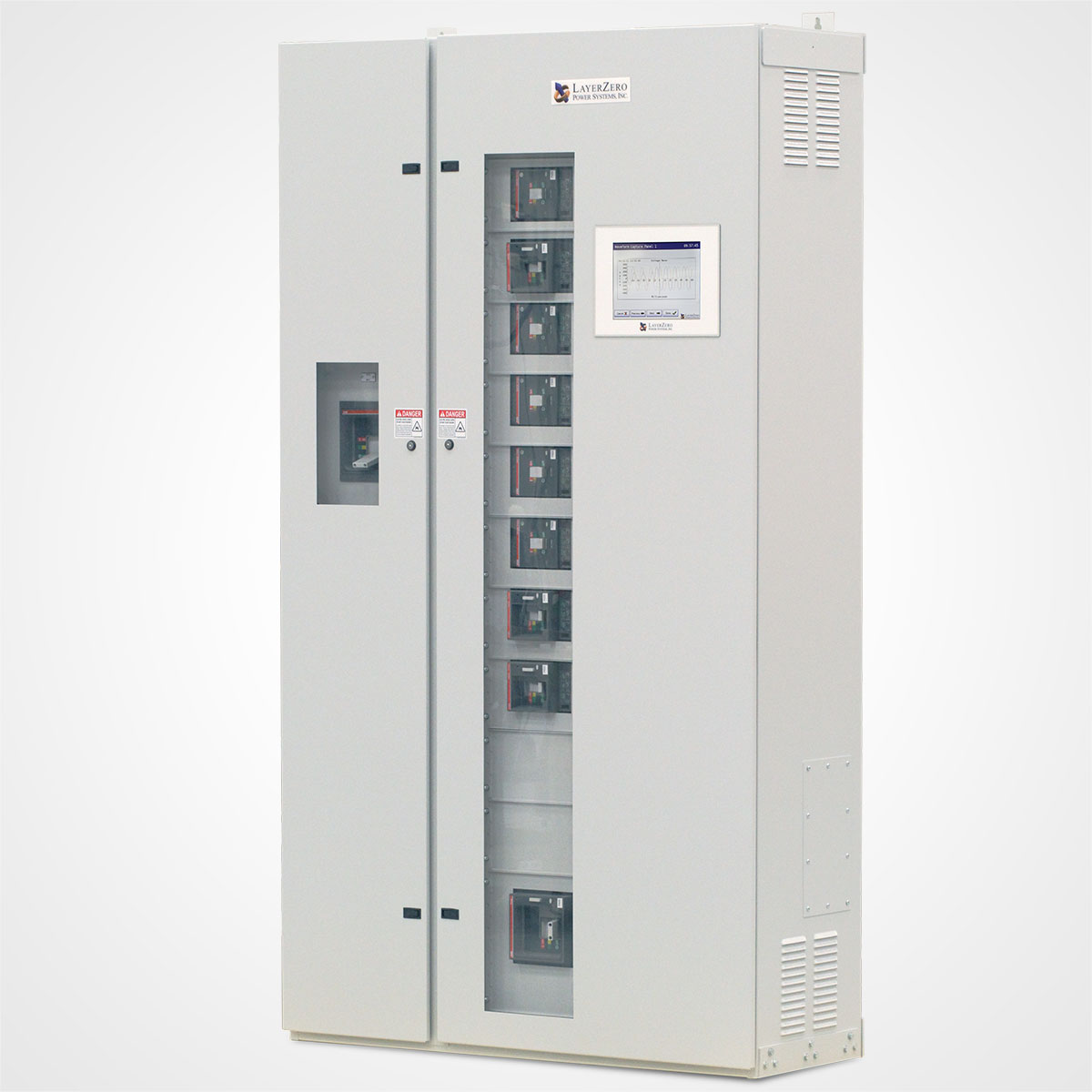

The LayerZero eRDP is a web-enabled remote distribution panel (eRDP) with subfeed distribution. It is a MIMO configuration (multiple inputs, multiple outputs), meaning that it can have multiple input power sources and multiple output circuits. The eRDP is ideal for applications that require high-reliability power distribution in a space-saving design.

The core functionality of the LayerZero eRDP is to distribute power to a large number of circuits, while maintaining selective trip coordination. It can accommodate up to 168 circuit breakers, including both finger-safe and non-finger-safe breakers. This makes it ideal for applications with high power requirements, such as data centers and large industrial facilities.

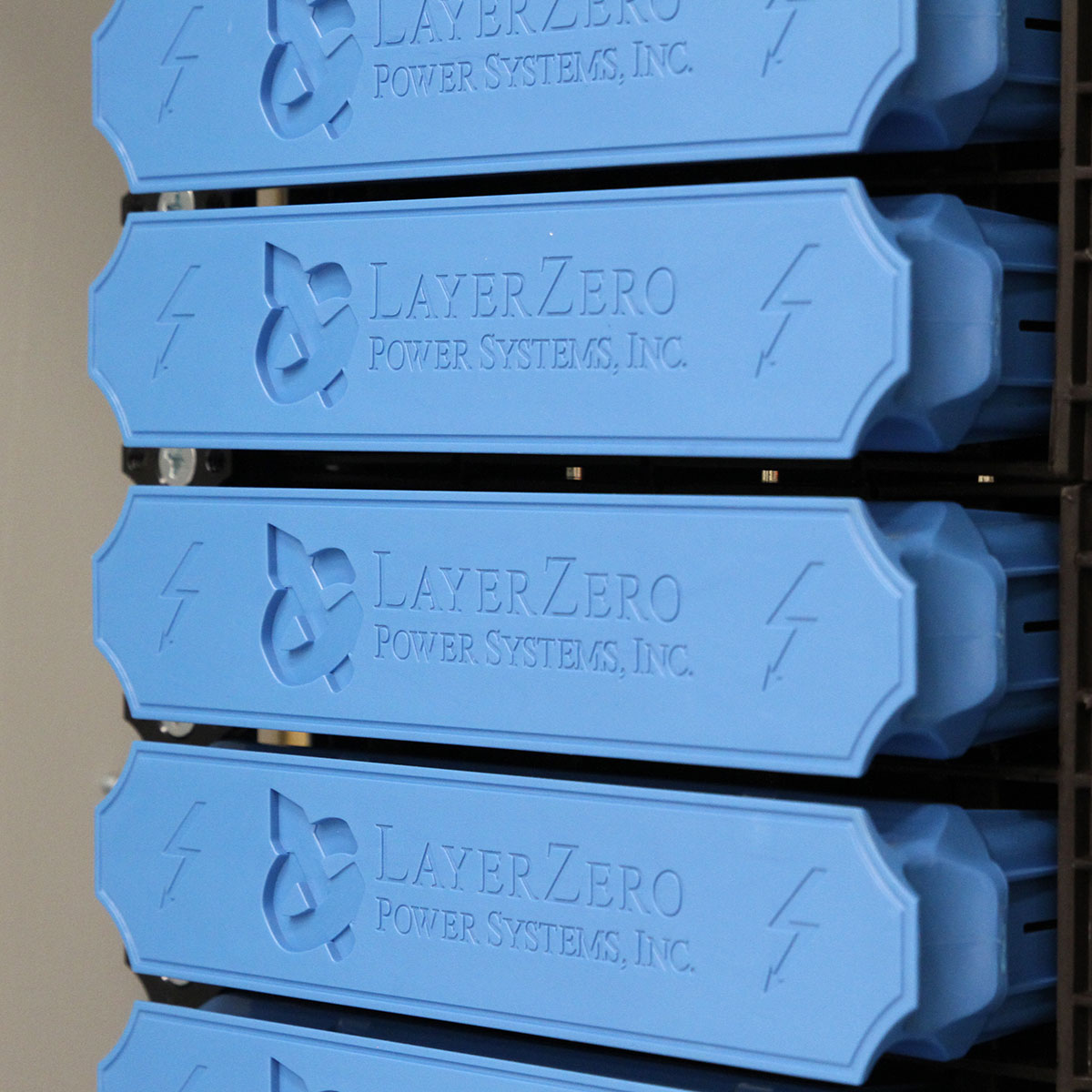

The eRDP also features a number of safety features, including SafePanel distribution, dead front doors, no exposed live parts (NELP) and polycarbonate windows. These features help to protect users and equipment from electrical hazards.

If you are looking for a high-reliability, safe, and versatile power distribution solution, the LayerZero eRDP is a great option.

Documents and Downloads

A one line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.

One Line

A product outline is a technical engineering drawing showing mechanical characteristics of our products.

Product Outline

Product brochures contain information about the product's features, benefits, and specifications.

Product Brochure

Product Specifications

Product Specifications

Physical Specifications

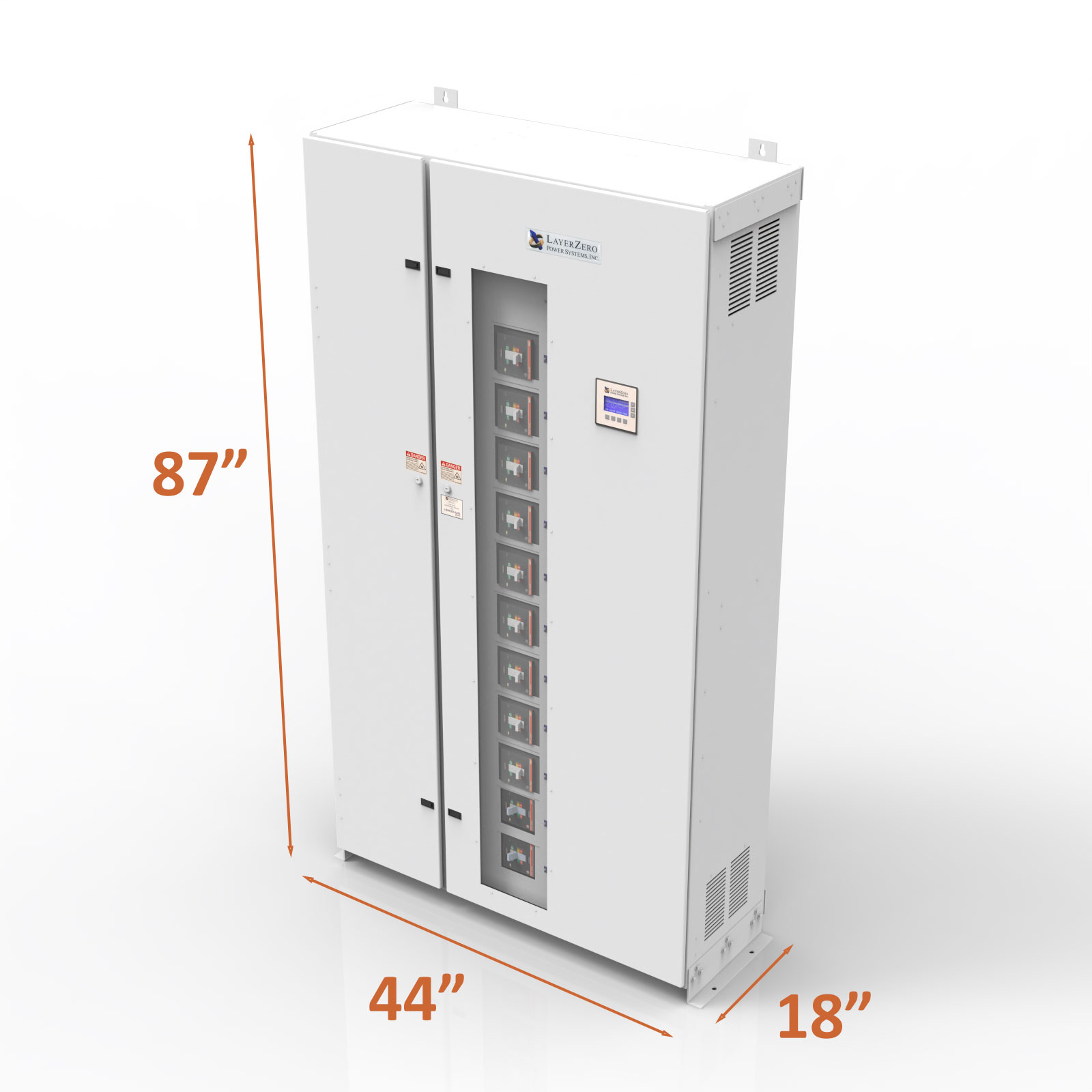

Dimensions 87" x 44" x 18" (2205 mm x 1112 mm x 451 mm)
Weight 1082 lbs (491 kg)
Clearances Front: 42" (1067 mm) Rear: 025" (6 mm) Left: 0.25" (6 mm) Right: 0.25" (6 mm) Right: 42" (1067 mm) W/CB702 Top: 18" (457 mm)

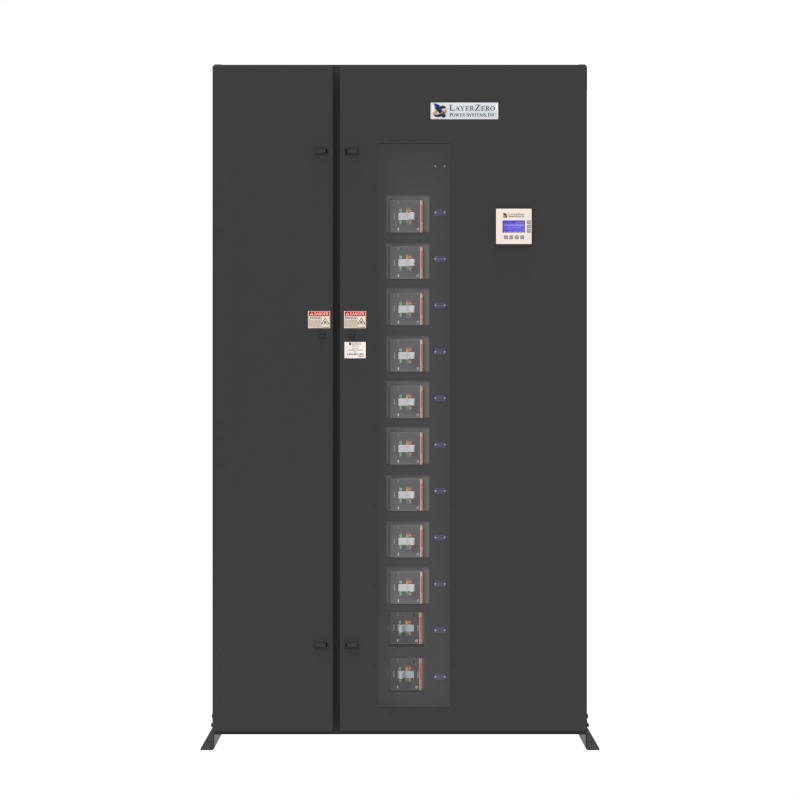

Color Gray, Black
Warranty One-Year Limited Warranty
CSA Rating Certified to CSA STD C22.2#29
UL Rating Conforms to UL STD 67
Distribution Type Subfeed Distribution

System Specifications

System Input Voltage 600V, 3-Phase, 3-Wire + Ground
System Output Voltage 120/208V, 3-phase, 4-wire + Ground
System Output Voltage - 1st Alternate No
System Output Voltage - 2nd Alternate No
Transformer Size 150kVA
Secondary Neutral Rating 200%
Color Light Gray
eSTS Integration No
Input Feeder Terminations Two-hole Compression Lug Terminals
Presence of Primary Side Distribution No
Transformer Input Current Rating 144A
Transformer Output Current Rating 416A
Presence of Secondary Side Distribution Yes
Secondary Distribution Side Both
Secondary Distribution Orientation Side-facing
Distribution Type 42-pole Branch Circuit Distribution and Subfeed Breakers
Total Quantity of Branch Circuit Panel Boards 4
Total Quantity of 225A Branch Circuit SafePanels 4
Total Quantity of 400A Branch Circuit SafePanels 0
Exposed Live Parts or No Exposed Live Parts Exposed Live Parts (ELP)
Subfeed Circuit Breaker Type Subfeed Distribution
Secondary Subfeed Type 1200A SafePanel
Secondary Subfeed Panel Board Quantity 1
Presence of Primary Main Circuit Breaker Yes
Presence of Primary Auxiliary Circuit Breaker No
Sync Check Relay Required N/A
Presence of Kirk Key Interlock N/A

Main Circuit Breaker (CB701)

Frame Rating 800
Circuit Breaker Type Electronic Trip (LSIG)
Circuit Breaker Mounting Type Draw-out
Max Steady State Rating 800
Percent Rating 100
Fault Rating at Rated Voltage 65kAIC @ 480VAC
Presence of Shunt Trip No
Presence of CB Position Indications No
Presence of Lockout/Tag-out Bracket Yes
Number of Poles 3
Supplier ABB

1200A SafePanel 1

Current 1200
Withstand 65
Supplier ABB

Safety Features

Safety Features

The LayerZero ePanel HD2 is designed for maximum operator safety. It uses a sectionalized design, which means that the power quality monitoring is housed in a separate section from the circuit breakers and customer cable connections. This compartmentalized design allows the equipment to be safely operated and serviced.

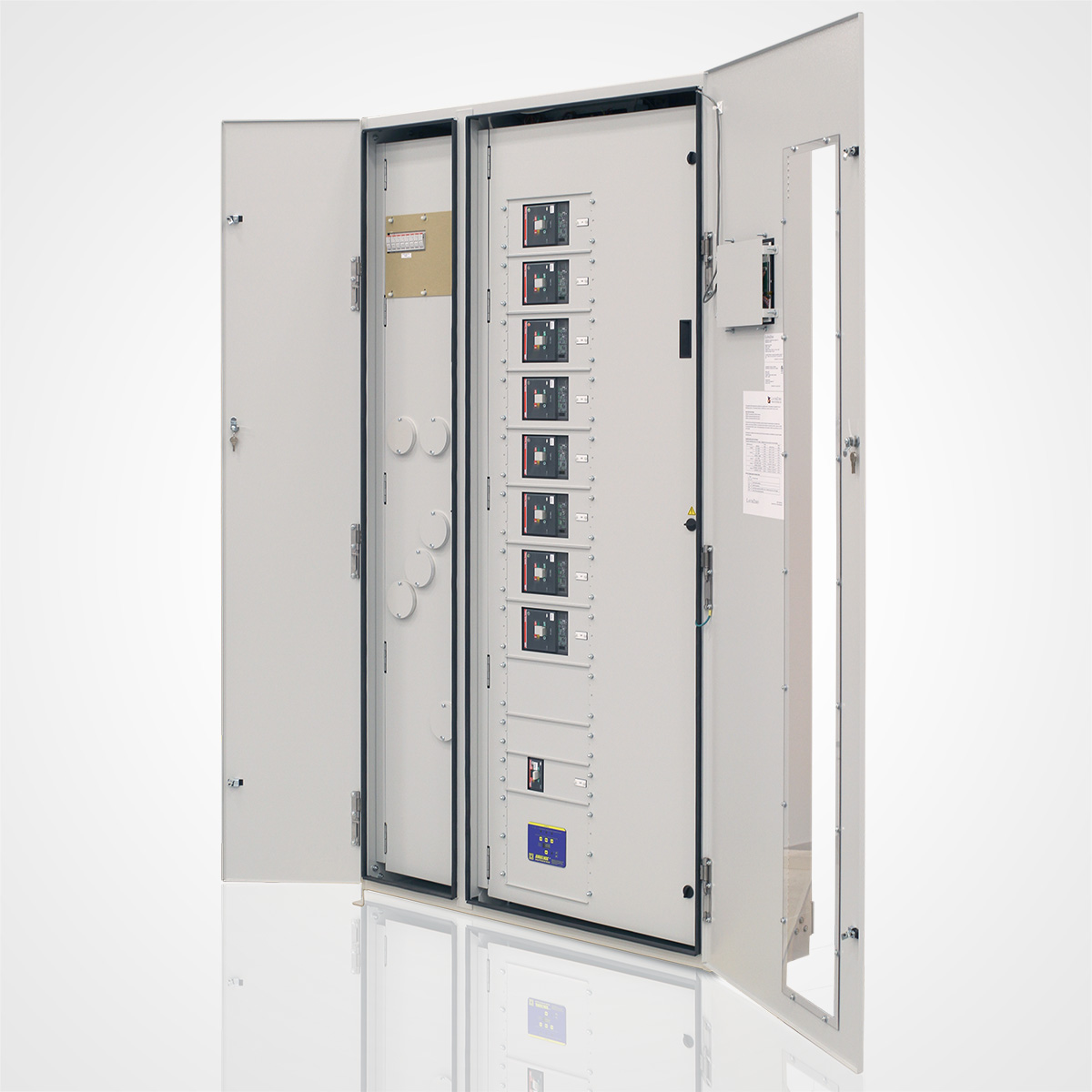

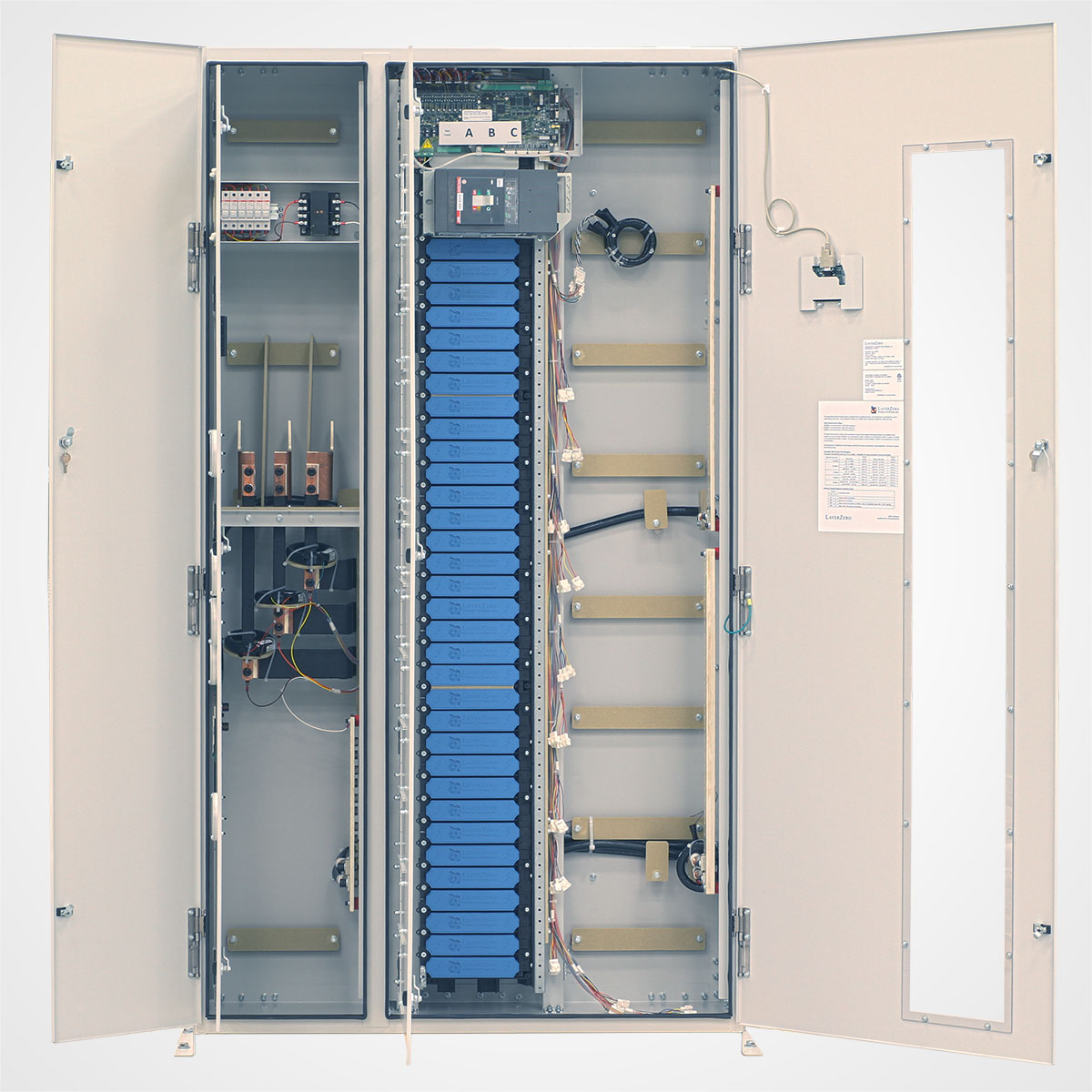

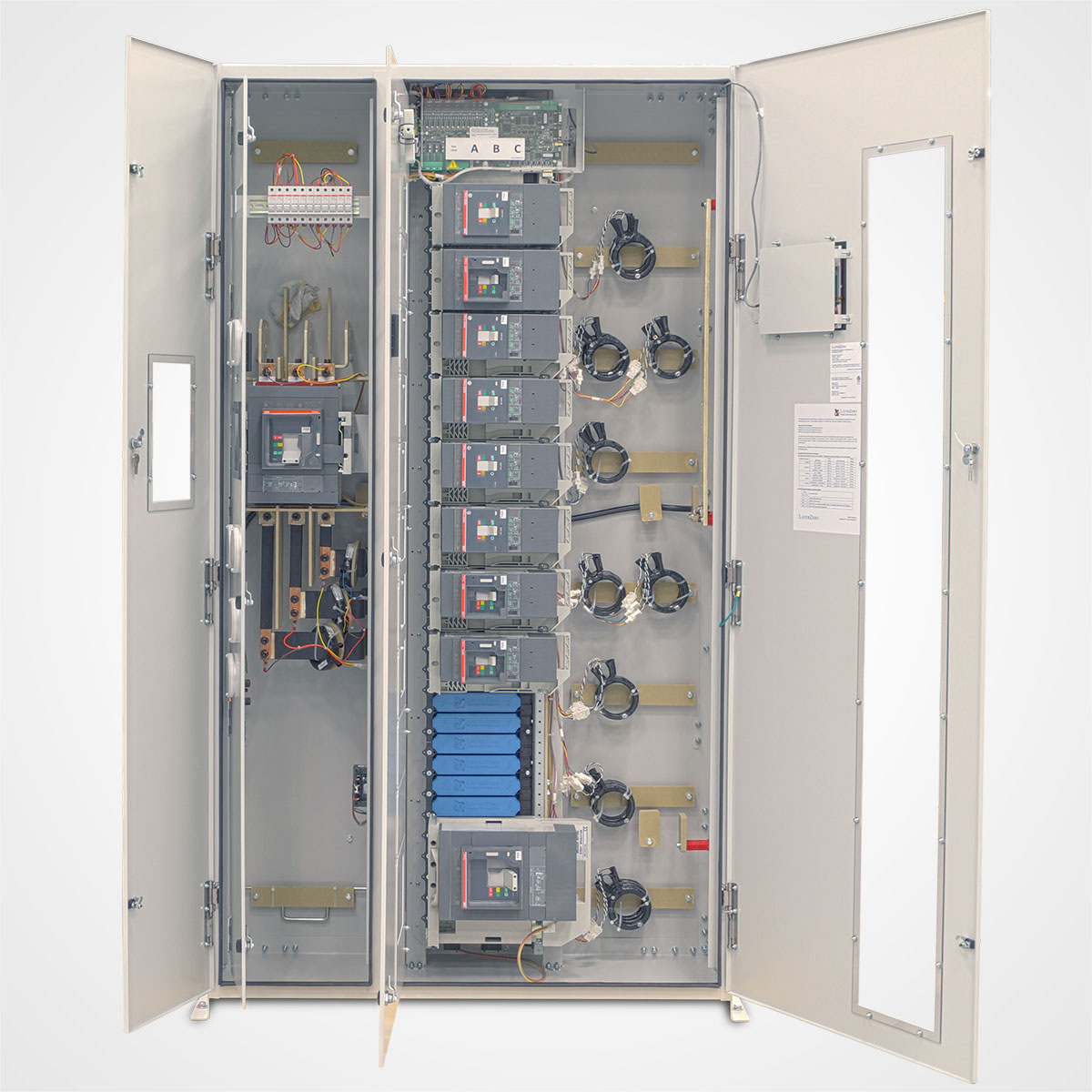

In normal operation, the inner dead-front doors of the HD2 remain closed.

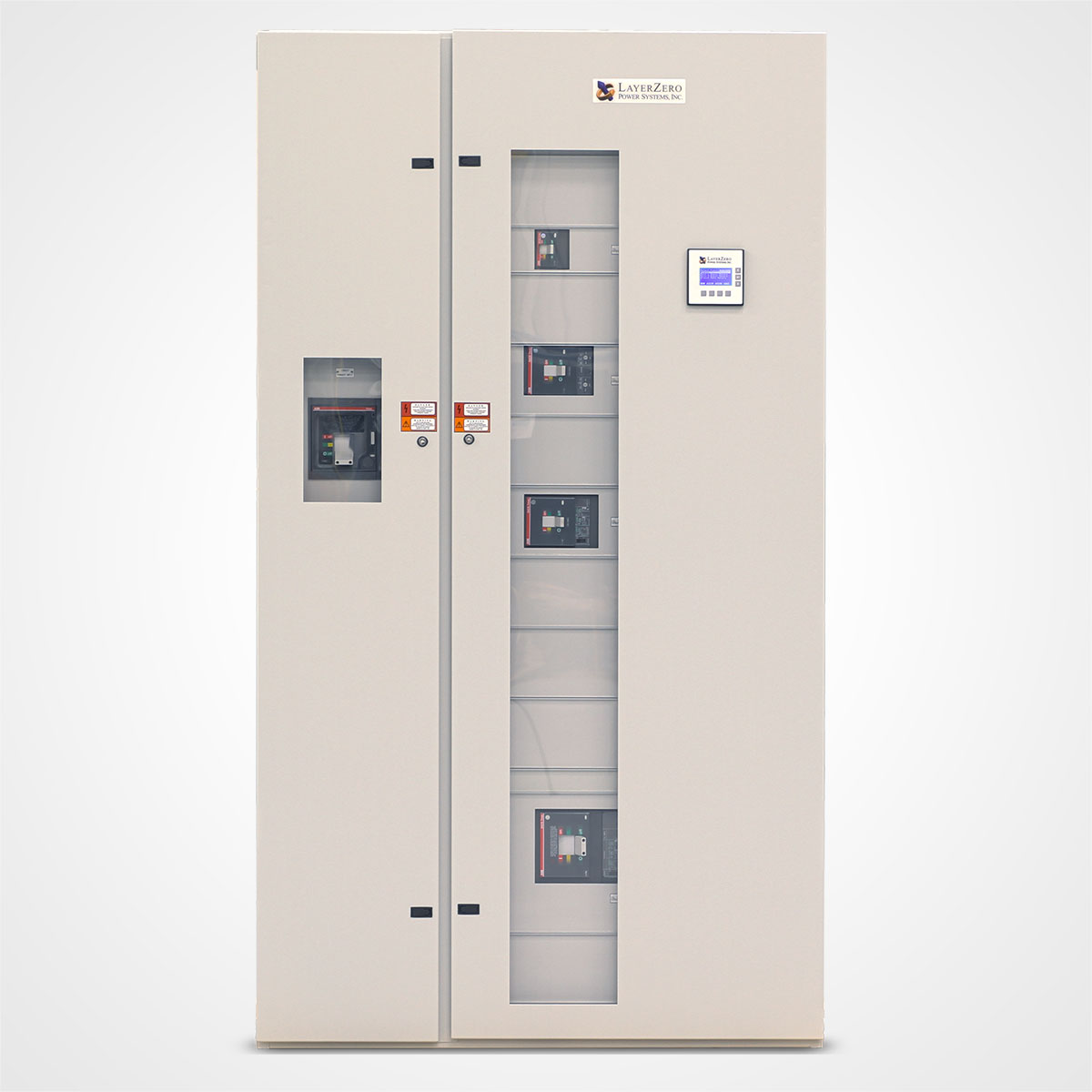

A polycarbonate window in the door allows operators to safely view the circuit breaker positions with the dead front door closed. INSIGHT IR® cameras (optional) or an IR Port (standard) provides the ability to monitor the temperatures of critical connections with the doors safely closed.

The LayerZero Power Systems ePanel HD2 is a safe and reliable piece of equipment that is designed to protect operators and equipment.

Reliability Features

Reliability Features

The LayerZero ePanel HD2 is a highly reliable Remote Power Panel designed to provide power distribution and monitoring for critical applications. It offers advanced safety and reliability features to ensure consistent and dependable power delivery.

The ePanel HD2 is built with high-quality components, ensuring long-lasting performance and reliability. HD2 features silver-plated connections, which enhance conductivity and minimize resistance, resulting in optimal power transmission.

With its comprehensive design, the ePanel HD2 is capable of meeting the demands of various operating conditions. It incorporates a seismic rating, making it suitable for installations in seismically active areas. This ensures the stability and performance of the panel, even during earthquakes.

The ePanel HD2 also incorporates serialized board tracking, enabling easy identification and tracking of individual boards within the panel. This feature simplifies maintenance and troubleshooting, such as having the ability to detect for part defects.

With its reliable performance, advanced features, and safety-focused design, the LayerZero ePanel HD2 is an excellent choice for organizations that require a dependable and safe remote power panel to support their critical applications.

Power Quality Monitoring Features

Power Quality Monitoring Features

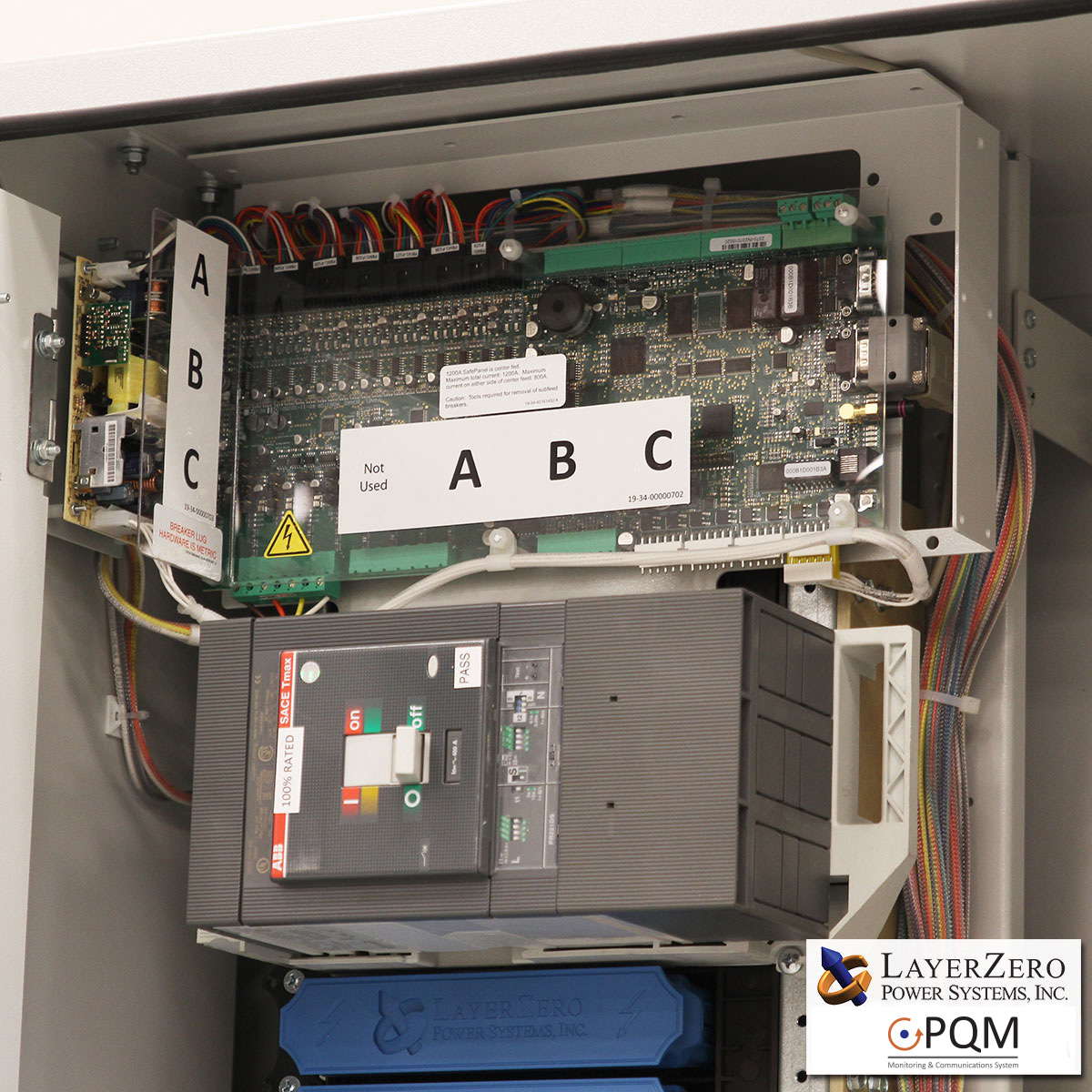

The LayerZero ePanel HD2 is equipped with an advanced Power Quality Monitoring (PQM) system that provides local and remote access using non-proprietary protocols. The PQM system includes basic monitoring, alarms, waveform capture, and ITIC plotting capabilities.

The ITIC plotting utility is used to audit the quality of transfers.

Connectivity Features

Connectivity Features
  • Ethernet Connectivity: This port is used to connect to to a network.
  • Modbus/TCP: This protocol is used to communicate with BMS systems.
  • SNMP Connectivity: This protocol is used to manage the switch remotely.
