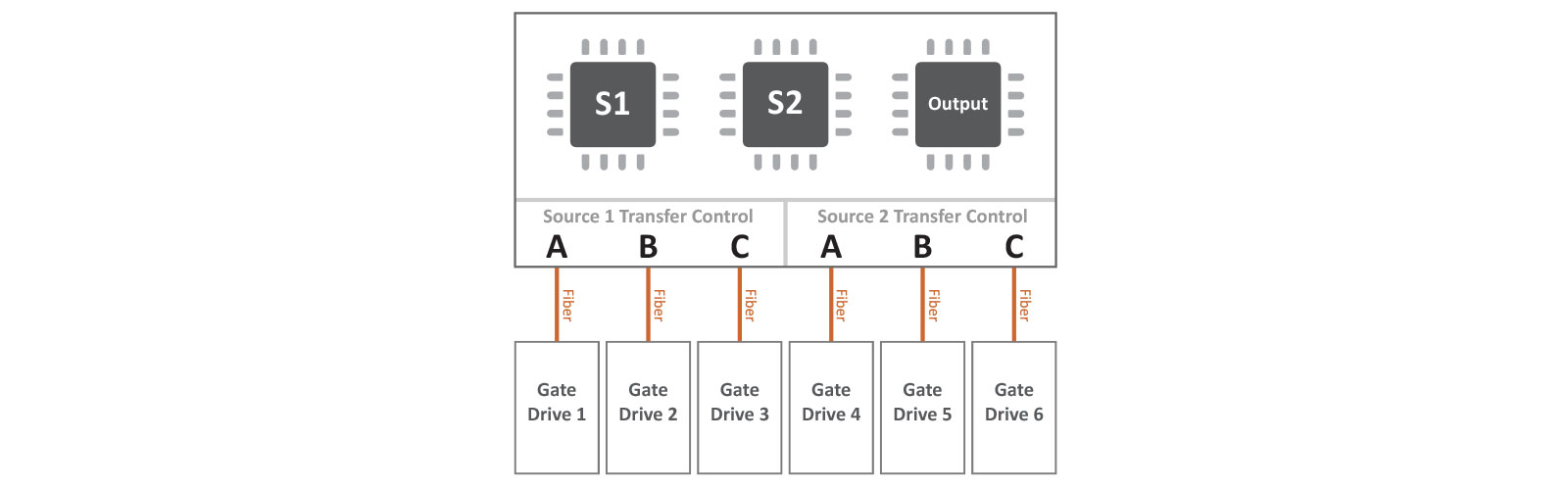

Triple Digital Signal Processors

Triple Digital Signal Processors provide the benefits of:

• Separate/independent processors for Source 1, Source 2 and Output power quality analysis

• If Source 1 processor malfunctions then system is able to be commanded to transfer to Source 2; & vice versa.

• If main control system fails then STS continues to conduct power to the load from the existing source of power. (However STS is unable to transfer to the other source)

• Each phase of each source is controlled with a separate gate drive circuit board.



Triple Digital Signal Processors
