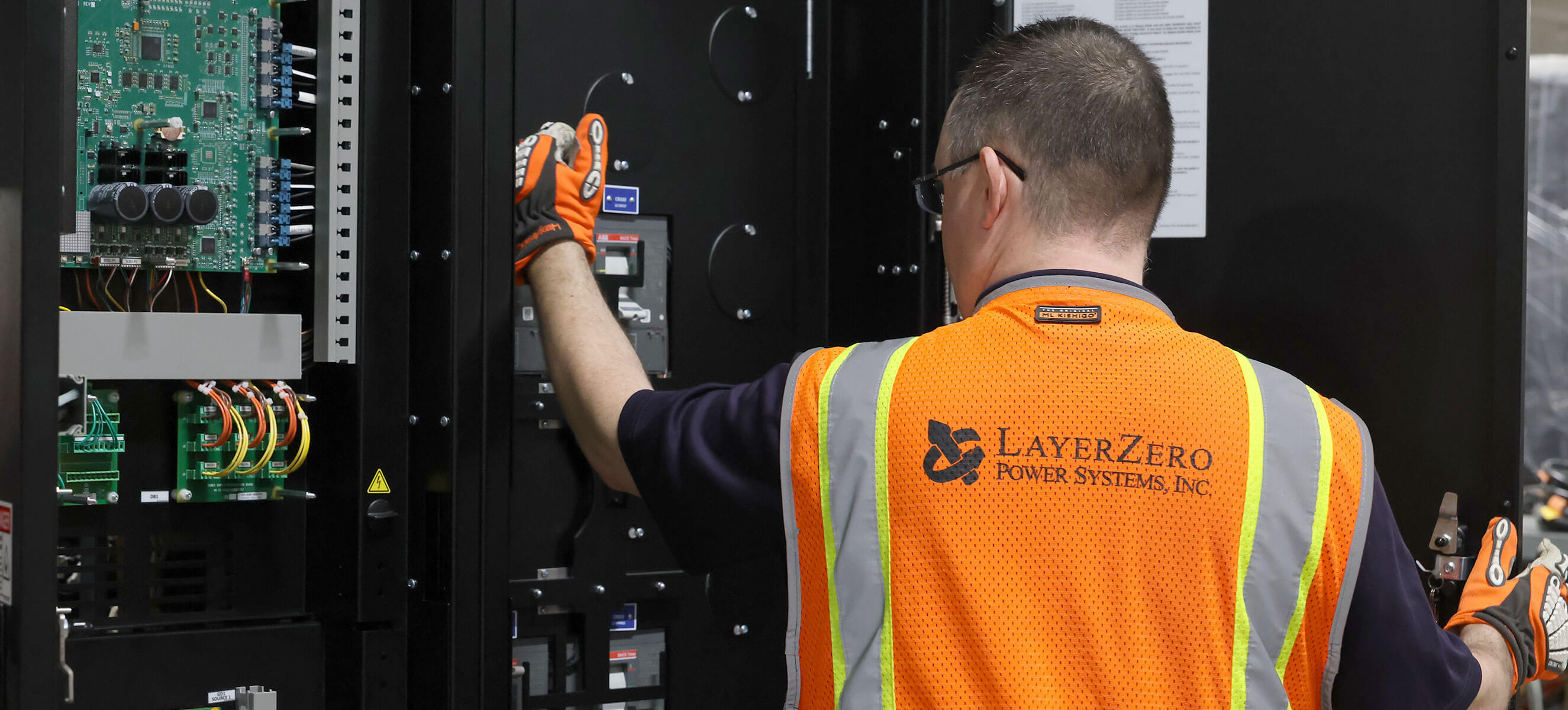

Innovative Bypass Mechanisms

The bypass procedure employs a unique safe measure to improve operator safety. Mechanisms have been built into the equipment to ensure that the procedure itself can only be completed in a correct sequence.

A mechanical "double goalpost" constrains the operator's behavior so that breakers can only be moved in a sequence that will protect the operator from error and maintain the load.

In addition, the 15" touch-screen graphical user interface (GUI) guides the user step-by-step through the bypass procedure.

The GUI contains written instructions, videos of the procedure, and audio instructions for each step. If any of the steps are completed out of sequence, the software lets the operator immediately know that the procedure is incorrect.

Bypass Interlock Mechanism Interactive Demo

0%
eSTS Static Transfer Switch Modes of Operation
Normal Mode to Bypass Mode On Source 1
Normal Mode to Bypass Mode On Source 2
Bypass Mode in Source 1 to Normal Mode
Bypass Mode in Source 2 to Normal Mode
. Input 1 Input 2 CB 201 CB 101 SCR 1 CB 102 CB 202 SCR 2 CB 301 CB 302 Load

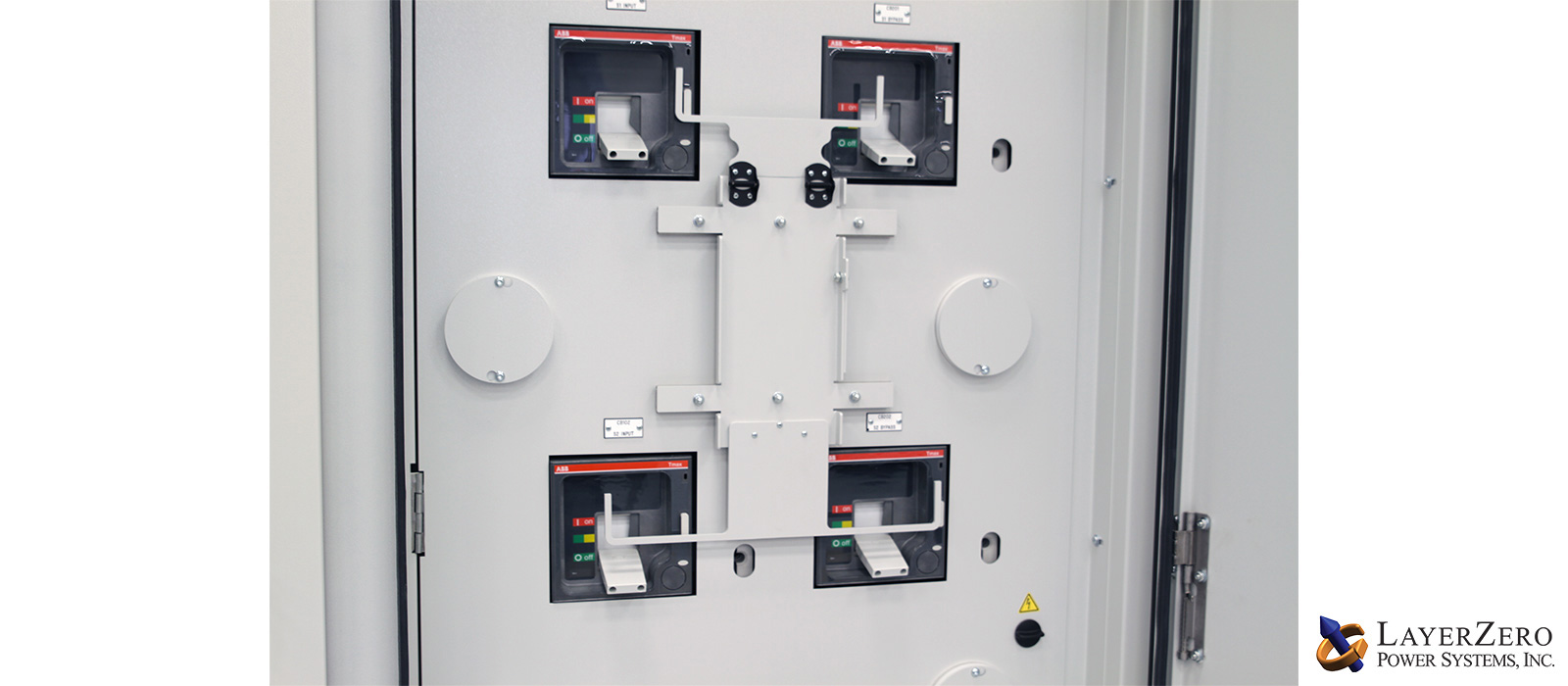

Bypass Interlock Mechanism Photo

LayerZero Mechanical Bypass Interlock
