LayerZero Technologies

LayerZero Power Systems engineering applies impeccable attention to detail, taking novel and groundbreaking approaches towards routine problems that are experienced in the data center.

LayerZero sets its own standards, thinking in a "Mode of Reliability". Uptime is the reason behind all of our design features.

Most of these technology advancements were developed years before similar systems, and they include a variety of features that are exclusive to LayerZero.

The technologies inside LayerZero systems are designed to maximize system reliability, increase operator safety, and enable connectivity within the equipment.

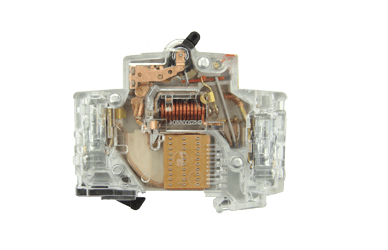

Selective Trip Coordination

Protecting Upstream Devices

Selective trip coordination in the most critical distribution segment of branch circuit protection.  Selective Tripping means that when a fault occurs anywhere in the distribution system, one and only one breaker will trip. That breaker will always be located upstream and closest to the fault.

LayerZero Power Systems products have been designed and tested for coordination, assuring that if a downstream fault occurs, upstream devices will be protected.

Selective Trip Coordination

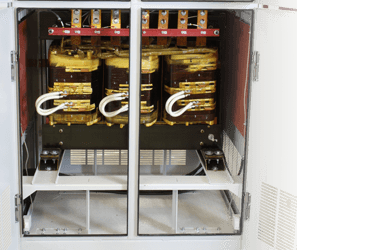

Inrush Mitigation

Inrush Mitigation

Eliminating Transformer Inrush

Our exclusive Dynamic Phase Compensation technology helps protect upstream sources and downstream critical loads from transformer inrush currents by constantly monitoring the power, and introducing an appropriate delay during switching.

This delay significantly reduces inrush currents for out-of-phase transfers, preventing upstream tripping, and eliminating potential UPS overload.

Inrush Mitigation

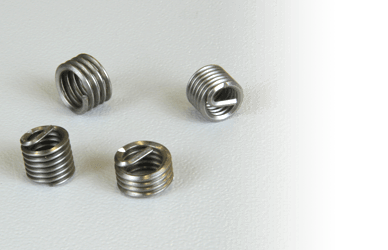

Machined Hardware

Machined Hardware

High Precision Hardware

Our bolted connections utilize machined cap screws and engineered disc springs. The result is a flat pressure vs deflection profile to ensure that all bolted connections maintain constant torque through the life of the product.

These technologies have been well tested in disparate environments of wide temperature ranges to help ensure that, once connections have been tightened, they stay that way.

Machined Hardware

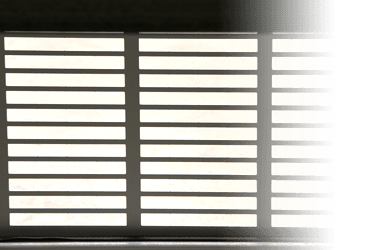

Convection Cooling

Convection Cooling

Solving The Heat Problem

To address the issues associated with heat dissipation, LayerZero has developed a convection cooled exhaust system up to and including 1200 A. The advantages of this architecture include:

• No fans
• No fan transformers
• No fan transformer fuses

Convection Cooling

Maintenance-Free Joints

Brazed Joints

Brazed Invisible Joints

Brazed joints are virtually invisible when it comes to maintenance. They ensure a strong, sealed construction that is more long-lasting than traditional welds.

LayerZero systems are durable, sturdy, and built to last.

Maintenance-Free Joints

Epoxy Coated Buswork

Epoxy Coated Buswork

Safe, Reliable Buswork

Many of our electrical components include a durable protective epoxy coating.

The use of epoxy coated buswork allows us to maximize efficiency, precision, help ensure safety, and be highly resistant to corrosion.

Epoxy Coated Buswork

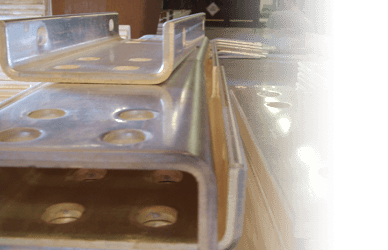

Silver Plating

Silver Plating

Providing Excellent Conductivity

LayerZero utilizes silver plating on all of its copper bus connection points in order to provide the highest performance possible.

Silver has high conductivity and low resistance - which makes for a great contact surface.

Silver Plating

Connectivity

Open Communication

Well-Connected Solutions

We offer a variety of connectivity options to an array of open protocols, which empowers operators to collect information such as metering, alarms, waveforms, setpoints, event logs, panel setup, and diagnostics. Supported protocols include:


• Modbus
• https://
• SNMP
• Bluetooth
• Dry Contacts

Connectivity

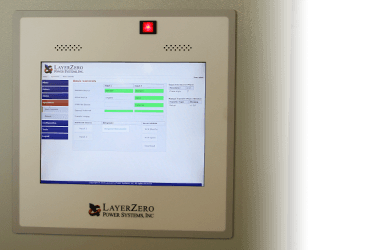

Touch Screen Interface

Touch-Screen Interface

An Intuitive GUI

All functions of our eSTS and ePODs units are controlled through a 15" color touch screen LCD mounted to the front of the unit, which utilizes fiber optics to isolate the control section from the rest of the unit.

The touch-screen features power flow diagrams, step-by-step instructions, waveforms, metering and all alarm information. In the unlikely instance of a failure of the display module, our eSTS and ePODs will maintain full switching and distribution functionality.

Touch Screen Interface

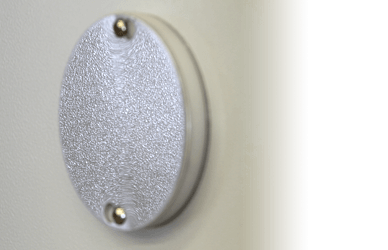

Stainless Steel Hardware

Stainless Steel Hardware

Stainless steel hardware available as an option

Zinc whiskers are filaments of zinc that grow on galvanized metal surfaces. Zinc whiskers are conductive, and will cause short circuits if they bridge electrical conductors.

Zinc whisker-induced short circuits have been cited as the direct cause of many catostrophic data center failures in recent years.

Stainless Steel Hardware
