ePanel HD1 Remote Distribution Panel

The LayerZero ePanel HD1 is a web-enabled remote power panel that delivers reliable, high-density power from a single input to multiple outputs. With SafePanel® distribution, finger-safe design, and built-in safety features, it provides secure, space-efficient power management for demanding environments.

Power Topology SIMO
Seismic Compliance
Designed to meet seismic requirements for mission-critical installations.
Selective Trip Coordination
Selective-trip coordination is a method of coordinating the operation of circuit breakers so that only the circuit breaker closest to a fault trips.
Loading interactive view…

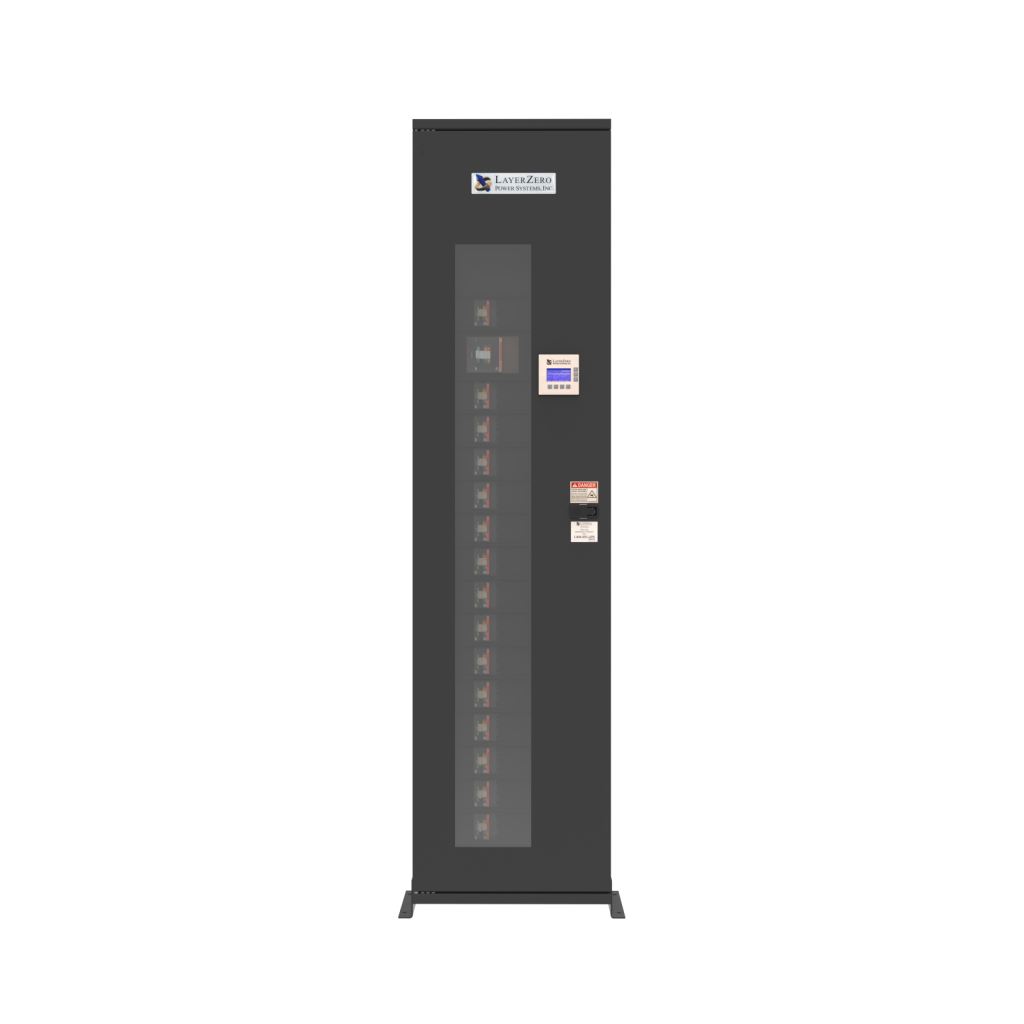

Black Finish
Gray Finish

Features and Benefits

SafePanel
IP20 finger-safe branch circuits
Safety-Focused Power Distribution
Seismic
Seismic AC156
Shake-table tested
Touchscreen guided bypass
Touchscreen UI
Voice-guided bypass
Waveform Capture
Waveform Capture
See real-time events
VDAT Plotting
VDAT / ITIC
Disturbance analysis

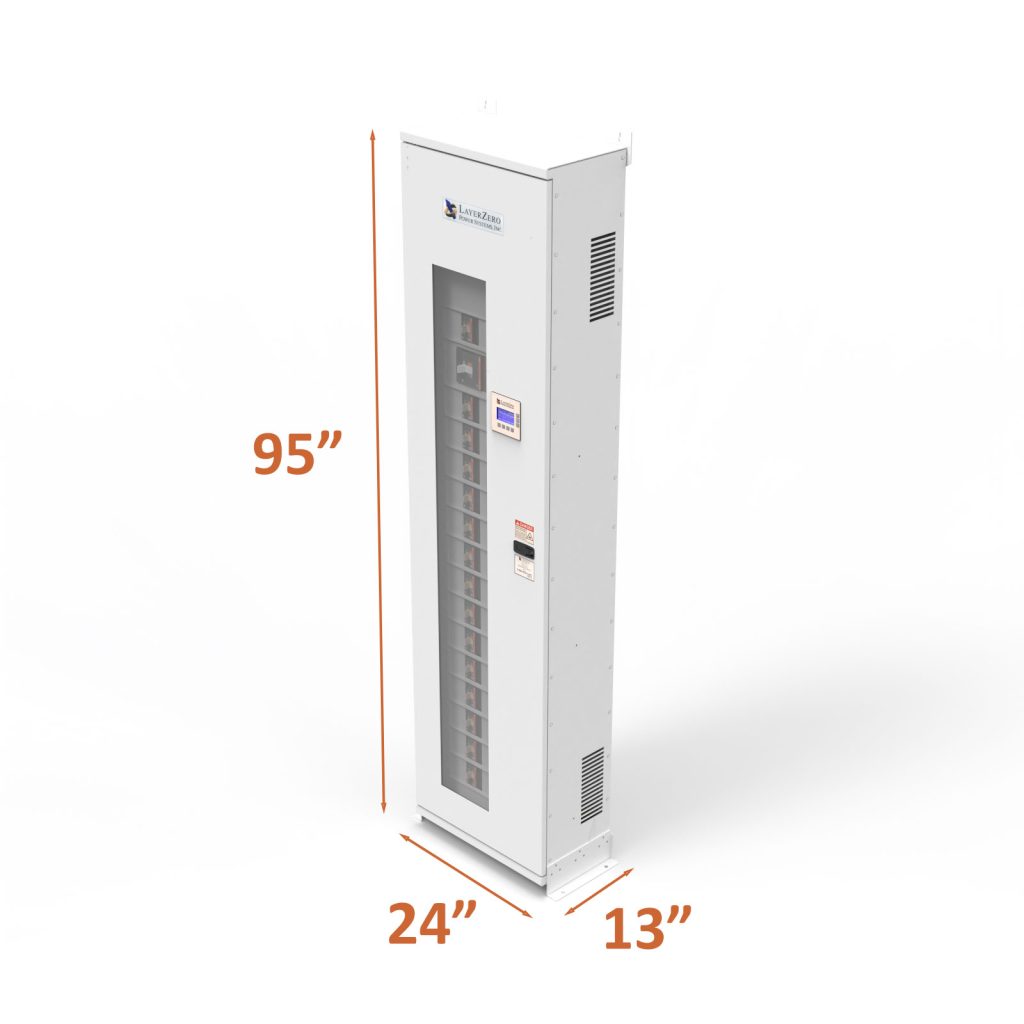

Compact Footprint. No Side or Rear Access Required.

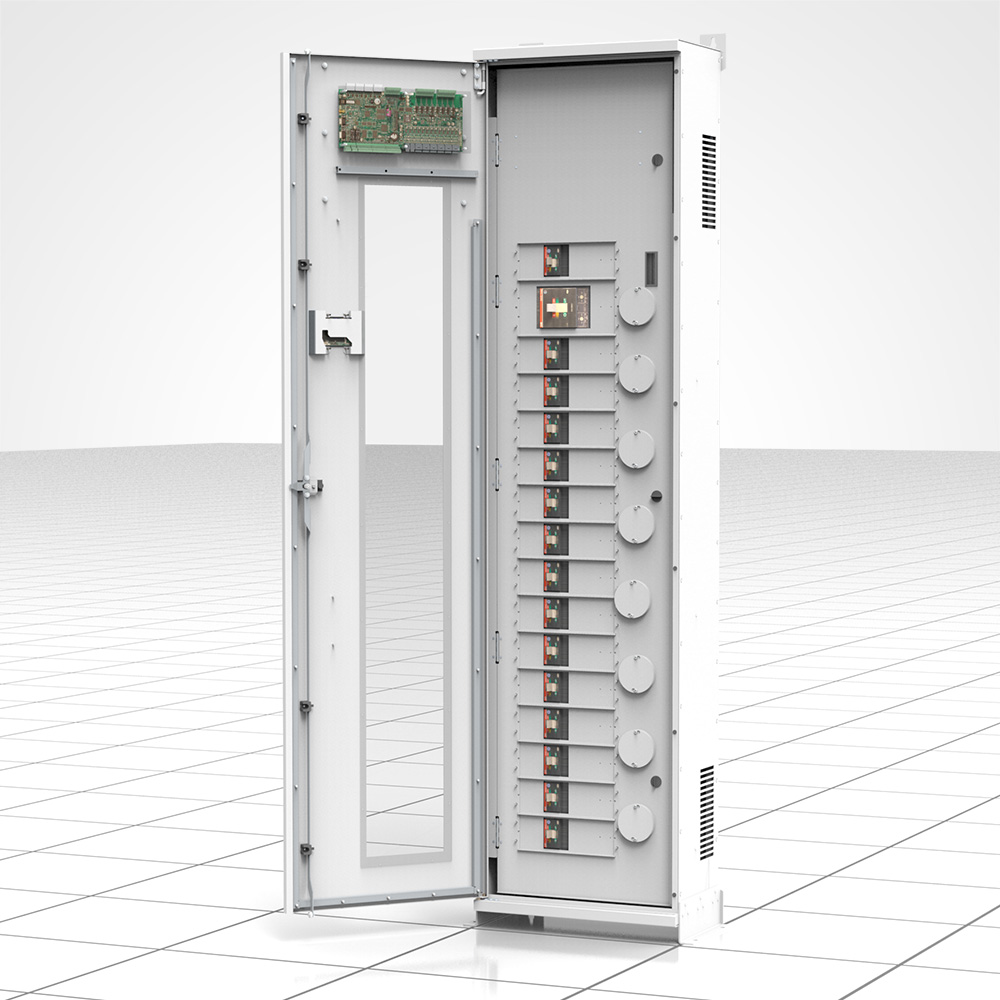

A tall, white LayerZero Power Systems ePanel-HD1 with orange dimension arrows indicating a height of 95 inches, a width of 24 inches, and a depth of 13 inches. A light grey LayerZero Power Systems, LLC. ePanel-HD1 with its outer door swung open. The interior reveals a central "dead front" panel featuring a vertical column

Specifications

Copy Specs into email / Excel

Electrical Specifications

Current1600 A
Nominal Input Voltage480 V
Nominal Output Voltage480 V
Poles3

Mechanical Characteristics

Height91 in (2311 mm)
Width24 in (610 mm)
Depth13 in (330 mm)
Weight450 lb (204.1 kg)

Documents & Downloads

One-line diagram showing eRPP-SL1 power distribution with main breaker, metering points, and 42-pole panel board
One-Line Diagram

A one-line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.

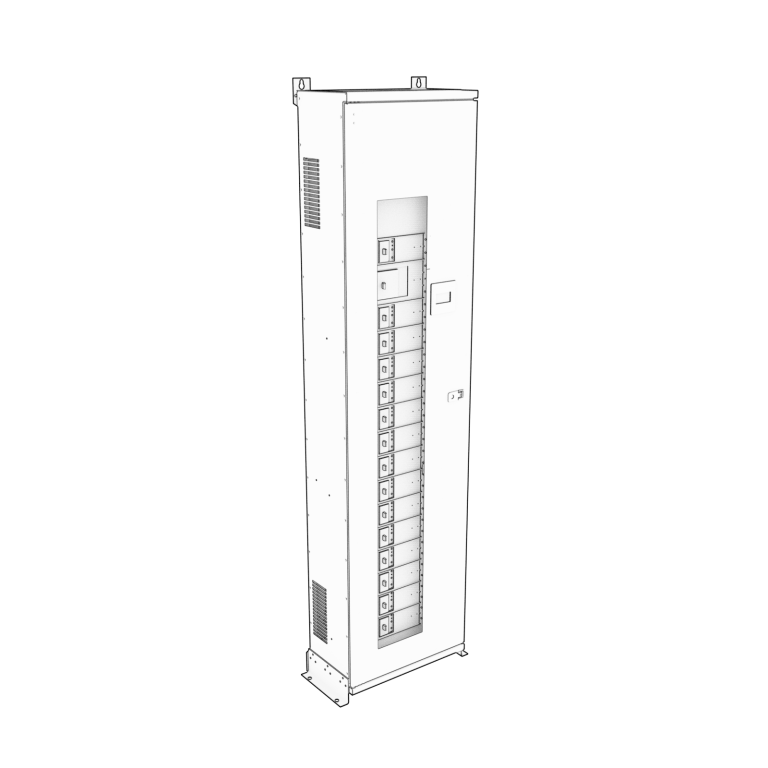

Outline drawing of the eRDP-HD1 power distribution panel showing enclosure form and front-access layout
Product Outline

A product outline is a technical engineering drawing showing mechanical characteristics of our products.

LayerZero Power Systems brochure cover for mission-critical power solutions
Product Brochure

Product brochures contain information about the product's features, benefits, and specifications.

360° Spin

Manufacturing & Quality Assurance

  • Automated machining & robotics
  • Serialized tracking of every critical board
  • 100% end-of-line testing
  • Vertical integration for consistent quality
