ePanel HD2 Remote Distribution Panel

The LayerZero ePanel-HD2 delivers reliable, web-enabled power distribution in a compact, wall-mounted design, making it an ideal solution for data centers and industrial environments that demand high circuit density, enhanced safety, and efficient use of space.

Power Topology SIMO

Mounting Wall-mounted

Seismic Compliance

Designed to meet seismic requirements for mission-critical installations.

Selective Trip Coordination

Selective-trip coordination is a method of coordinating the operation of circuit breakers so that only the circuit breaker closest to a fault trips.

Loading interactive view…

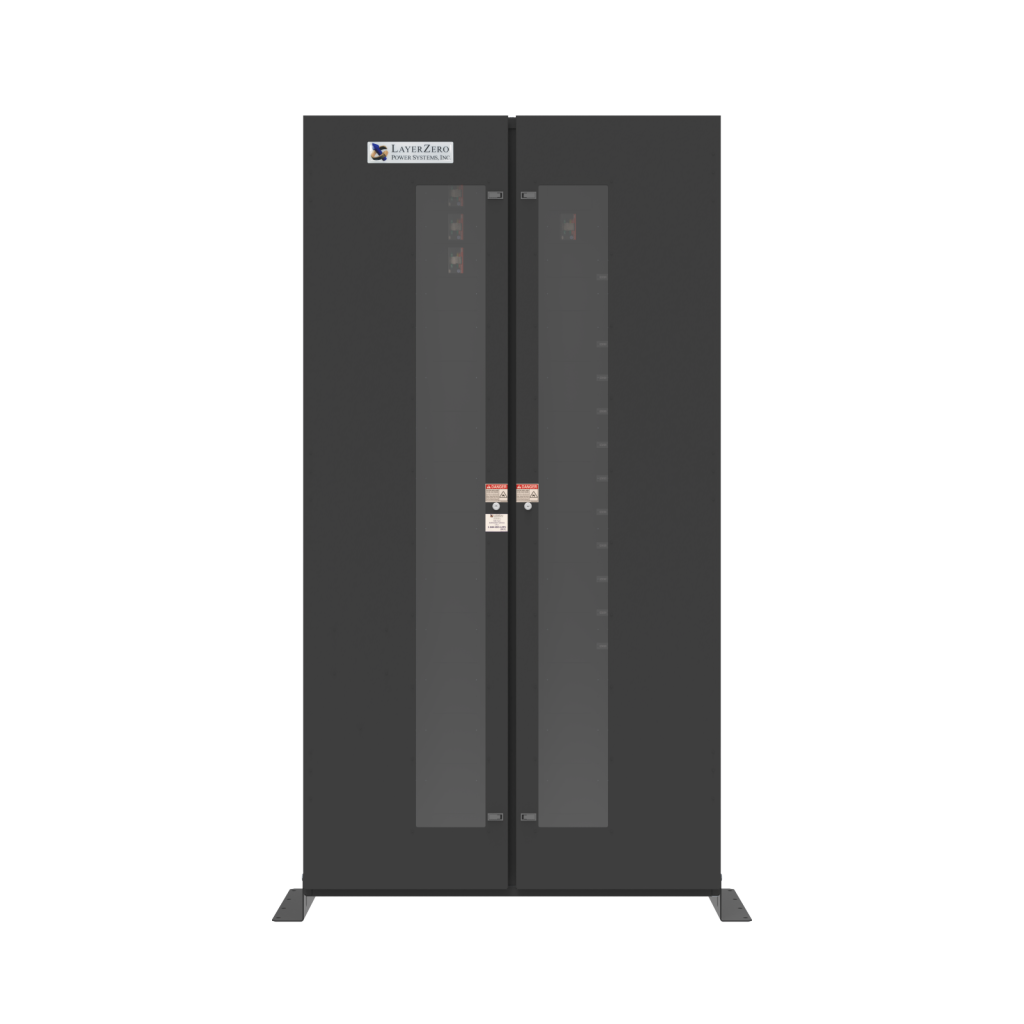

Black Finish

Gray Finish

Features and Benefits

IP20 finger-safe branch circuits

Safety-Focused Power Distribution

Seismic AC156

Shake-table tested

Touchscreen UI

Voice-guided bypass

Waveform Capture

See real-time events

VDAT / ITIC

Disturbance analysis

Compact Footprint. No Side or Rear Access Required.

Spacing Saving Design

Compact dimensions

Wall-Mounted Design

Makes the most of available critical white space

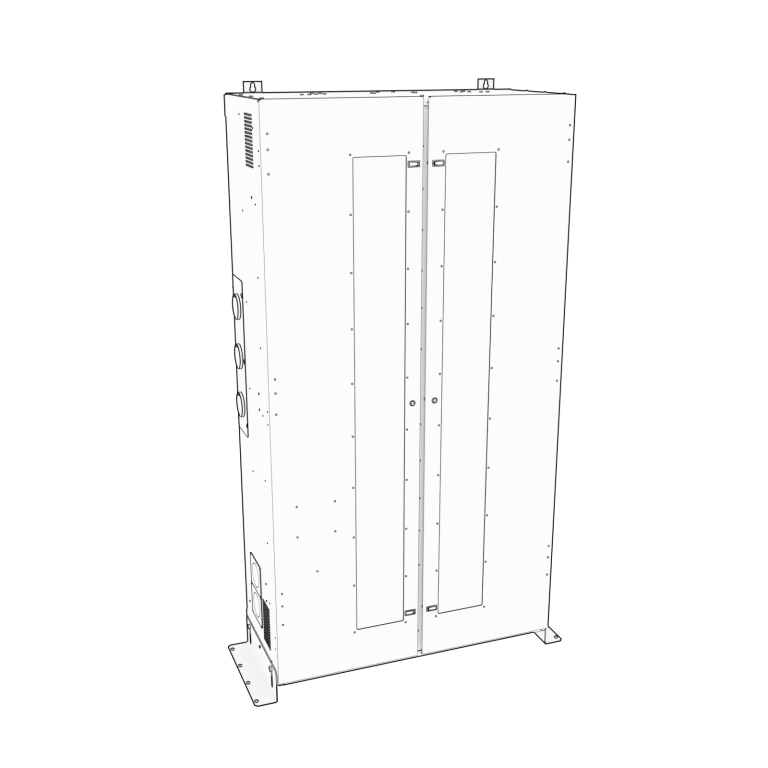

A tall, white LayerZero Power Systems ePanel-HD2 with orange dimension arrows indicating a height of 90 inches, a width of 54 inches, and a depth of 21 inches.

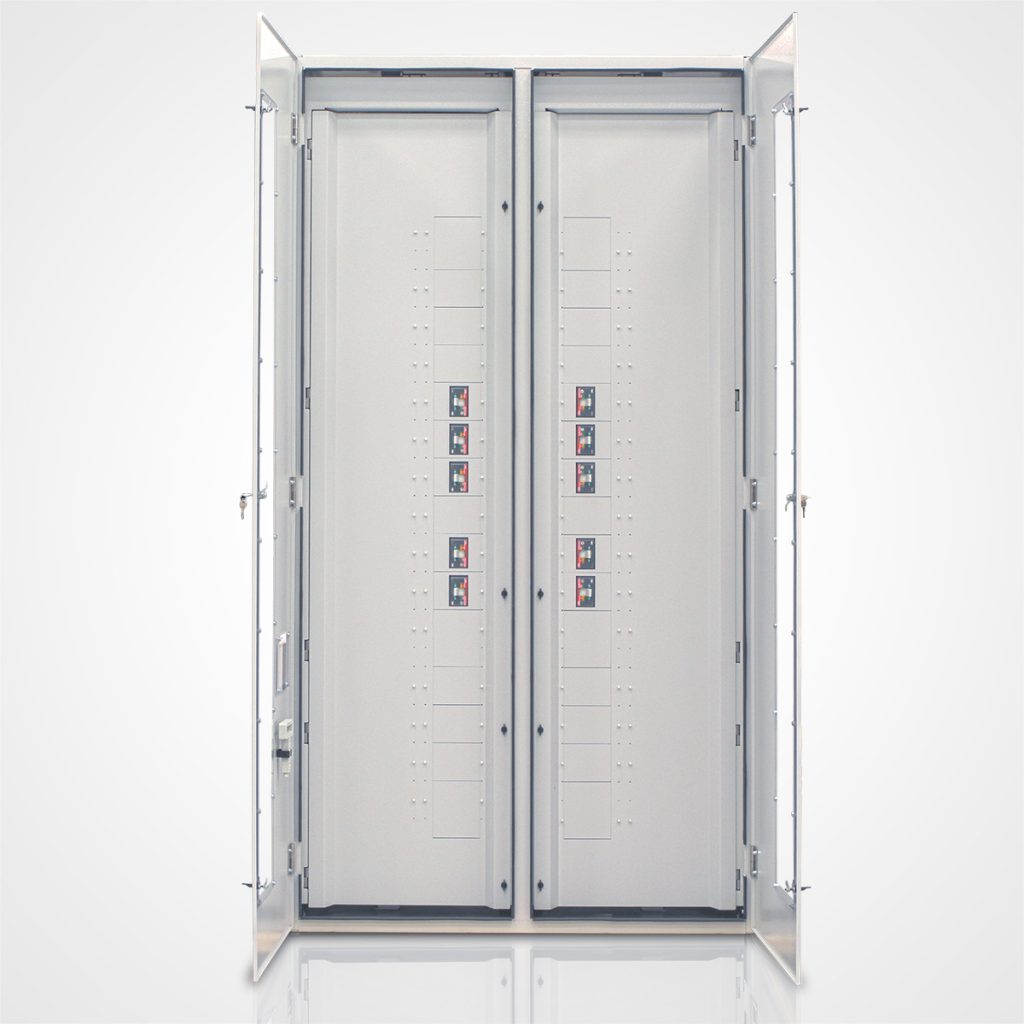

A light grey LayerZero Power Systems, LLC. ePanel-HD2 with its outer doors swung open. The interior reveals a central "dead front" panel featuring a vertical column

Specifications

Copy Specs into email / Excel

Electrical Specifications

Current	1600 A
Nominal Input Voltage	240/415V V
Nominal Output Voltage	240/415V V
Poles	3

Mechanical Characteristics

Height	90 in (2286 mm)
Width	54 in (1372 mm)
Depth	21 in (533 mm)
Weight	550 lb (249.5 kg)

Documents & Downloads

One-Line Diagram

A one-line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.

Download PDF
