ePanel-2 Remote Power Panel

The LayerZero ePanel-2 is a web-enabled remote power panel (eRPP) designed for safe, high-reliability power distribution is space-constrained environments. With 42-circuit SafePanel® distribution and a compact wall-mounted design, it delivers efficient, secure power for mission-critical data centers and industrial applications.

Power Topology SIMO
Mounting Wall-mounted
Branch Circuits Up to 42
Seismic Compliance
Designed to meet seismic requirements for mission-critical installations.
Selective Trip Coordination
Selective-trip coordination is a method of coordinating the operation of circuit breakers so that only the circuit breaker closest to a fault trips.
Loading interactive view…

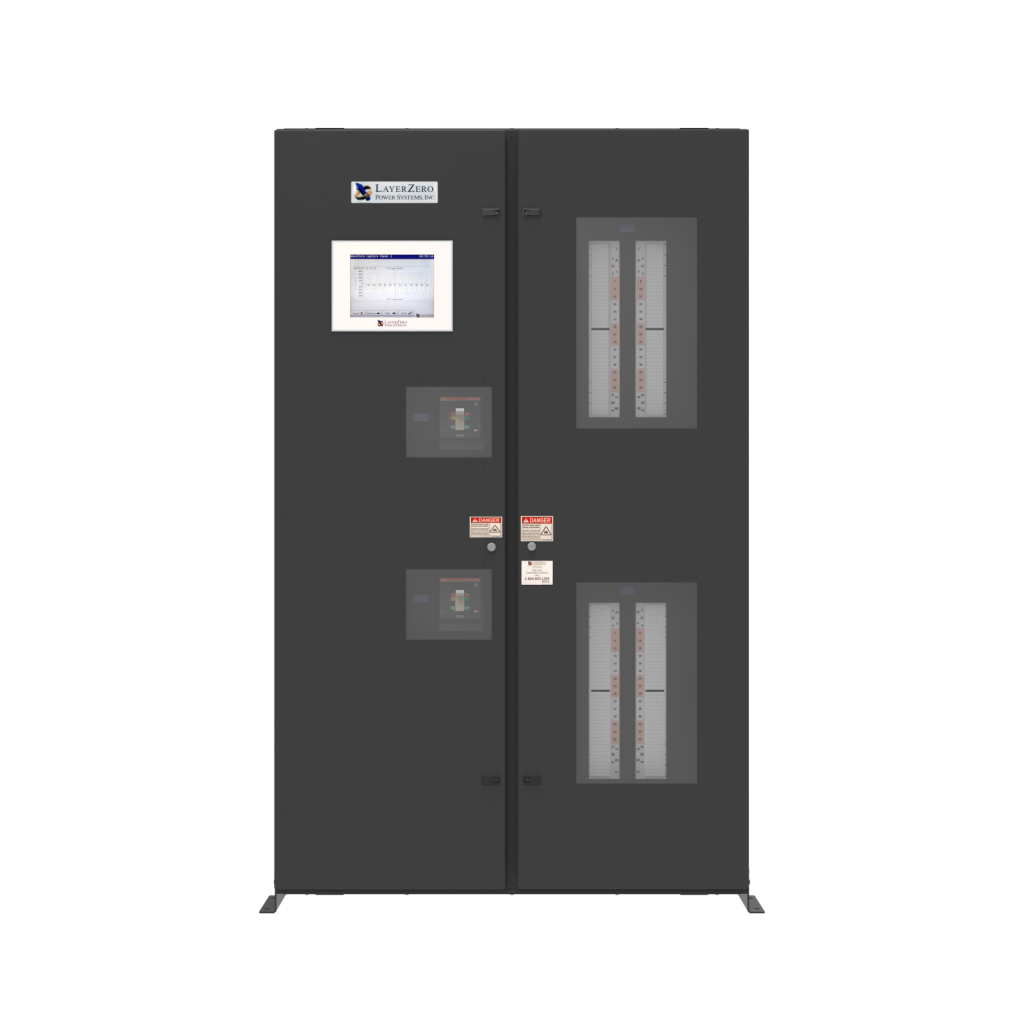

Black Finish
Gray Finish

Features and Benefits

SafePanel
IP20 finger-safe branch circuits
Safety-Focused Power Distribution
Seismic
Seismic AC156
Shake-table tested
Touchscreen guided bypass
Touchscreen UI
Voice-guided bypass
Waveform Capture
Waveform Capture
See real-time events
VDAT Plotting
VDAT / ITIC
Disturbance analysis

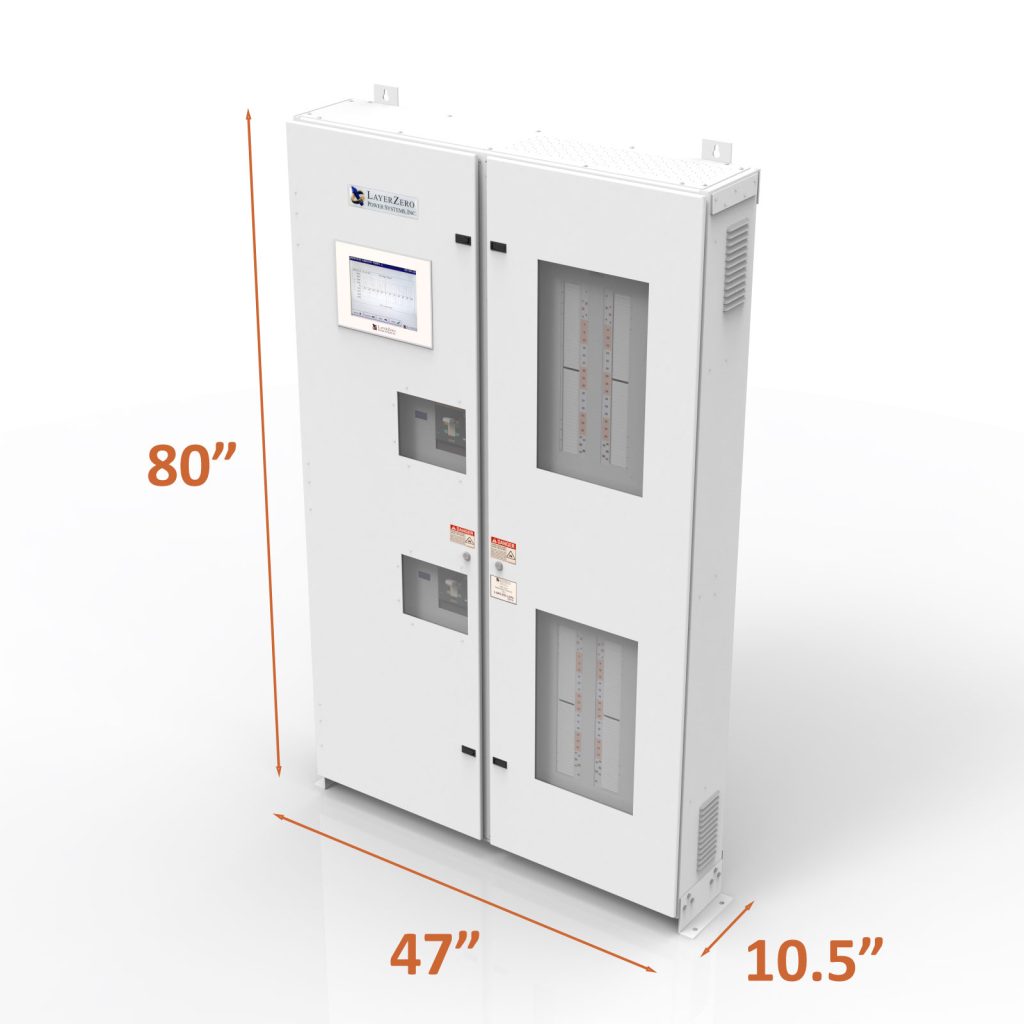

Compact, Wall-Mounted Design

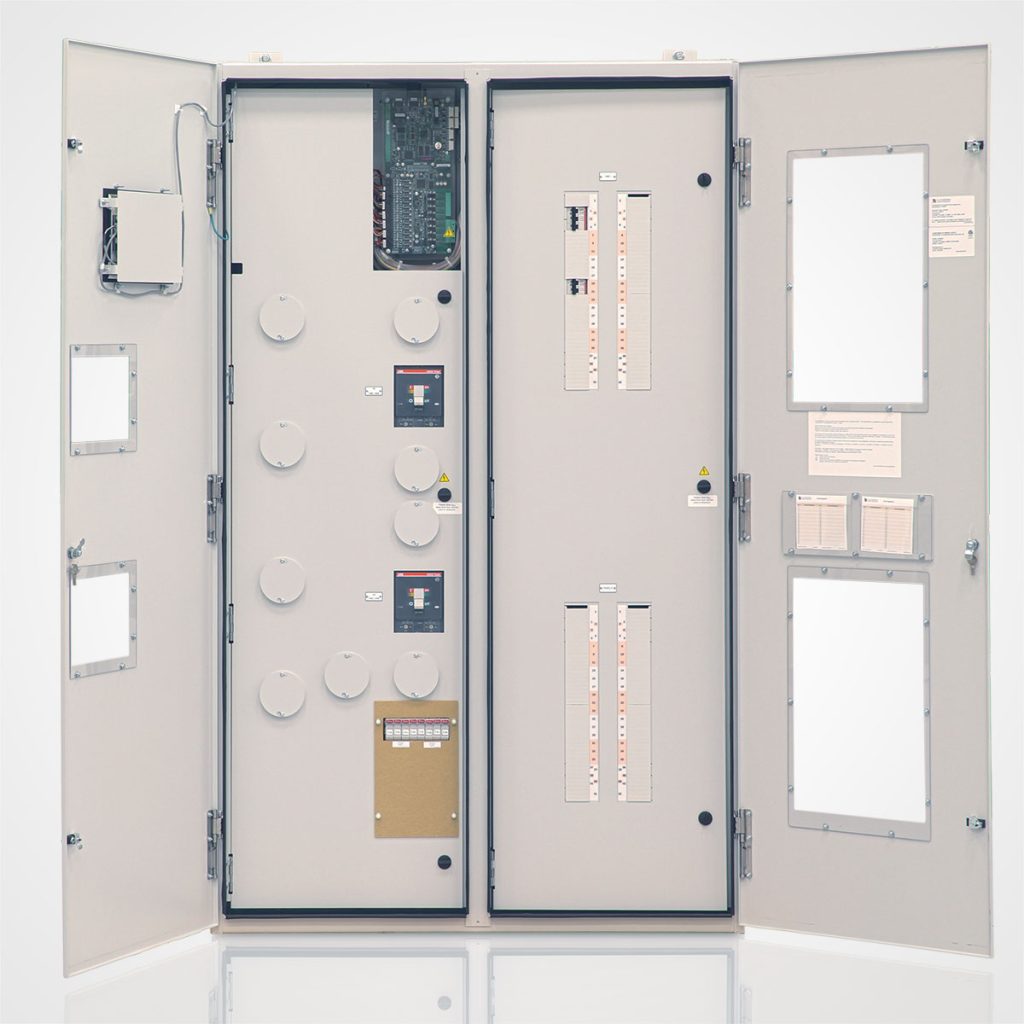

A wall-mounted LayerZero Power Systems ePanel electrical distribution unit with height, width, and depth dimensions labeled in orange text: 80", 47", and 10.5". A large, LayerZero Power Systems white ePanel-2 with two main sections. Both outer cabinet doors are swung open, revealing internal dead-front covers, circuit breaker slots, control boards, and several circular knockout points for cabling.

Specifications

Copy Specs into email / Excel

Electrical Specifications

Current400 A
Nominal Input Voltage120/208 V
Nominal Output Voltage120/208 V
Poles3

Mechanical Characteristics

Height80 in (2032 mm)
Width47 in (1194 mm)
Depth10.5 in (267 mm)
Weight550 lb (249.5 kg)

Documents & Downloads

One-line electrical diagram of LayerZero eRPP-FS remote power panel with dual IP20 panelboards, branch circuit monitoring, and 120/208V three-phase distribution.
One-Line Diagram

A one-line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.

Outline drawing of the eRPP-2 power distribution panel showing enclosure form and front-access layout.
Product Outline

A product outline is a technical engineering drawing showing mechanical characteristics of our products.

Guideform specifications icon representing technical requirements for mission-critical power equipment
Guideform Specification

Guideform specifications include the requirements, specifications, and considerations of installing LayerZero equipment.

LayerZero Power Systems brochure cover for mission-critical power solutions
Product Brochure

Product brochures contain information about the product's features, benefits, and specifications.

360° Spin

Manufacturing & Quality Assurance

  • Automated machining & robotics
  • Serialized tracking of every critical board
  • 100% end-of-line testing
  • Vertical integration for consistent quality
