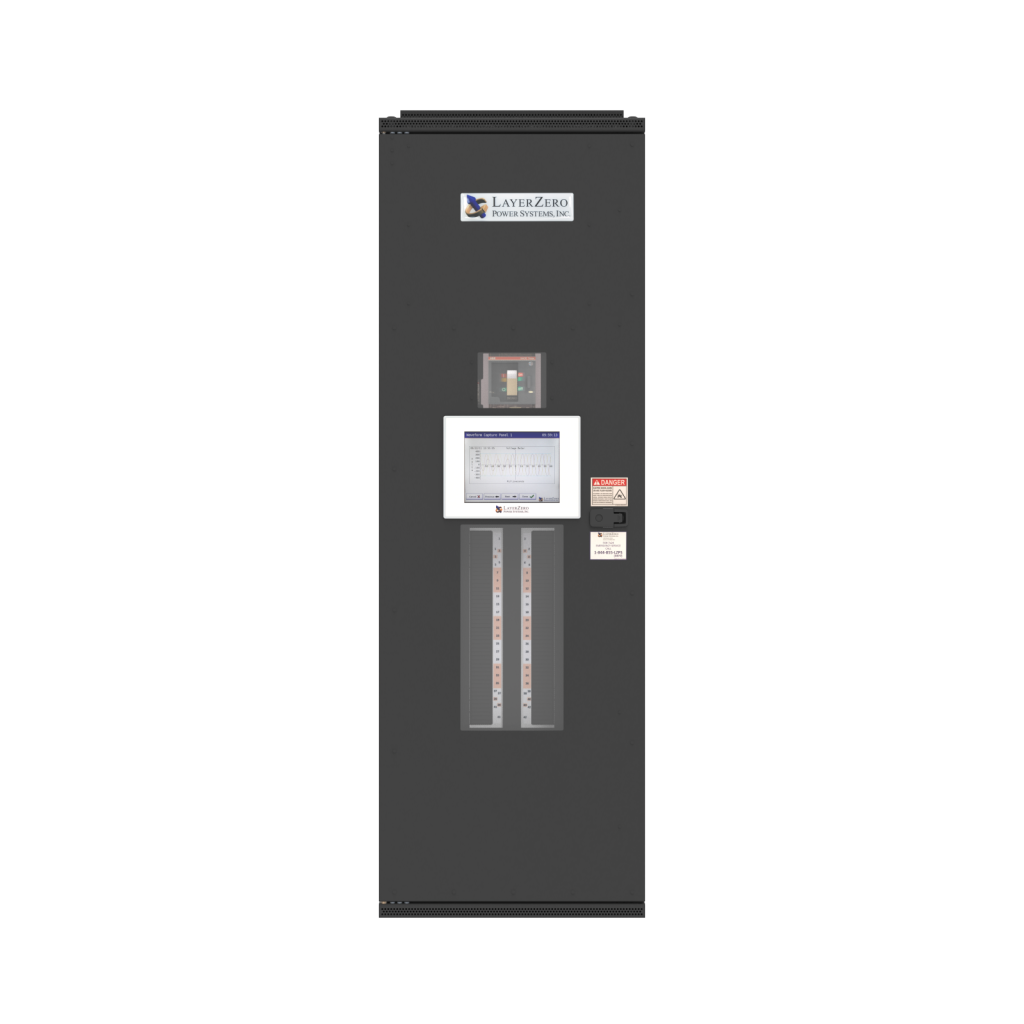

ePanel SL-1 Remote Power Panel

The LayerZero ePanel SL1 is a web-enabled remote power panel (eRPP) with 42-circuit SafePanel distribution. It is a SIMO configuration (single input, multiple outputs), meaning that it has a single input power source and multiple output circuits. The ePanel SL-1 is ideal for applications that require high-reliability power distribution in a wall-mounted, space-saving design.

Power Topology SIMO
Mounting Wall-mounted
Branch Circuits Up to 42
Seismic Compliance
Designed to meet seismic requirements for mission-critical installations.
Selective Trip Coordination
Selective-trip coordination is a method of coordinating the operation of circuit breakers so that only the circuit breaker closest to a fault trips.
Loading interactive view…
Black Finish
Gray Finish

Features and Benefits

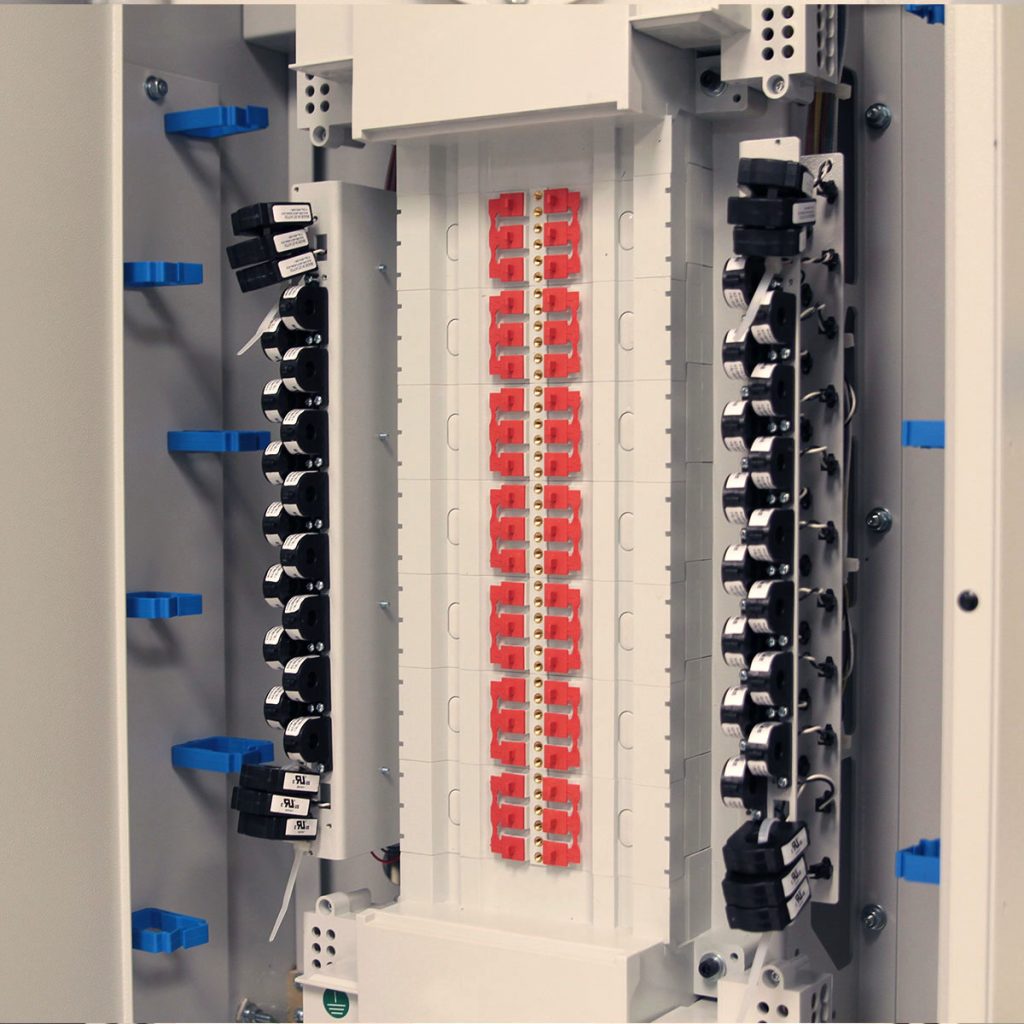

SafePanelu00ae Distribution
IP20 finger-safe branch circuits
Safety-Focused Power Distribution
Waveform capture
Waveform Capture
See real-time events
VDAT plotting
VDAT / ITIC
Disturbance analysis
Touchscreen guided bypass
Touchscreen UI
Voice-guided bypass

Compact, Wall-Mounted Design

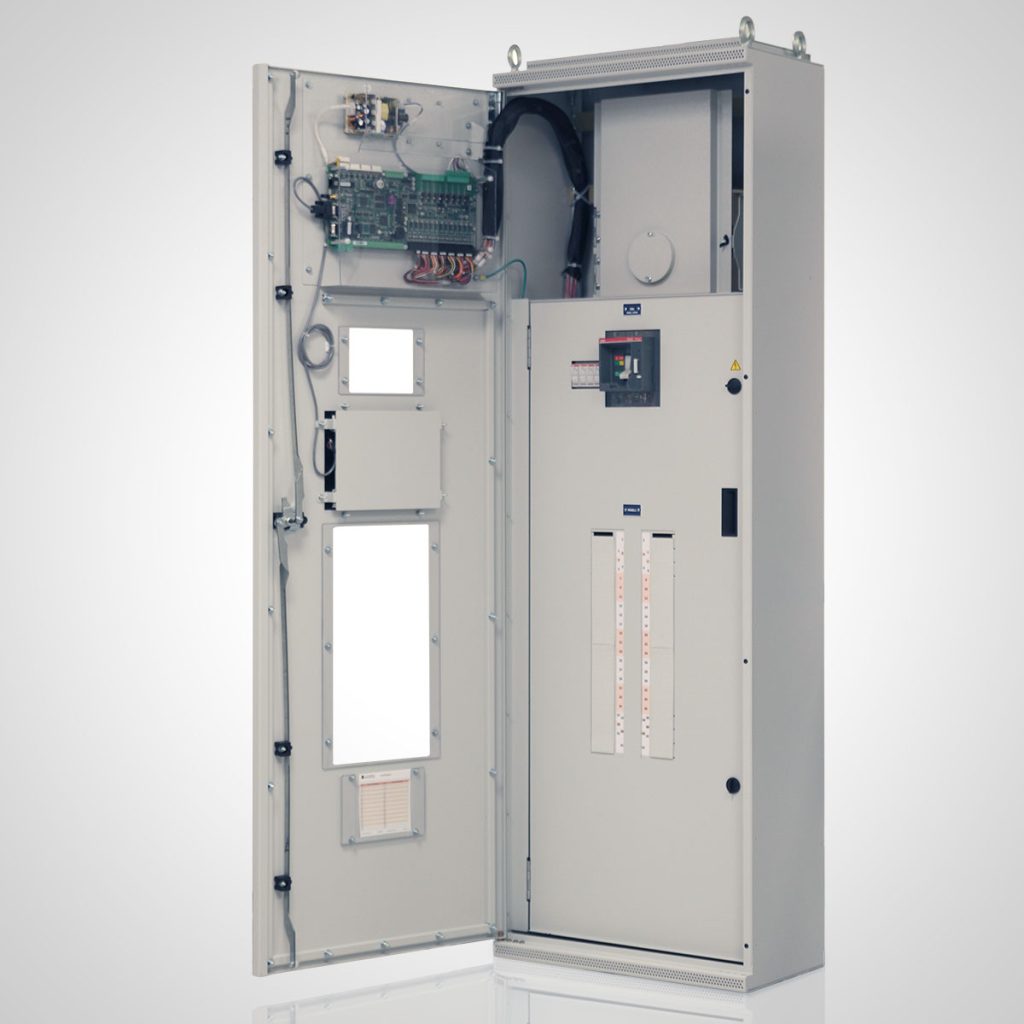

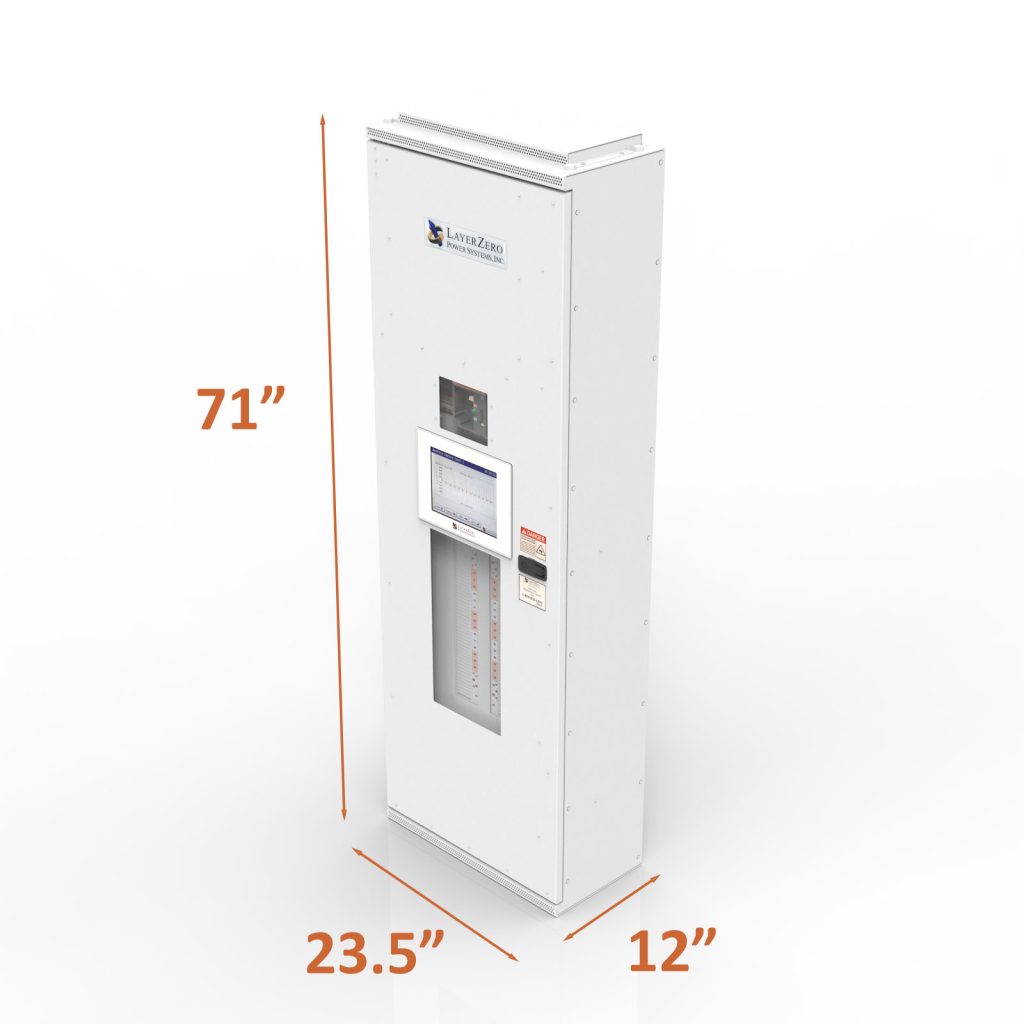

ePanel SL-1 mission-critical power distribution panel showing 71-inch height, 23.5-inch width, and 12-inch depth ePanel SL-1 power distribution panel with outer door open showing internal components and front-access layout

Specifications

Copy Specs into email / Excel

Electrical Specifications

Current400 A
Nominal Input Voltage120/208 V
Nominal Output Voltage120/208 V
Poles3

Mechanical Characteristics

Height71 in (1803 mm)
Width23.5 in (597 mm)
Depth12 in (305 mm)
Weight340 lb (154.2 kg)

Documents & Downloads

One-line diagram showing eRPP-SL1 power distribution with main breaker, metering points, and 42-pole panel board
One-Line Diagram

A one-line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.

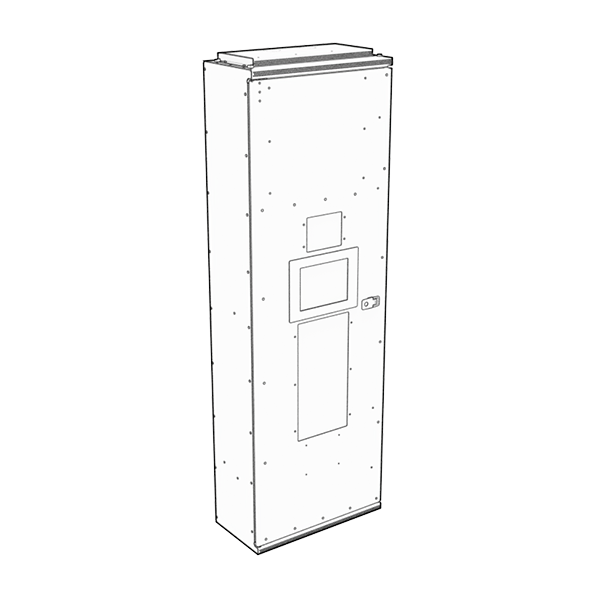

Outline drawing of the eRPP-SL1 power distribution panel showing enclosure form and front-access layout
Product Outline

A product outline is a technical engineering drawing showing mechanical characteristics of our products.

LayerZero Power Systems brochure cover for mission-critical power solutions
Product Brochure

Product brochures contain information about the product's features, benefits, and specifications.

360° Spin

Manufacturing & Quality Assurance

  • Automated machining & robotics
  • Serialized tracking of every critical board
  • 100% end-of-line testing
  • Vertical integration for consistent quality
