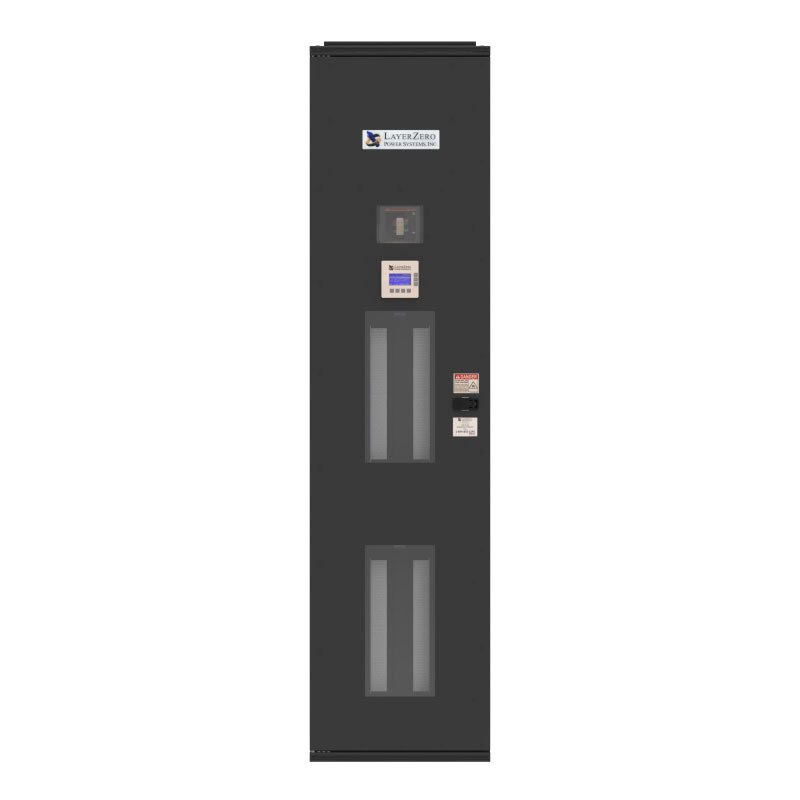

ePanel SL-2 Remote Power Panel

The LayerZero ePanel-SL2 is a web-enabled remote power panel (eRPP) with 84-circuit SafePanel distribution. It is a SIMO configuration (single input, multiple outputs), meaning that it has a single input power source and multiple output circuits. The ePanel SL2 is ideal for applications that require high-reliability power distribution in a wall-mounted, space-saving design.

Power Topology SIMO
Mounting Wall-mounted
Branch Circuits Up to 84
Seismic Compliance
Designed to meet seismic requirements for mission-critical installations.
Selective Trip Coordination
Selective-trip coordination is a method of coordinating the operation of circuit breakers so that only the circuit breaker closest to a fault trips.
Loading interactive view…
Black Finish
Gray Finish

Features and Benefits

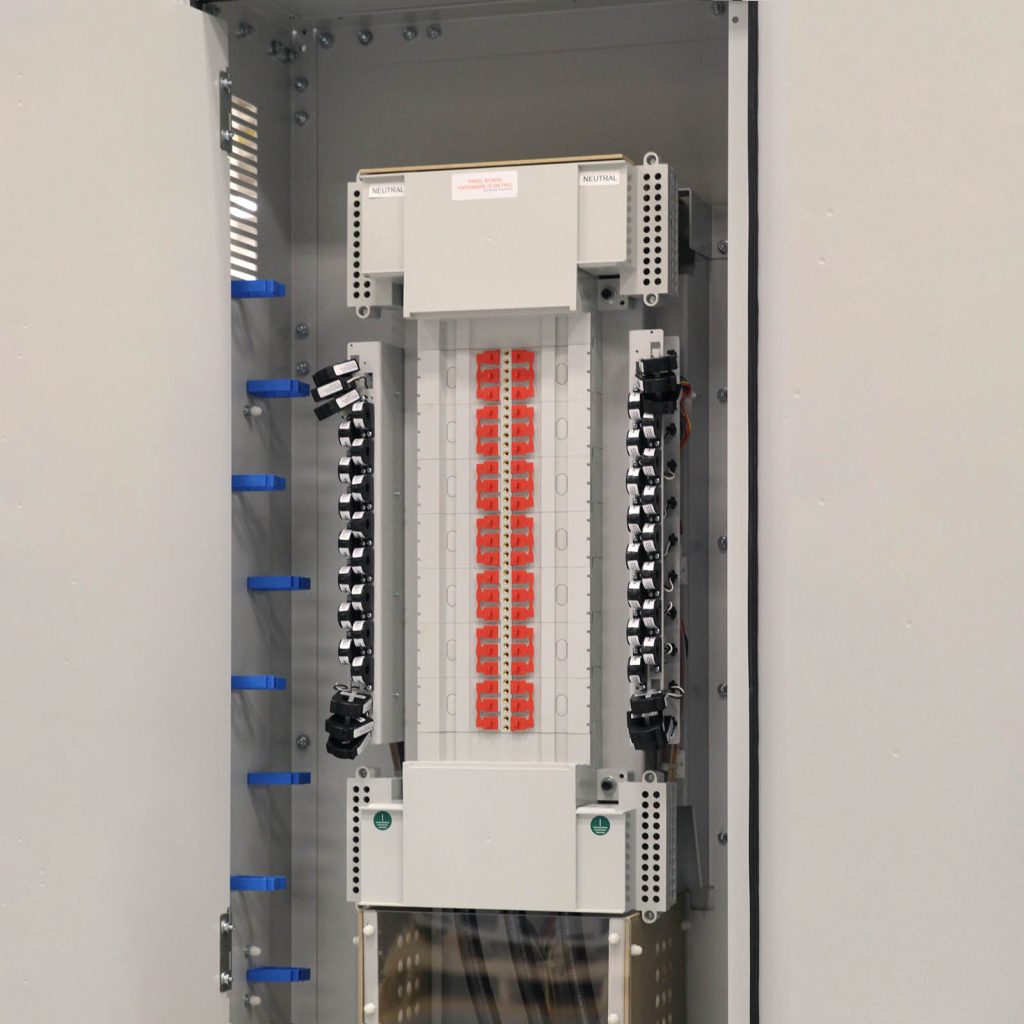

SafePanel

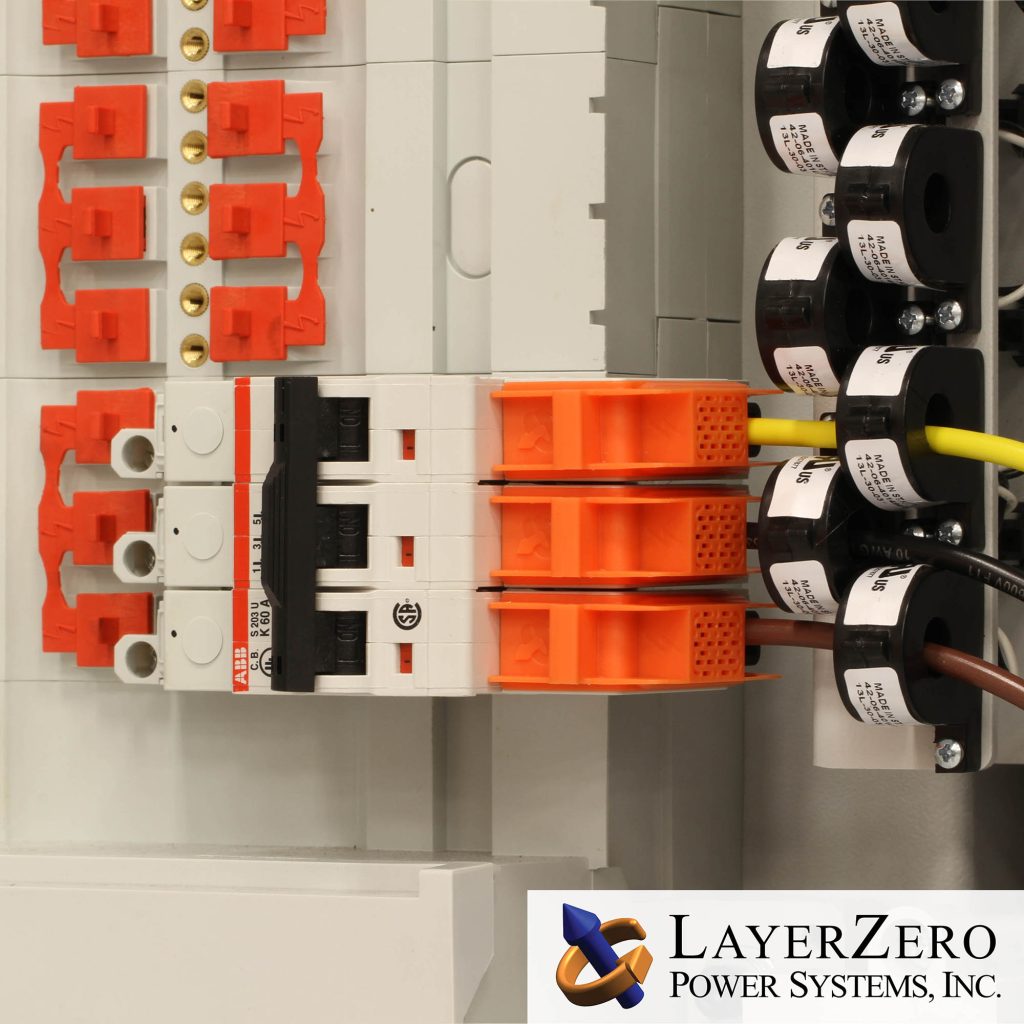

IP20 finger-safe branch circuits
Safety-Focused Power Distribution
Seismic
Seismic AC156
Shake-table tested
Touchscreen guided bypass

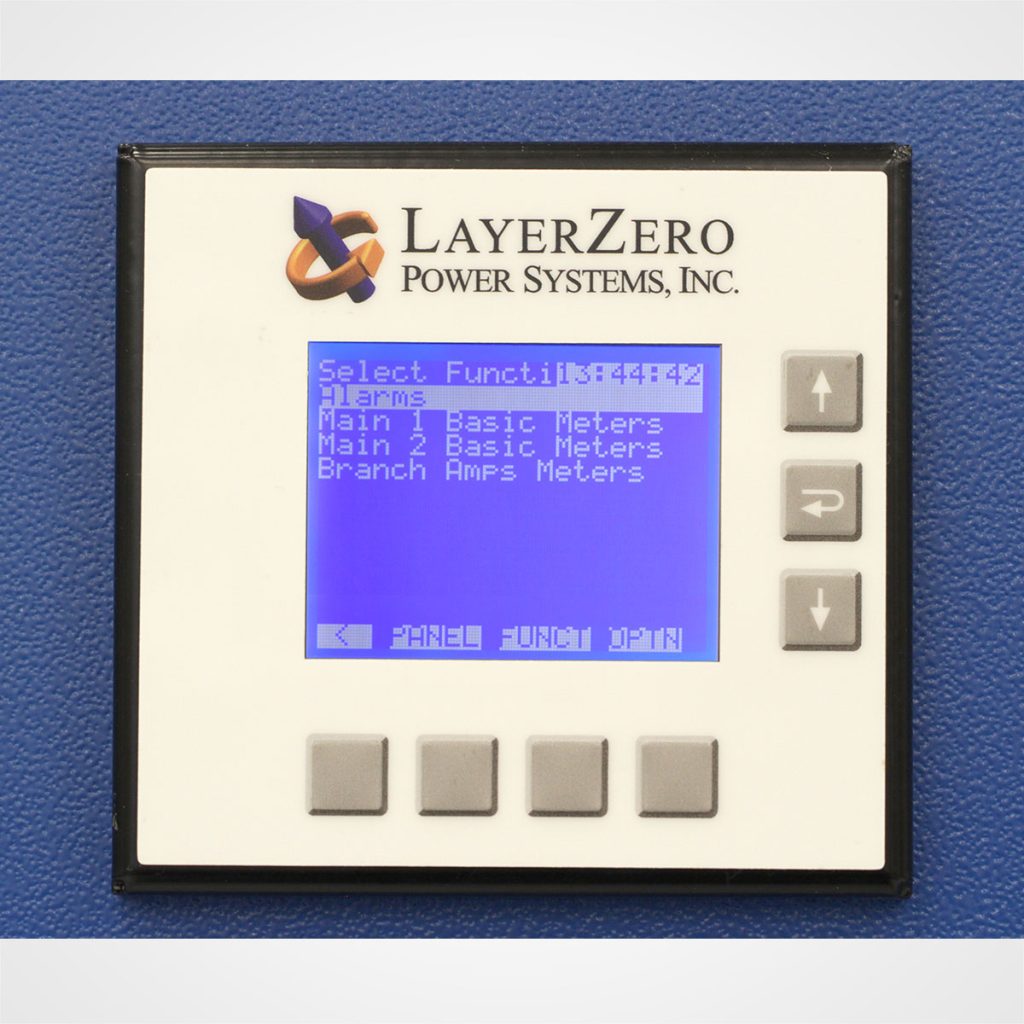

Touchscreen UI
Voice-guided bypass
Waveform Capture
Waveform Capture
See real-time events
VDAT Plotting
VDAT / ITIC
Disturbance analysis

Compact, Wall-Mounted Design

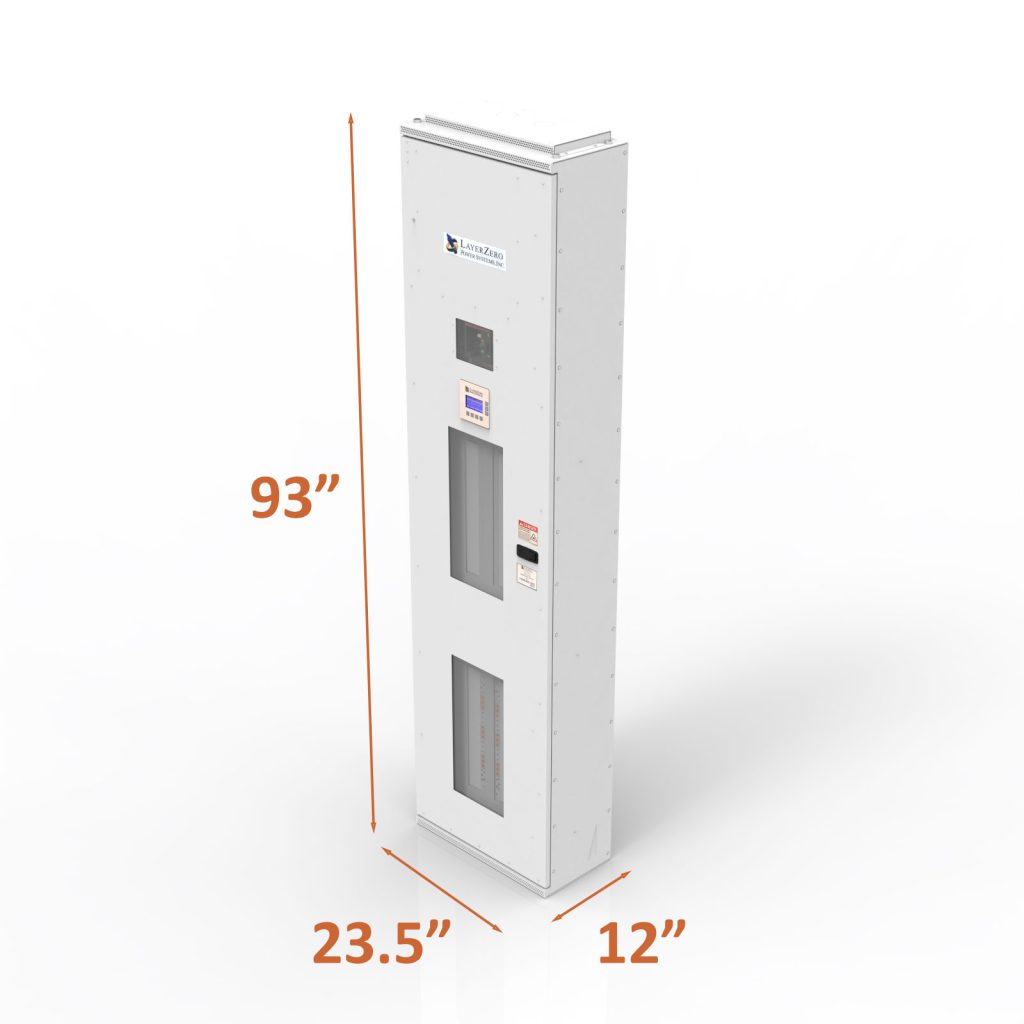

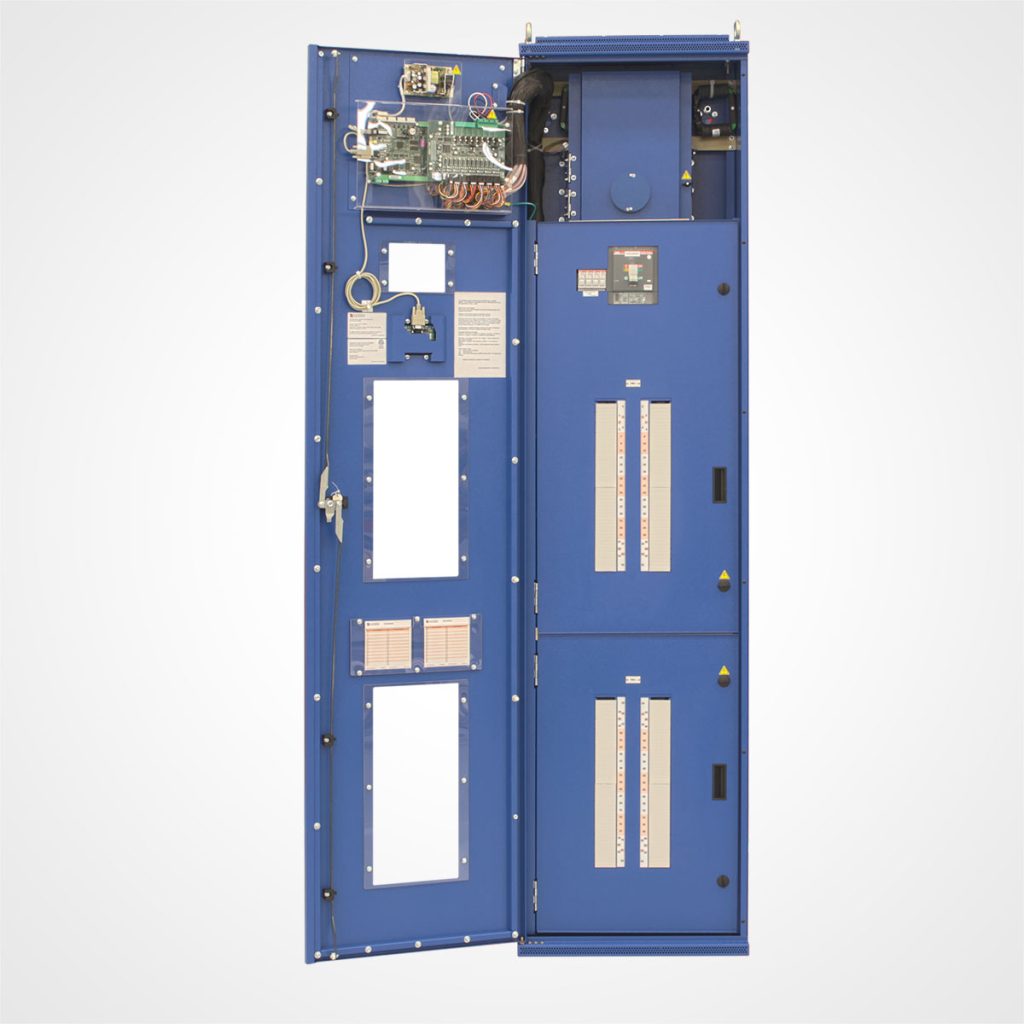

A tall, white LayerZero Power Systems electrical cabinet with orange dimension arrows indicating a height of 93 inches, a width of 23.5 inches, and a depth of 12 inches. An open LayerZero eRPP-SL2 blue power panel showing a complex internal layout with circuit boards, wiring, and two large vertical panels containing numerous terminal blocks or fuse slots.

Specifications

Copy Specs into email / Excel

Electrical Specifications

Current400 A
Nominal Input Voltage120/208 V
Nominal Output Voltage120/208 V
Poles3

Mechanical Characteristics

Height93 in (2362 mm)
Width23.25 in (591 mm)
Depth12 in (305 mm)
Weight550 lb (249.5 kg)

Documents & Downloads

One-line electrical diagram of LayerZero eRPP-FS remote power panel with dual IP20 panelboards, branch circuit monitoring, and 120/208V three-phase distribution.
One-Line Diagram

A one-line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.

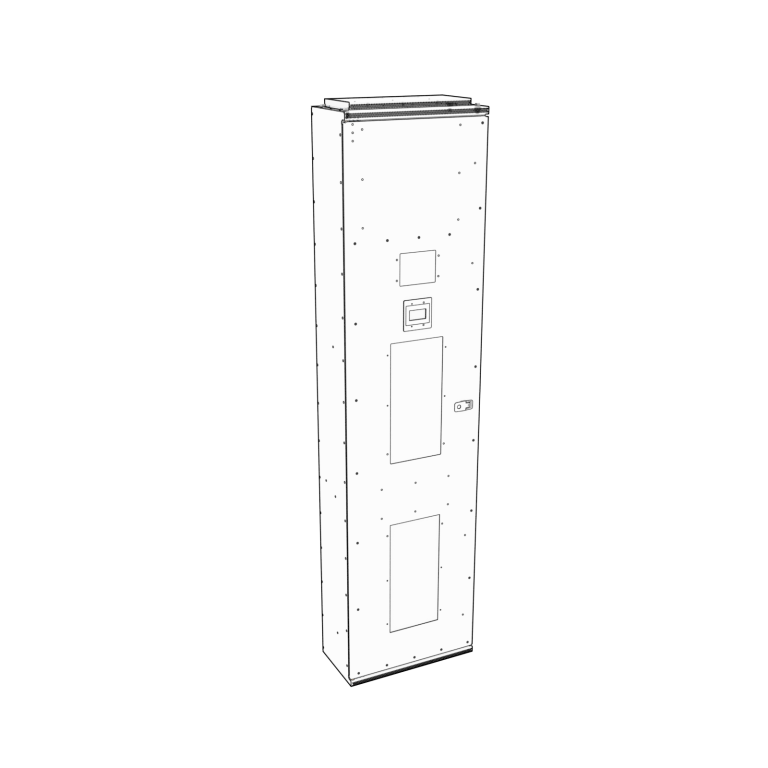

Outline drawing of the eRPP-SL2 power distribution panel showing enclosure form and front-access layout.
Product Outline

A product outline is a technical engineering drawing showing mechanical characteristics of our products.

LayerZero Power Systems brochure cover for mission-critical power solutions
Product Brochure

Product brochures contain information about the product's features, benefits, and specifications.

Configurations

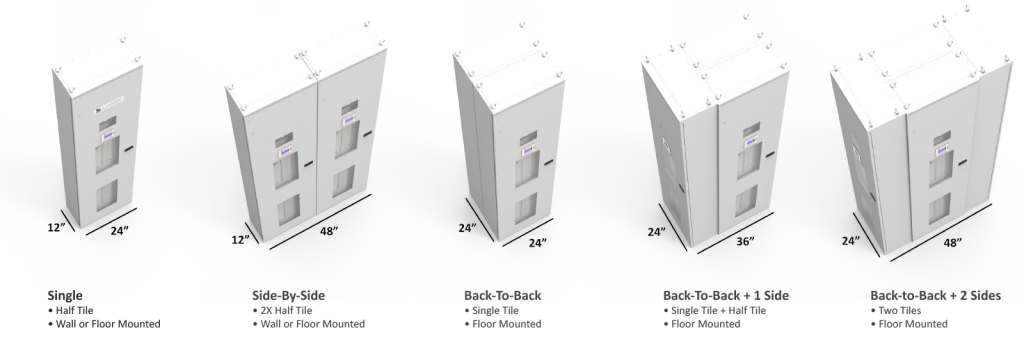

Mounting configurations for the LayerZero® Series 70 eRPP-SL2 showing single, side-by-side, back-to-back, and multi-tile installations for space-efficient power distribution

360° Spin

Manufacturing & Quality Assurance

  • Automated machining & robotics
  • Serialized tracking of every critical board
  • 100% end-of-line testing
  • Vertical integration for consistent quality
