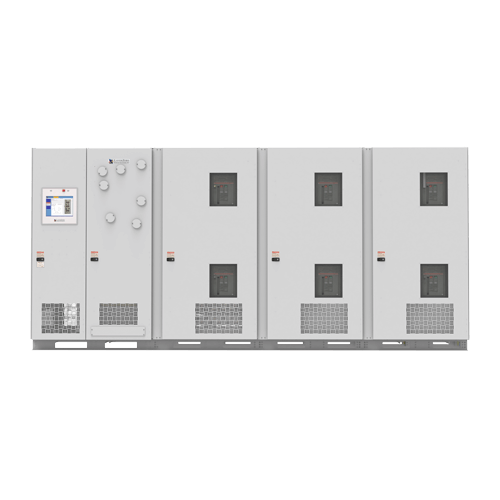

3000 A 277/480 V 4-Pole eSTS

LayerZero® eSTS keeps mission-critical loads online by transferring between sources in < 4 ms, using fiber-optic based control logic and a voice-guided bypass procedure that reduces operator error. Designed for maximum uptime in mission-critical data centers. Fully serviceable from the front in a 48" x 36" x 90" footprint.

Rating 3000 A
Voltage 277/480 V
Poles 4-Pole
Transfer < 4 ms
Service Access Front-Only
Fiber-Optic Controls
Signal paths immune to EMI/RFI
Machined Hardware
Connections maintain clamp force over life
Seismic AC156
Shake-table tested

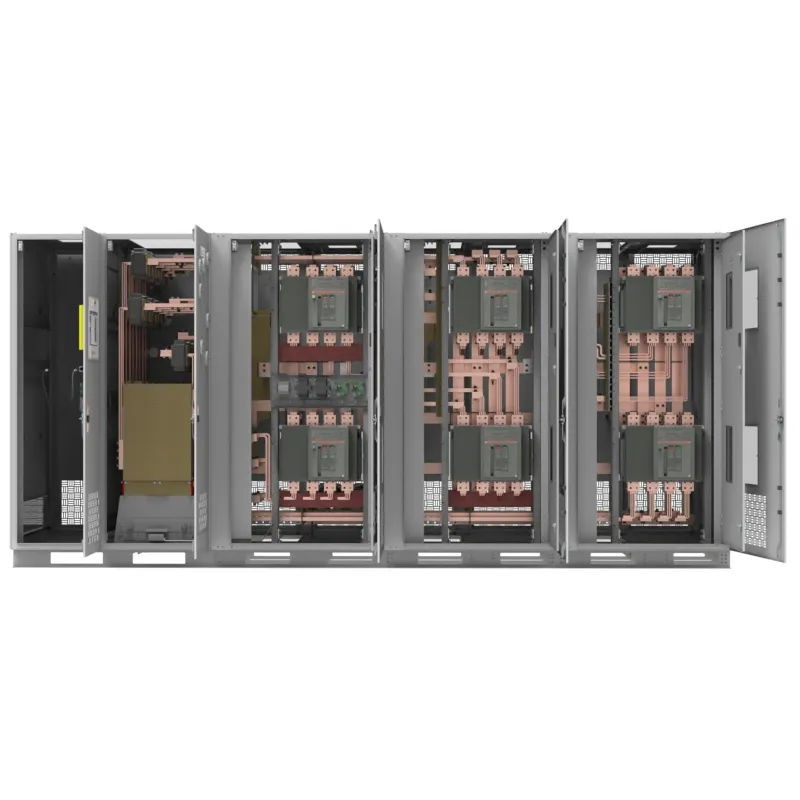

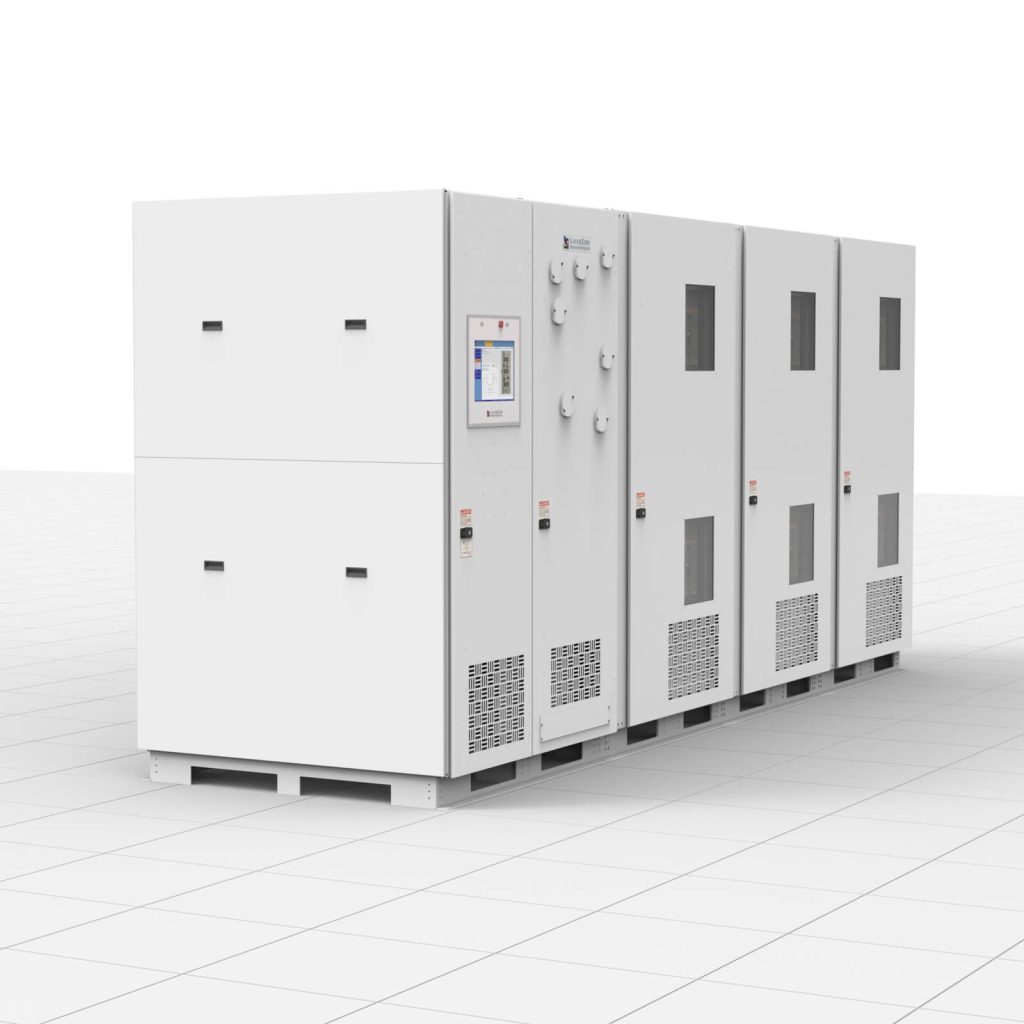

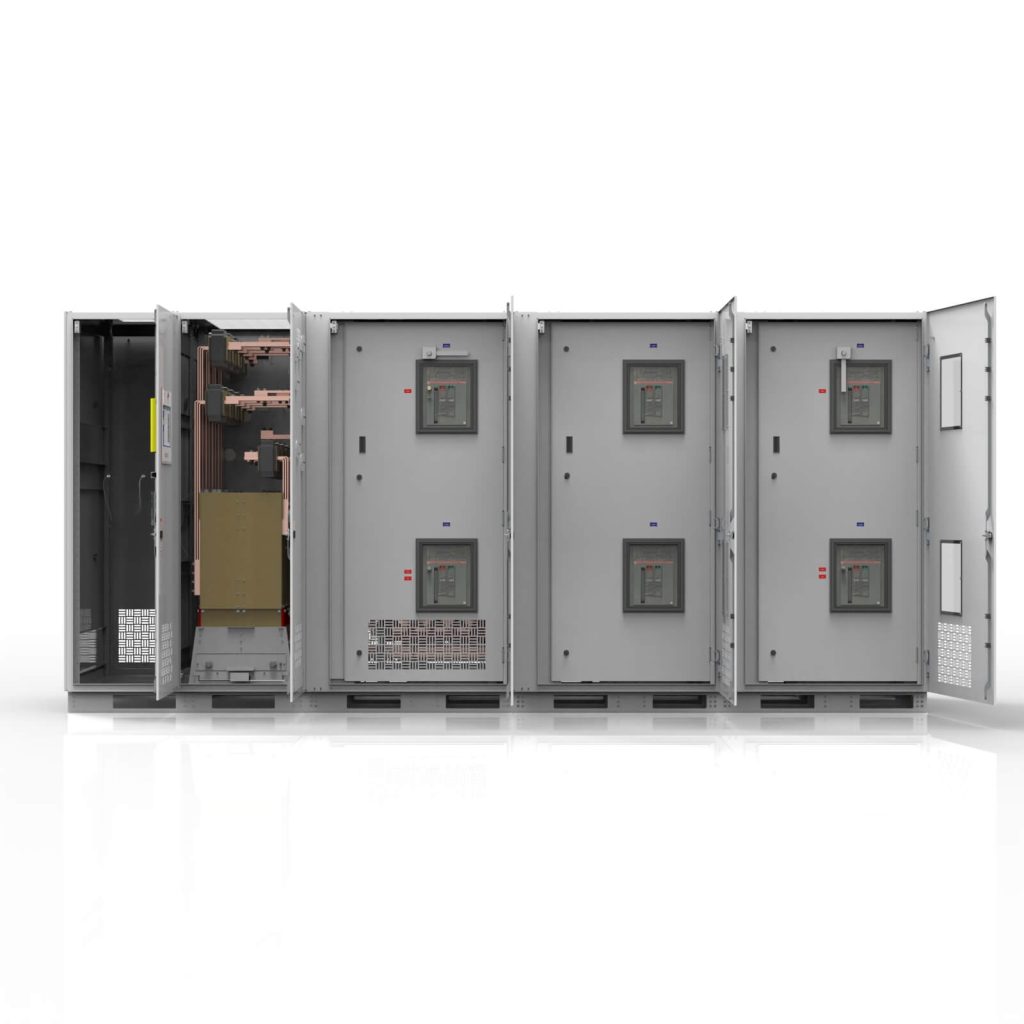

Loading interactive view…
Black Finish
Gray Finish

Features and Benefits

High-speed transfer
High-Speed Transfer
< 4 ms
4-pole switching
4-Pole Switching
Solidly switched neutral
Convection cooling
Convection Cooling
Physics-Driven Reliability
Waveform capture
Waveform Capture
See real-time events
Front-only install
Front-Only Install
No rear or side access required
VDAT plotting
VDAT / ITIC
Disturbance analysis
Seismic rating
Seismic AC156
Shake-table tested
Touchscreen guided bypass
Touchscreen UI
Voice-guided bypass

Specifications

Copy Specs into email / Excel

Electrical Specifications

Current3000 A
Nominal Input Voltage277/480 V
Nominal Output Voltage277/480 V
Poles4

Mechanical Characteristics

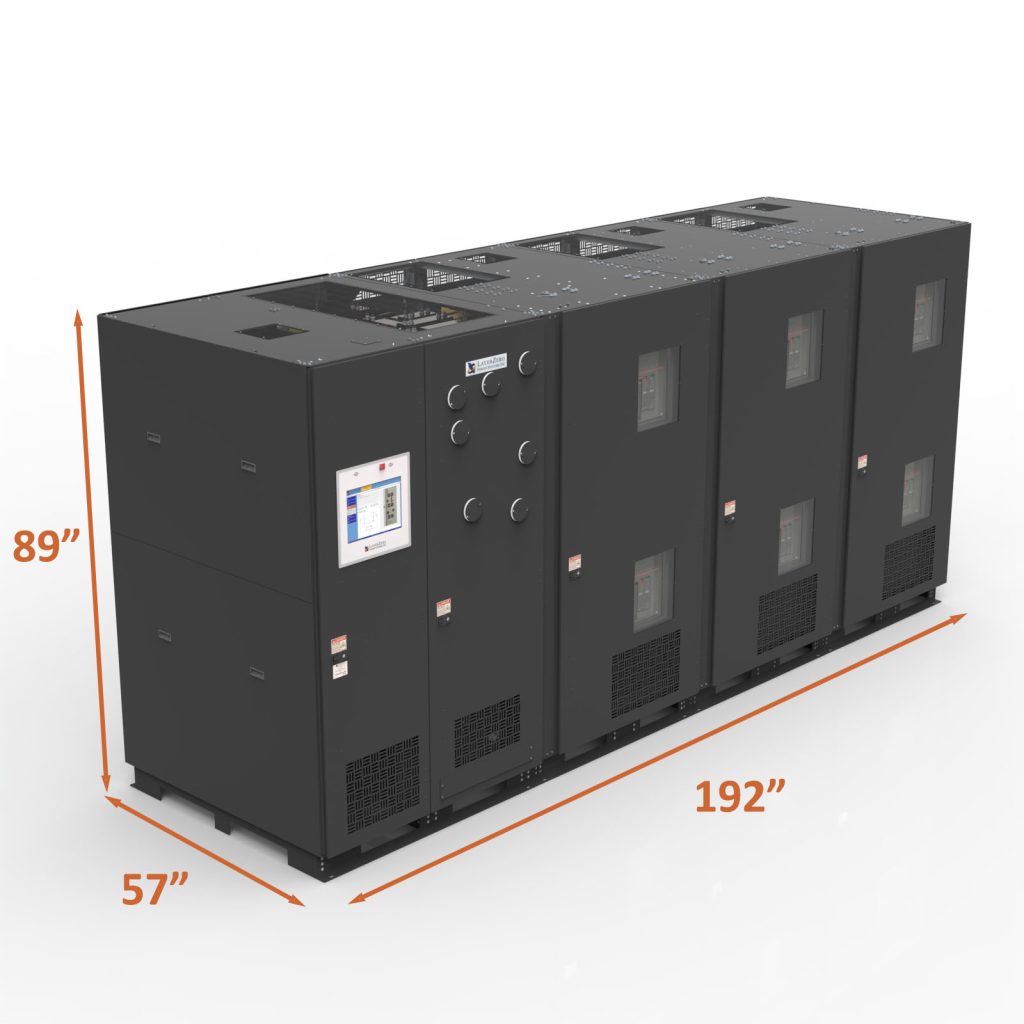

Height89 in (2261 mm)
Width192 in (4877 mm)
Depth57 in (1448 mm)
Weight11200 lb (5080.2 kg)

Documents & Downloads

Static Transfer Switch power system one-line diagram icon showing phase and neutral switching
One-Line Diagram

A one-line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.

Outline icon representing a static transfer switch used in mission-critical power systems
Product Outline

A product outline is a technical engineering drawing showing mechanical characteristics of our products.

Guideform specifications icon representing technical requirements for mission-critical power equipment
Guideform Specification

Guideform specifications include the requirements, specifications, and considerations of installing LayerZero equipment.

LayerZero Power Systems brochure cover for mission-critical power solutions
Product Brochure

Product brochures contain information about the product's features, benefits, and specifications.

Fast, Reliable Transfers

Switch to S1
Switch to S2
Tap a source to simulate transfer between redundant feeds.

Automatic Source Transfer in <4 ms

eSTS continuously monitors both sources and instantly moves the load when instability is detected. Transfers occur without contact welding or nuisance trips.

Fiber-optic control paths and triple modular redundancy protect continuity even during upstream events.

  • < 4 ms typical transfer time
  • Triple Modular Redundancy (TMR)
  • Fiber-optic signaling
4-Pole Transfer Explained

Unlike 3-pole systems, the 4-pole eSTS switches the neutral conductor as well as all phases. This ensures precise isolation between sources, eliminating circulating currents and neutral potential differencesu2014critical for sensitive IT loads and transformer-isolated systems.
