ePODs 750 kVA 480V 240/415V Up to (6) Fixed Subfeeds PDU Power Distribution Unit

The LayerZero ePODs: 750 kVA 480V 240/415V Subfeeds PDU is a web-enabled power distribution unit (PDU) with a transformer, safepanel distribution, and subfeed distribution. It is a SIMO configuration (single input, multiple outputs), meaning that it has a single input power source and multiple output circuits. The ePODs PDU is ideal for application that require high-reliability power distribution.

Rating902 A
Voltage240/415 V
Poles3-Pole
Fiber-Optic Controls
Signal paths immune to EMI/RFI
Convection-Cooled Thermal Design
No fans, no filters
Seismic-Ready Construction
Supports seismic requirements for critical facilities
Serialized Traceability
Critical assemblies tracked through build and test

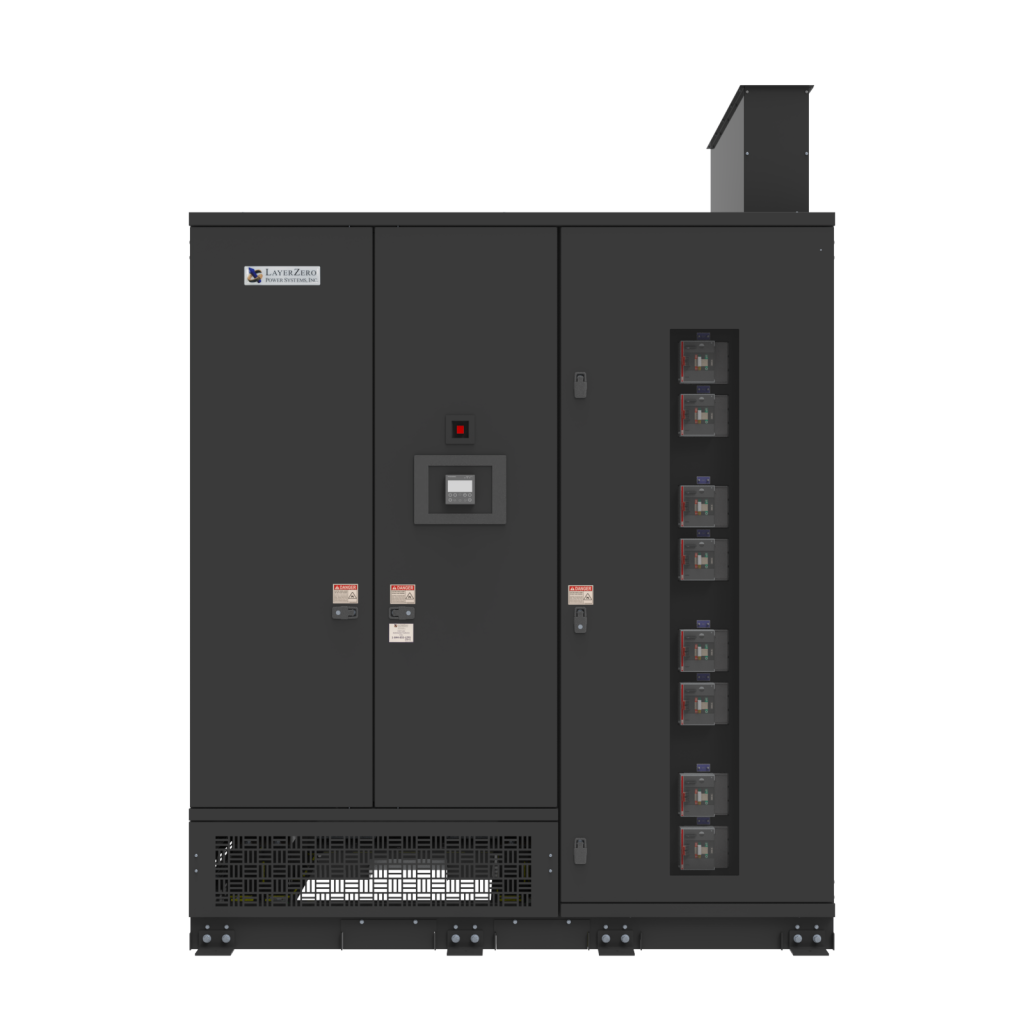

LayerZero ePODs power distribution unit rated 750 kVA with fixed SafePanel subfeeds and web-enabled monitoring
Loading interactive view…
Black Finish
Gray Finish

Features and Benefits

High-speed transfer
High-Speed Transfer
< 4 ms
SafePanel Distribution
IP-20 Rated Finger Safe
Solidly switched neutral
Convection cooling
Convection Cooling
Physics-Driven Reliability
Waveform capture
Waveform Capture
See real-time events
Front-only install
Front-Only Install
No rear or side access required
VDAT plotting
VDAT / ITIC
Disturbance analysis
Seismic rating
Seismic AC156
Shake-table tested
Touchscreen guided bypass
Touchscreen UI
Voice-guided bypass

Compact Footprint. No Side or Rear Access Required.

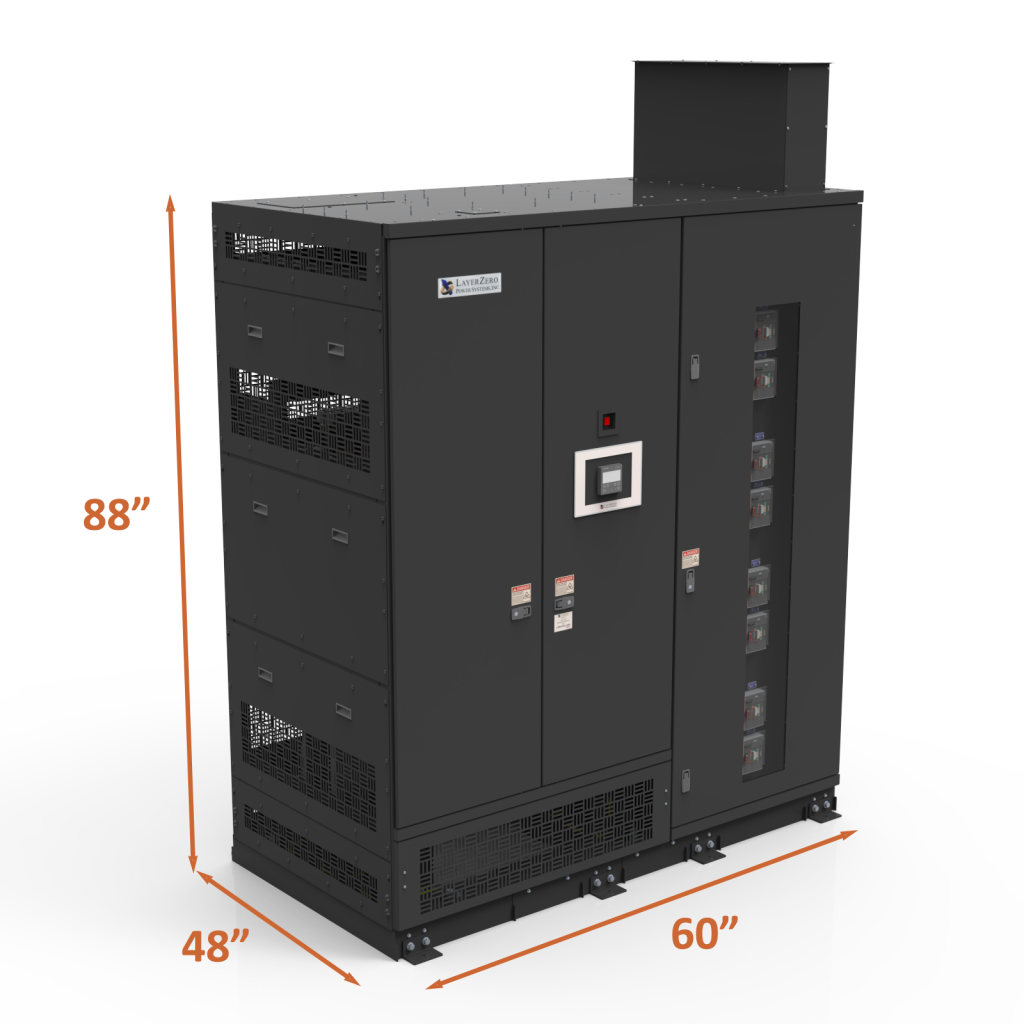

LayerZero Power Systems ePODs 750 kVA power distribution unit with fixed subfeeds showing overall dimensionsLayerZero Power Systems ePODs 750 kVA power distribution unit with fixed subfeeds, front view

Specifications

Copy Specs into email / Excel

Electrical Specifications

Current1200 A
Nominal Input Voltage480 V
Nominal Output Voltage240/415 V
Poles3
Wires4
Withstand65 kAIC

Installation & Serviceability

System Mounting TypeFloor / Freestanding
Access SideFront
Front Clearance42 in (1067 mm)
Rear Clearance6 in (152 mm)
Side Clearance6 in (152 mm)
Top Clearance18 in (457 mm)

Mechanical Characteristics

Height88 in (2235 mm)
Width60 in (1524 mm)
Depth48 in (1219 mm)
Weight4650 lb (2109.2 kg)

Documents & Downloads

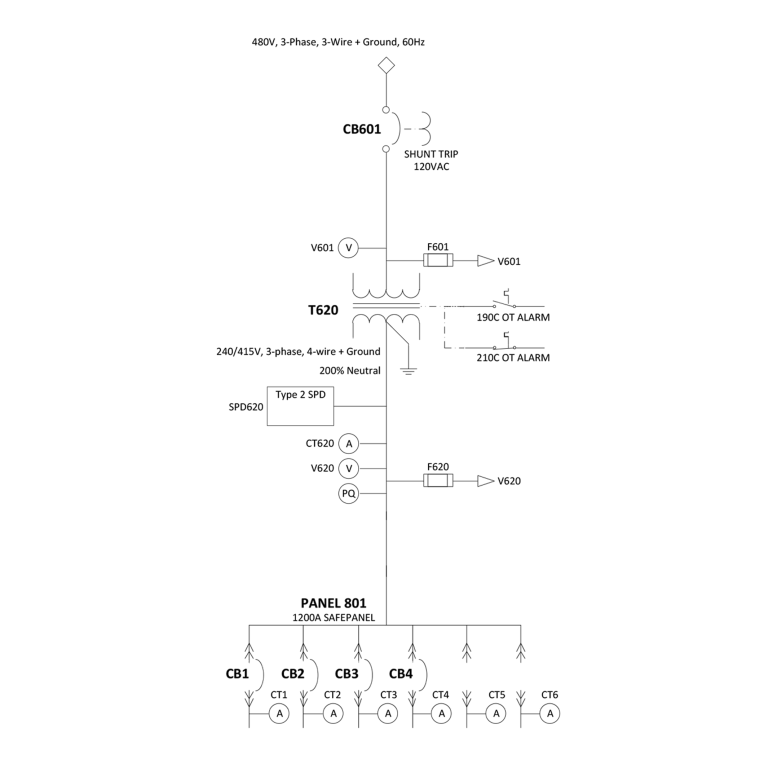

One-line diagram showing PDU power distribution with main breaker, transformer, and distribution panel.
One-Line Diagram

A one-line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.

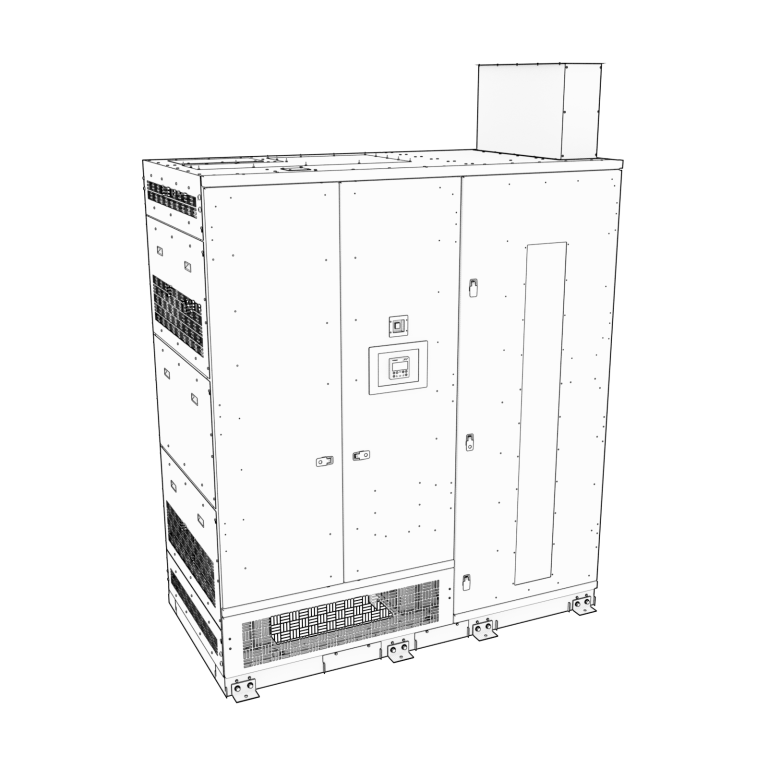

Outline drawing of the power distribution unit showing front-access layout.
Product Outline

A product outline is a technical engineering drawing showing mechanical characteristics of our products.

Guideform specifications icon representing technical requirements for mission-critical power equipment
Guideform Specification

Guideform specifications include the requirements, specifications, and considerations of installing LayerZero equipment.

LayerZero Power Systems brochure cover for mission-critical power solutions
Product Brochure

Product brochures contain information about the product's features, benefits, and specifications.

Manufacturing & Quality Assurance

  • Automated machining & robotics
  • Serialized tracking of every critical board
  • 100% end-of-line testing
  • Vertical integration for consistent quality
