ePODs 400-500 kVa 480 V 120/208 V Up to (12) SafePanel Subfeeds, 800A or Smaller PDU

The LayerZero ePODs 400-500 kVA PDU is a web-enabled power distribution unit that delivers reliable, high-capacity power from a single input to multiple inputs. With transformer-based subfeed distribution, SafePanel® circuits, and built-in safety features, it provides secure, efficient power management for demanding, high-load environments.

Rating800A
Voltage480 V
Poles3-Pole
Machined Hardware
Connections maintain clamp force over life
Seismic AC156
Shake-table tested

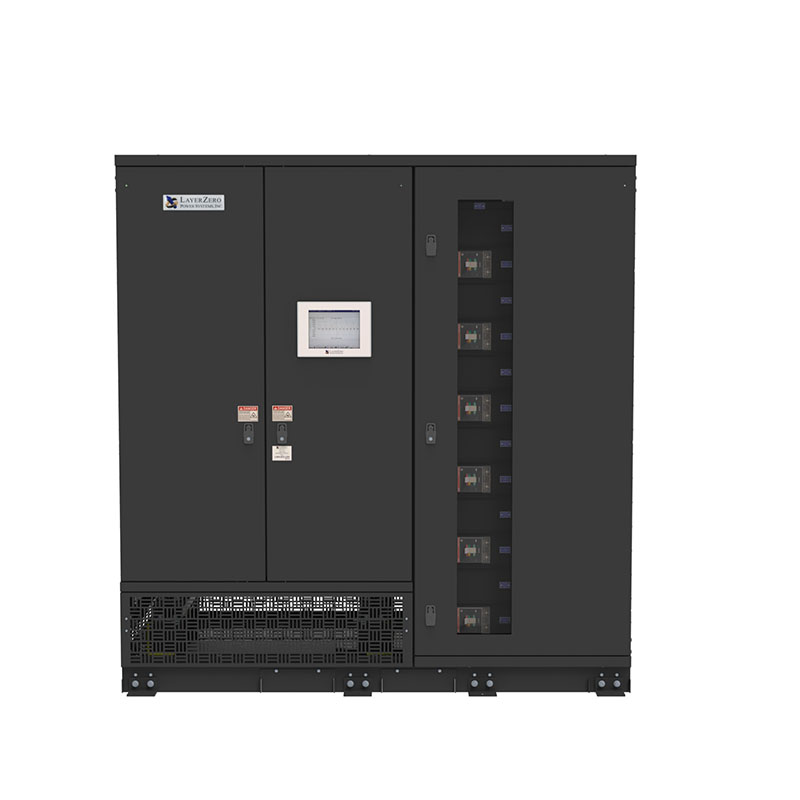

LayerZero ePOD 400-500 kVA 480V to 120/208V subfeeds power distribution unit
Loading interactive view…
Black Finish
Gray Finish

Features and Benefits

High-speed transfer
High-Speed Transfer
< 4 ms
SafePanel Distribution
IP-20 Rated Finger Safe
Solidly switched neutral
Convection cooling
Convection Cooling
Physics-Driven Reliability
Waveform capture
Waveform Capture
See real-time events
Front-only install
Front-Only Install
No rear or side access required
VDAT plotting
VDAT / ITIC
Disturbance analysis
Seismic rating
Seismic AC156
Shake-table tested
Touchscreen guided bypass
Touchscreen UI
Voice-guided bypass

Compact Footprint. No Side or Rear Access Required.

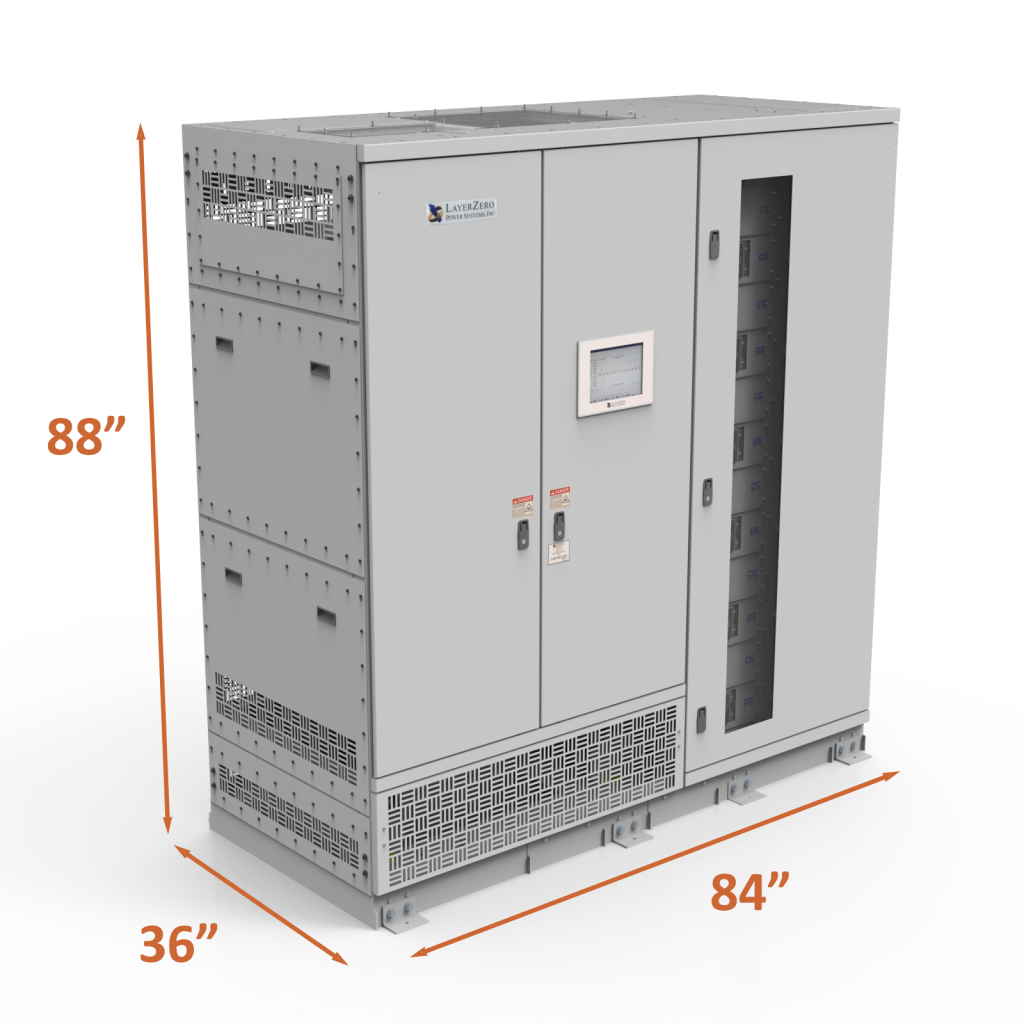

LayerZero Power Systems ePODs400-500 kVA power distribution unit with showing overall dimensionsLayerZero ePOD 400-500 kVA 480V to 120/208V subfeeds power distribution unit

Specifications

Copy Specs into email / Excel

Electrical Specifications

Current1600 A
Nominal Input Voltage480 V
Nominal Output Voltage120/208 V
Poles3
Wires4
Frequency60 Hz
Withstand1 kAIC

Installation & Serviceability

System Mounting TypeFloor / Freestanding
Access SideFront
Front Clearance42 in (1067 mm)
Rear Clearance6 in (152 mm)
Side Clearance4 in (102 mm)
Top Clearance18 in (457 mm)

Mechanical Characteristics

Height88 in (2235 mm)
Width60 in (1524 mm)
Depth48 in (1219 mm)
Weight4649.9 lb (2109.2 kg)

Documents & Downloads

One-line diagram showing PDU power distribution with main breaker, transformer, and distribution panel.
One-Line Diagram

A one-line diagram is a symbolic representation of three-phase electric power systems, depicting the paths for power flow between entities of the power distribution system.

Outline drawing of the power distribution unit showing front-access layout.
Product Outline

A product outline is a technical engineering drawing showing mechanical characteristics of our products.

Guideform specifications icon representing technical requirements for mission-critical power equipment
Guideform Specification

Guideform specifications include the requirements, specifications, and considerations of installing LayerZero equipment.

LayerZero Power Systems brochure cover for mission-critical power solutions
Product Brochure

Product brochures contain information about the product's features, benefits, and specifications.

360° Spin

Manufacturing & Quality Assurance

  • Automated machining & robotics
  • Serialized tracking of every critical board
  • 100% end-of-line testing
  • Vertical integration for consistent quality
