LayerZero mission-critical power distribution systems deliver protected, scalable branch and subfeed distribution for data centers, AI infrastructure, semiconductor fabs, and other uptime-driven facilities. Our web-enabled power panels are built around operator safety, power reliability, connectivity, and power quality monitoring—so teams can diagnose events faster, expand capacity confidently, and keep critical loads online.
Mission-critical power distribution is the protected delivery of electrical power from upstream equipment to downstream loads—designed specifically to minimize downtime risk. In high-availability environments, distribution equipment must provide circuit protection, coordination, safe service access, and clear visibility into electrical conditions.
LayerZero power panels are web-enabled and designed to support both branch circuit distribution and subfeed distribution, depending on your topology and growth strategy. Both approaches support load balancing, fault isolation, and maintenance workflows that reduce operational disruption.
Choose the distribution approach that matches your architecture: Remote Power Panels (RPP/eRPP) for protected branch circuit distribution and selective trip coordination, or Remote Distribution Panels (RDP/eRDP) for subfeed distribution and scalable fault isolation.

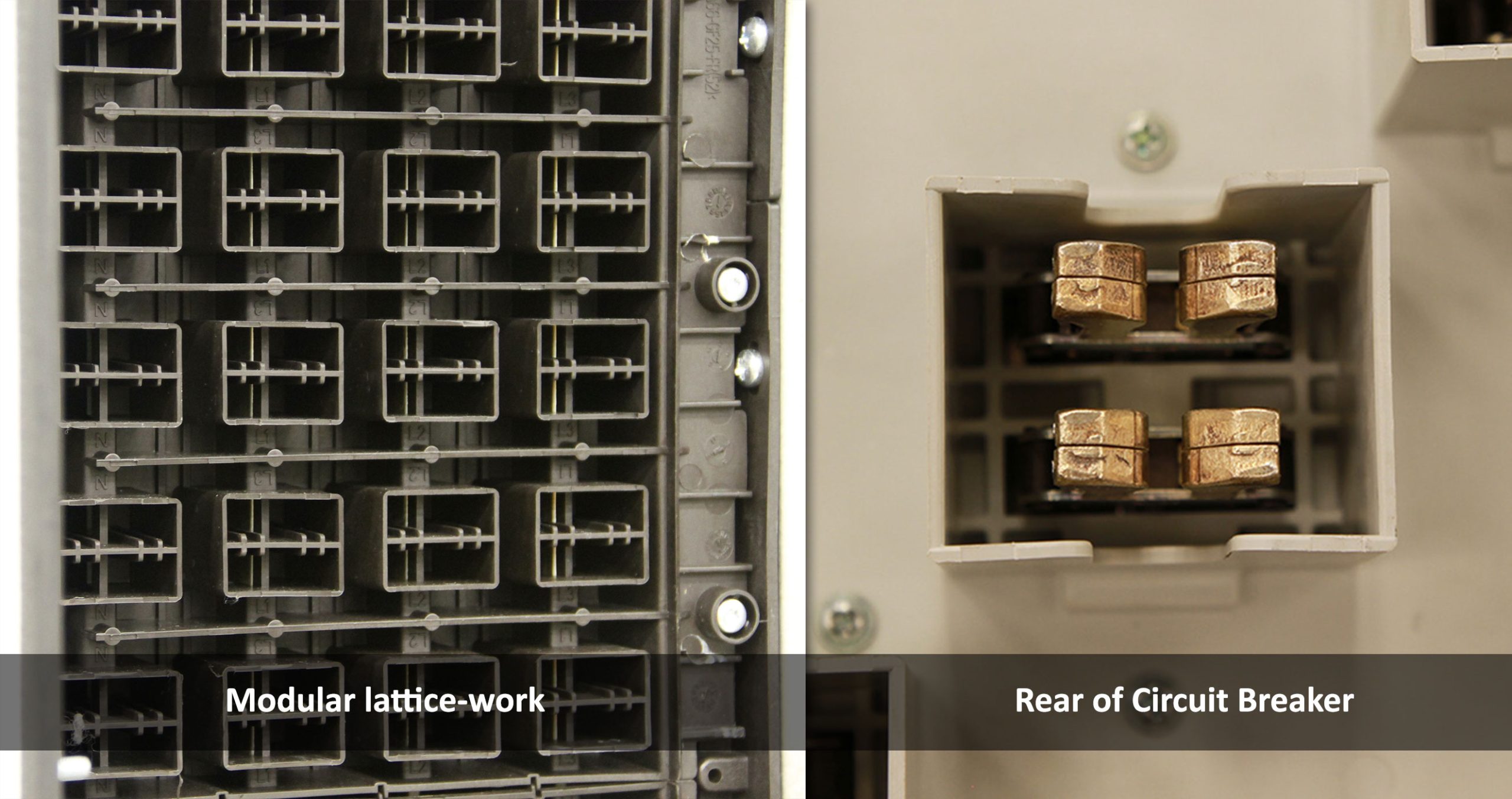

Web-enabled remote power panels built for branch circuit distribution, emphasizing operator safety and coordinated protection. SafePanel technology encloses breaker connections in a finger-safe recessed well with an Arc-Free Zone to help maximize operator safety.

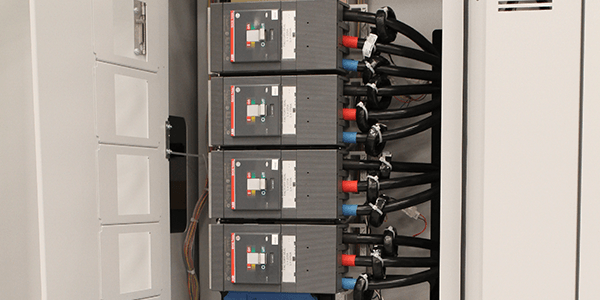

Web-enabled remote distribution panels built for subfeed distribution. Subfeeds support scalability and help isolate faults so an issue in one subfeed does not impact others—supporting system resilience and uptime.
Quick answers for data centers, AI infrastructure, semiconductor fabs, and other mission-critical environments.
It’s the protected delivery of electrical power designed to minimize downtime risk. It combines circuit protection, safe service access, and visibility (monitoring/event capture) so teams can maintain uptime and respond quickly to disturbances.
An RPP typically focuses on branch circuit distribution and coordinated protection. An RDP typically uses subfeed distribution, which supports scalability and helps isolate faults by section.
Finger-safe distribution approaches are designed to reduce exposure during inspection and breaker additions, supporting safer work practices in energized environments.
Remote visibility into metering, alarms, and event diagnostics (including waveform capture and ITIC plotting) supports faster troubleshooting and reduces uncertainty during incident response.
It depends on your topology, growth plan, and how you want to segment distribution. Branch distribution is common for row-level circuits, while subfeed distribution is often used to segment larger distribution blocks with strong fault isolation. LayerZero engineers can help confirm the right approach for your architecture.
Protected distribution with visibility and segmentation to support uptime and disciplined operations.
Scalable distribution and monitoring to support dense compute loads and fast growth cycles.
Stable distribution and event diagnostics to support sensitive processes and uptime requirements.
Visibility into power conditions and safer service workflows for uptime-focused environments.
LayerZero power panels emphasize safer inspection and service workflows with finger-safe distribution approaches designed to reduce exposure during breaker work and routine inspection.
Whether you choose branch distribution (RPP) or subfeed distribution (RDP), segmenting distribution helps contain faults, simplify isolation, and reduce disruption to unaffected loads.
Web-enabled visibility into alarms, diagnostics, waveform capture, and ITIC plotting supports faster troubleshooting and more confident incident response.
Facilities evolve fast. LayerZero power panels support expansion strategies that help teams add distribution and capacity safely as demand increases.
Talk to LayerZero engineers about selecting an RPP or RDP architecture for your next critical facility build or retrofit.

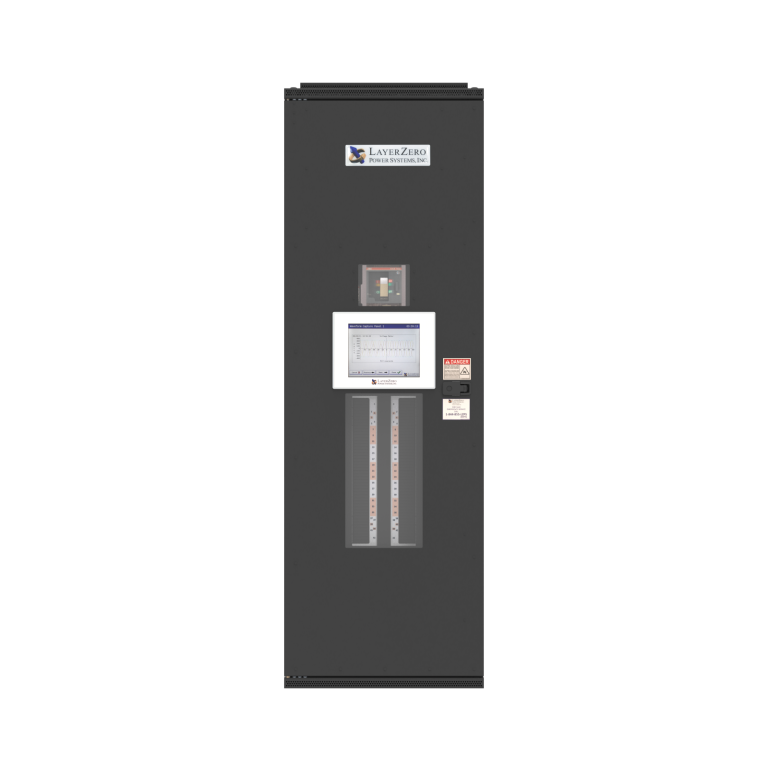

The LayerZero ePanel SL-1 is a web-enabled remote power panel (eRPP) that delivers reliable, space-efficient power distribution with 42-circuit SafePanel design. Built for high-density applications, it supports selective trip coordination and enhance safety features to provide dependable power management for data centers and industrial environments.

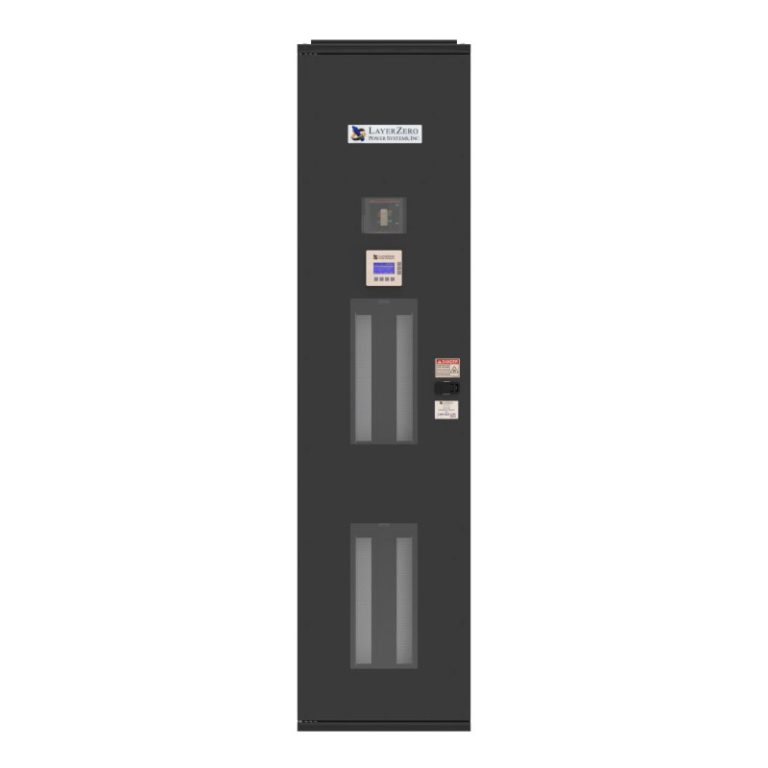

The LayerZero ePanel SL2 is a web-enabled remote power panel with 84 SafePanel® circuits, delivering reliable, high-density power with selective trip coordination and built-in safety features in a compact, wall-mounted design.
The LayerZero ePanel-2 is a web-enabled remote power panel (eRPP) with 42-circuit SafePanel® distribution in a compact, wall-mounted design. With a SIMO configuration, selective trip coordination, and built-in safety features, it delivers reliable, efficient power for data centers and industrial applications.

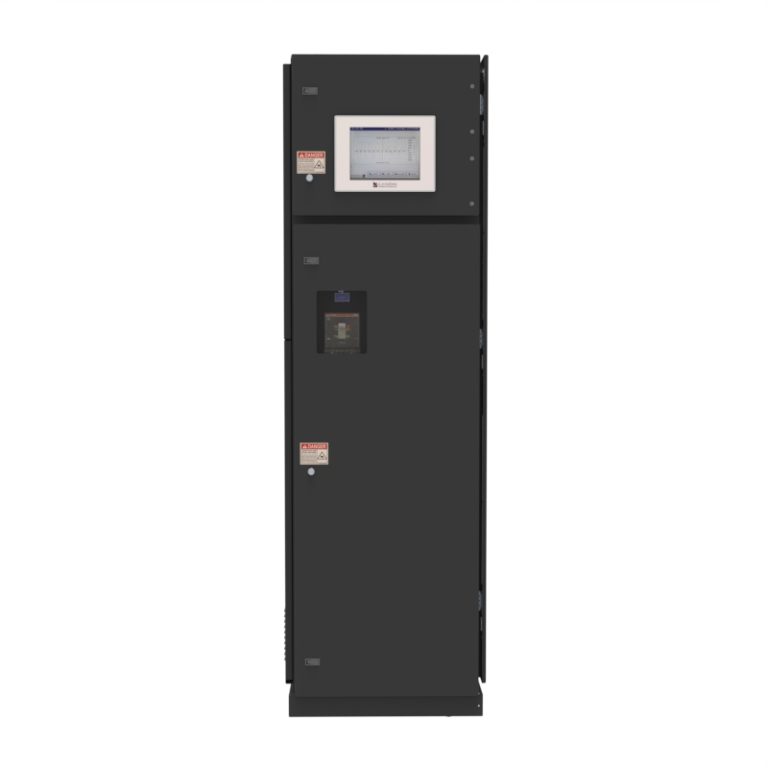

The LayerZero eRPP-FSL is a web-enabled remote power panel that delivers high density, reliable power with 42 SafePanel® circuits, selective trip coordination, and built-in safety features for secure, space-saving distribution.

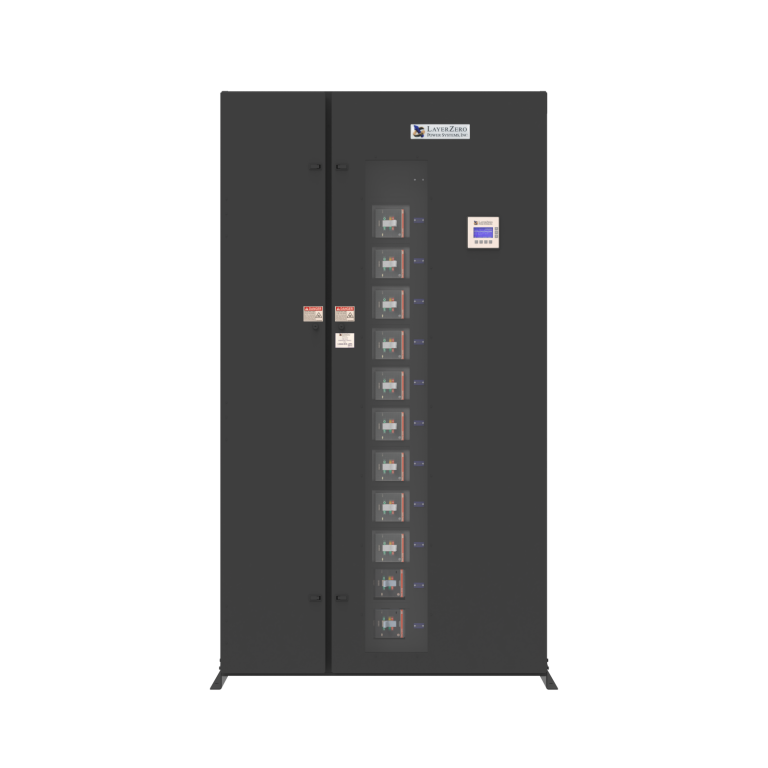

The LayerZero eRDP is a web-enabled remote distribution panel with multiple inputs and outputs, supporting finger-safe and standard breakers. Featuring SafePanel®, dead-front doors, and no exposed live parts, it delivers safe, reliable, and space-efficient power distribution.

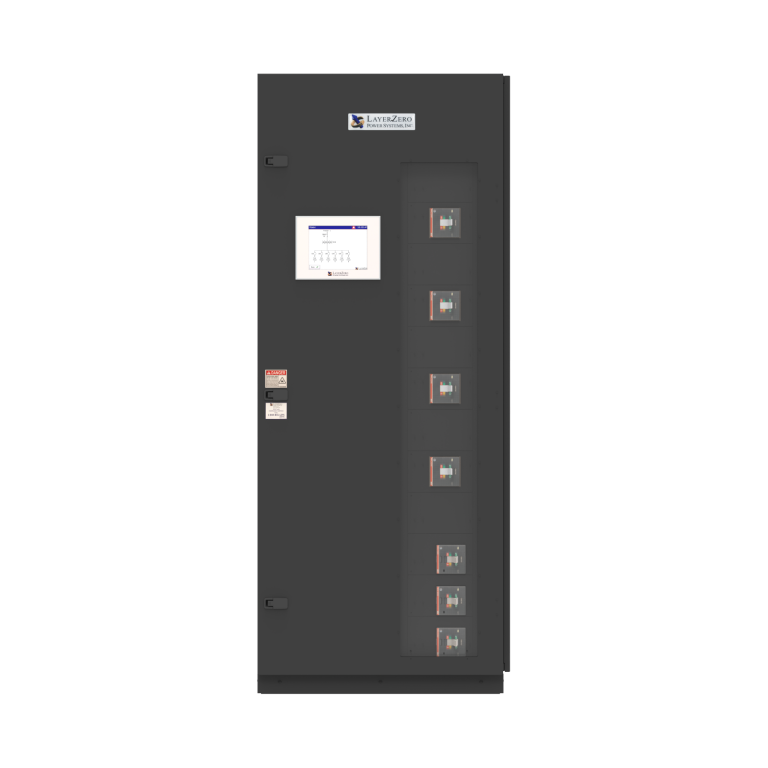

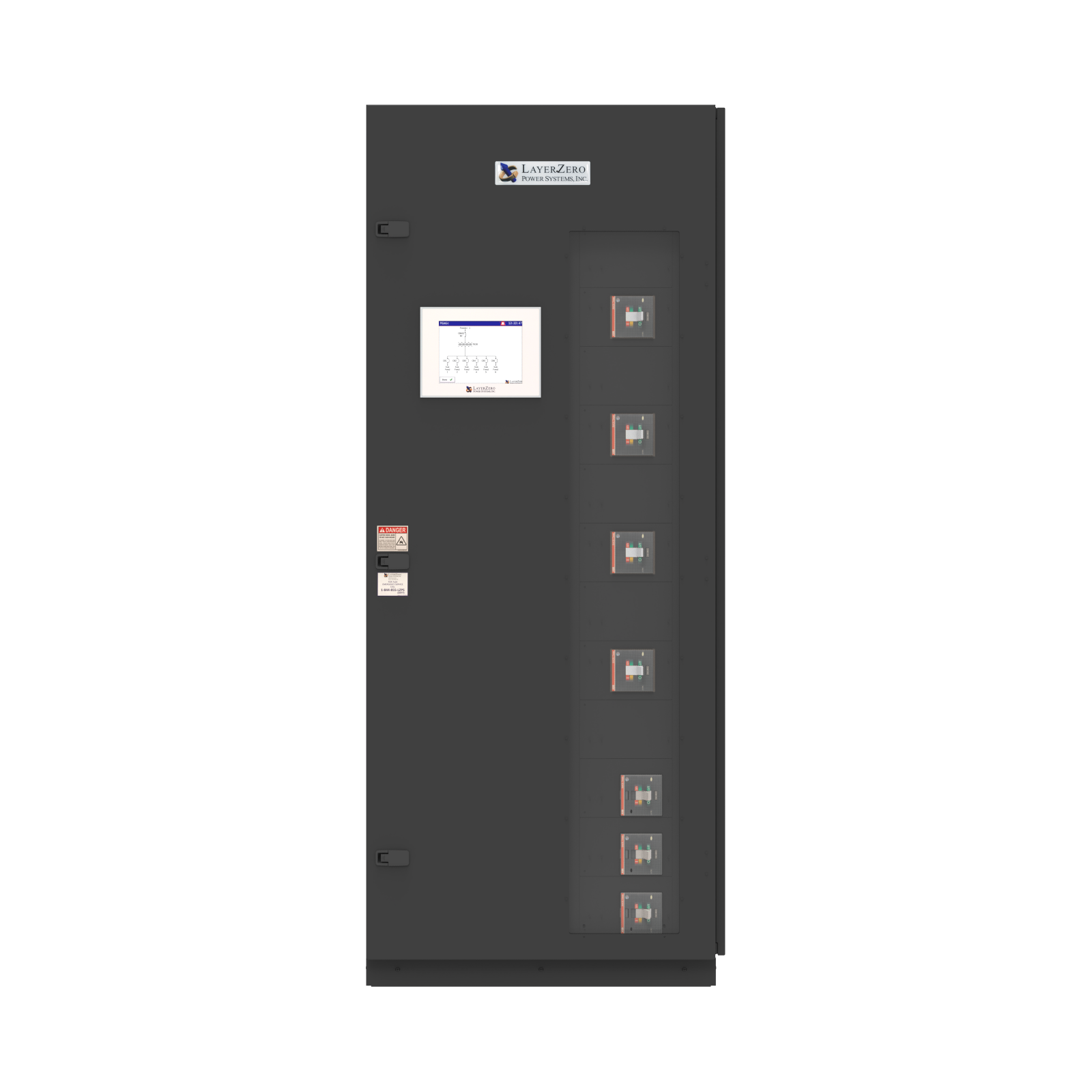

The LayerZero eRDP-FS is a web-enabled remote distribution panel delivering reliable, high-density power from multiple inputs to multiple outputs, with SafePanel® design, dead-front doors, and finger-safe breakers for secure, space-efficient operation.

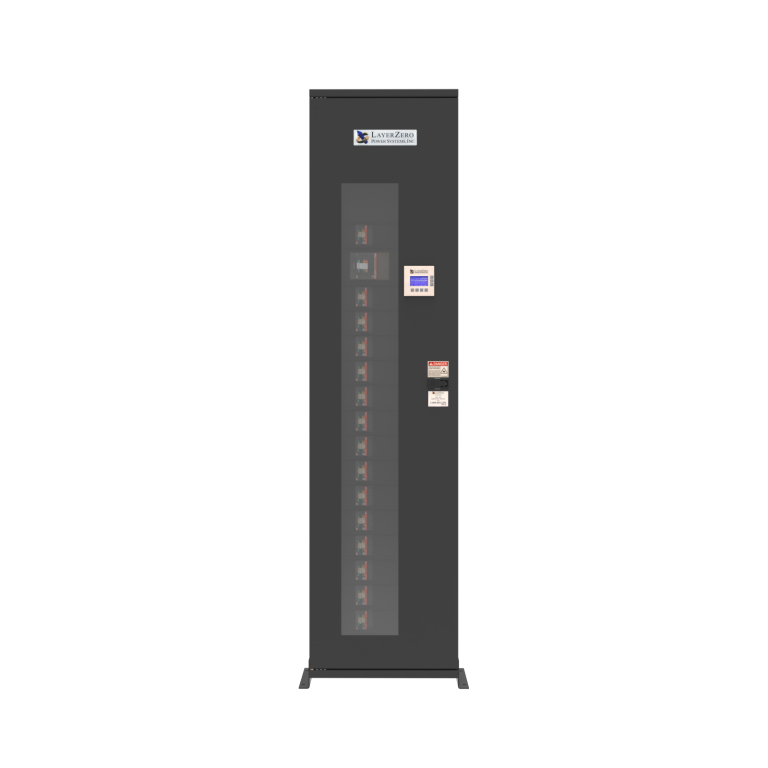

The LayerZero ePanel-HD1 is a web-enabled remote power panel providing reliable, single-input, multi-output power distribution. With SafePanel® circuits and built-in safety features, it delivers compact, efficient, and secure power management for high-demand applications.

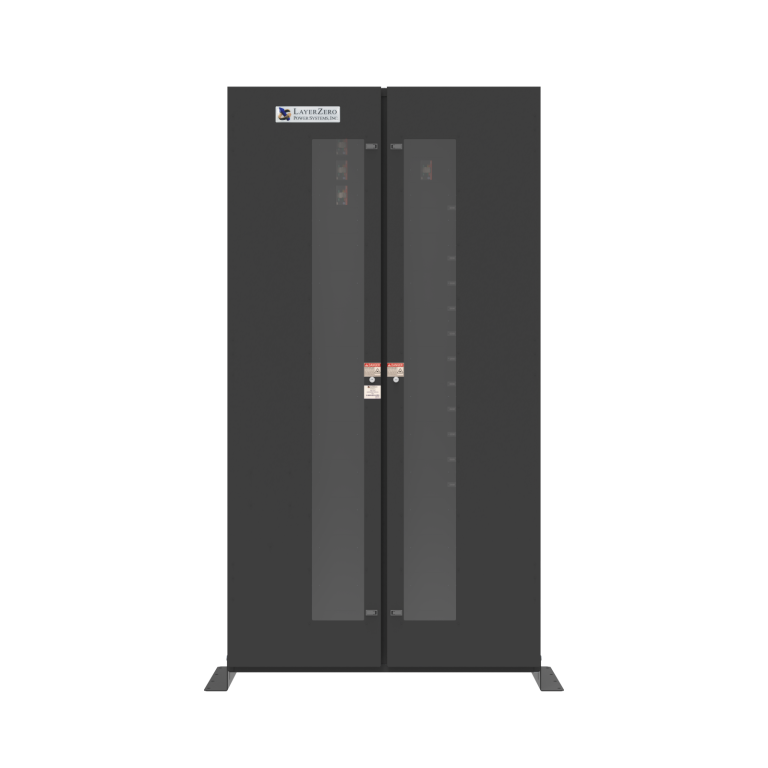

The LayerZero ePanel-HD2 is a web-enabled remote power panel (eRPP) that delivers high-reliability subfeed distribution in a compact, wall-mounted design. With a SIMO configuration and built-in safety features like SafePanel® distribution and no exposed live parts, it provides safe, efficient power for data centers and industrial applications.
| Product Model | Current (A) | Voltage | # Poles | Height (in / mm) | Width (in / mm) | Depth (in / mm) | Weight (lb / kg) |
|---|---|---|---|---|---|---|---|
| ePanel SL-1 | 400 | 120/208 | 3 | 71 (1803 mm) | 23.5 (597 mm) | 12 (305 mm) | 340 (154.2 kg) |
| ePanel SL-2 | 400 | 120/208 | 3 | 93 (2362 mm) | 23.25 (591 mm) | 12 (305 mm) | 550 (249.5 kg) |
| ePanel-2 | 400 | 120/208 | 3 | 80 (2032 mm) | 47 (1194 mm) | 10.5 (267 mm) | 550 (249.5 kg) |
| eRPP-FSL | 400 | 120/208 | 3 | 80 (2032 mm) | 24 (610 mm) | 24 (610 mm) | 500 (226.8 kg) |
| eRDP | 1200 | 120/208 | 3 | 87 (2210 mm) | 44 (1118 mm) | 18 (457 mm) | 1082 (490.8 kg) |
| eRDP-FS | 1200 | 120/208 | 3 | 88 (2235 mm) | 36 (914 mm) | 36 (914 mm) | 674 (305.7 kg) |
| ePanel-HD1 | 1600 | 480 | 3 | 91 (2311 mm) | 24 (610 mm) | 13 (330 mm) | 450 (204.1 kg) |
| ePanel-HD2 | 1600 | 240/415 | 3 | 90 (2286 mm) | 54 (1372 mm) | 21 (533 mm) | 550 (249.5 kg) |
